It should look like this when done

Note: In this photos it is sitting on the pallet upside down

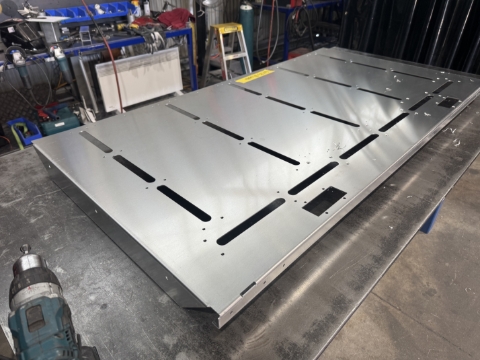

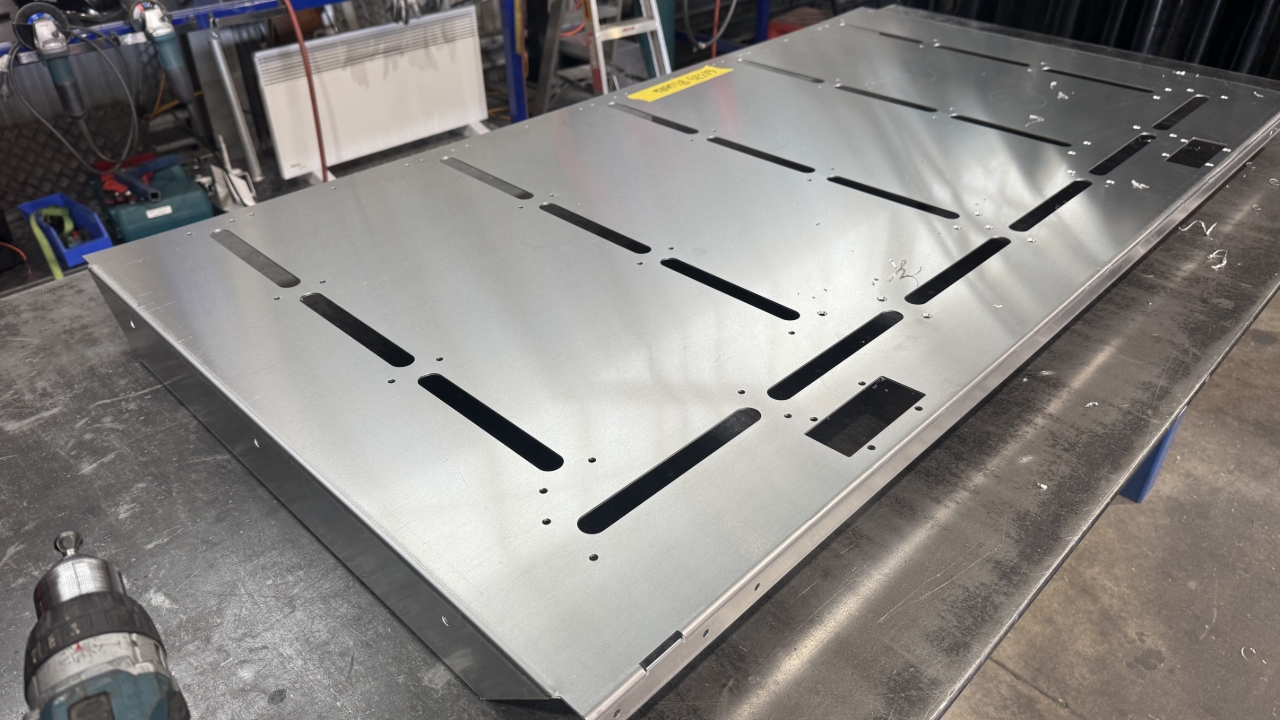

Start with a floor piece. There are 2 x identical pieces.

1200mm Canopy, Part #:...............

Dual Cab, Part #:...............

Countersink all holes from top side

Pro Tip:

Hold the drill on, and move from hole to hole.

An equal amount of pressure will countersink to the same depth

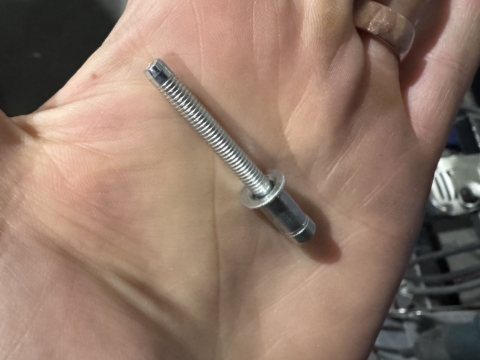

Get a countersunk rivet.

Note: This is not the standard Tray floor rivets. These are shorter.

Part #: ..............

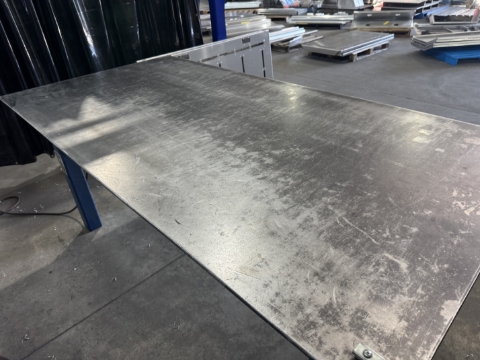

Clean off your workbench

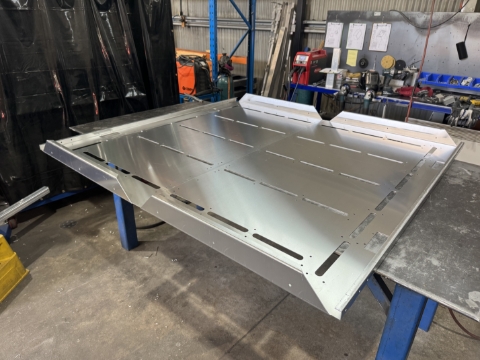

Put the 2 x floor pieces together like this

1200mm Canopy, Part #:...............

Dual Cab, Part #:...............

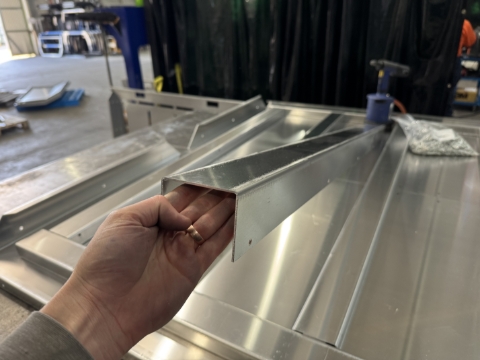

First, identify the outside Unistruts

Cut Lengths:

Boss 1200mm Canopy: ............mm

Boss Dual Cab Canopy: ............mm

Fit them with their retainer piece

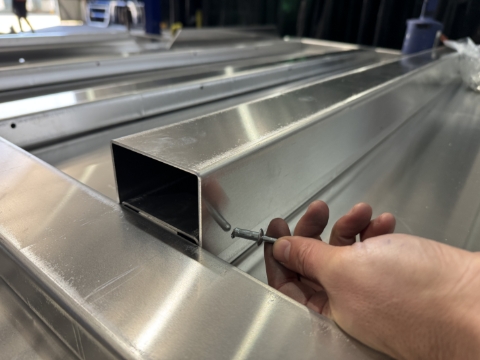

Hang it off the end of your workbench to get a couple rivets in each end.

Repeat this of the other side

Repeat for the side-to-side Unistruts

Cut Lengths:

1900 Wide Canopy: ...........mm

2000 Wide Canopy: ...........mm

2100 Wide Canopy: ...........mm

It will look like this with the Unistruts laid in place

Add the folded retainer pieces

120mm Canopy, Part #:...............

Dual Cab Part #:...............

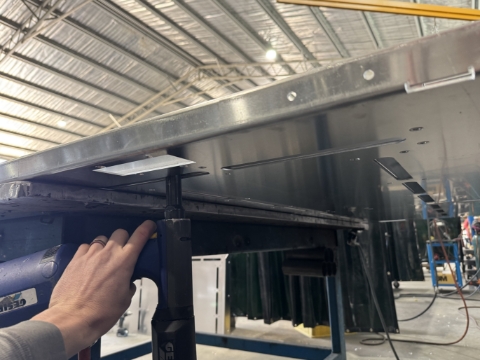

Get a couple rivets in from the underside.

Pro Tip:

Do enough so that it can be flipped over. The rest will be done from the top side.

Flip over

Do all other rivets

Get the recessed latch pieces, bend them by hand like this

Add them to the canopy floor

Part #:...............

Add the centre spine joiners

Part #:...............

It will now look like this
