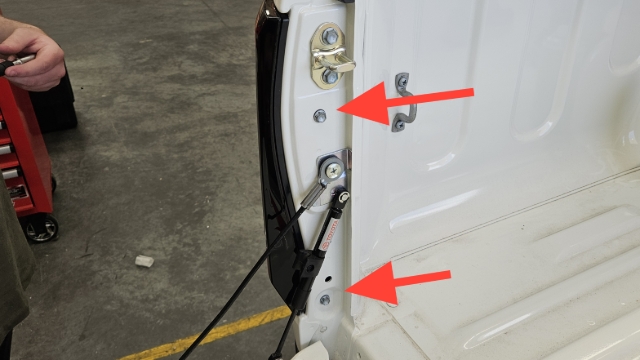

Using 10 mm socket, remove these two fasteners

Using a pry tool disconnect the retaining stud before pulling out the tail light assembly

Disconnect the connector

Repeat other side

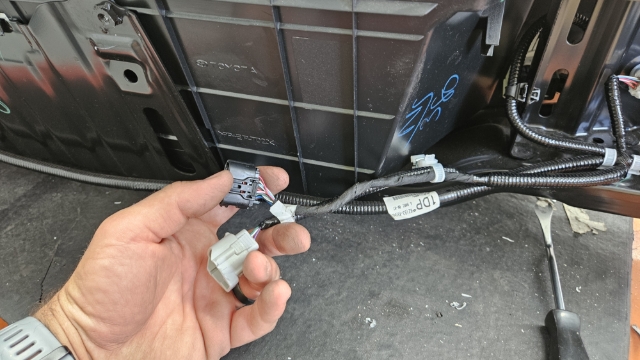

Disconnect electrical connectors from harness from underneath bumper

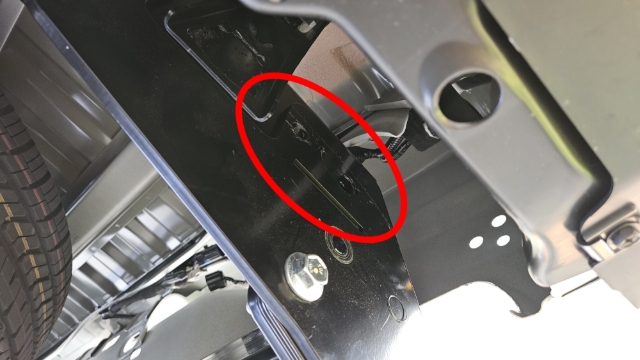

Remove the bumper fasteners with a 17 mm socket

H&S: Use a breaker bar and ensure you are pulling not pushing as these are significantly torqued

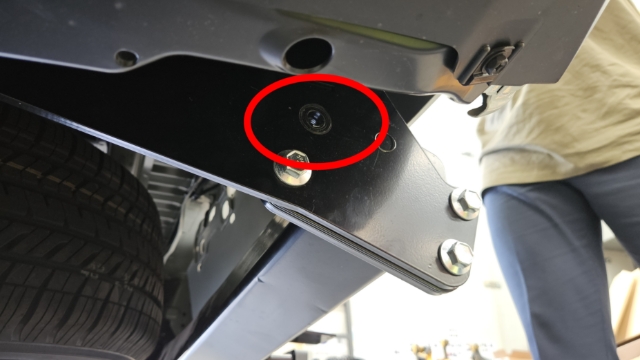

Shall a towbar already be fitted, remove the topmost fastener using a 17 mm socket

Remove bumper assembly down slightly and out

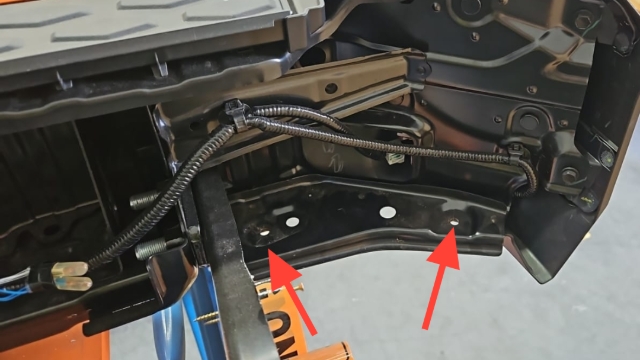

Place bumper onto work bench

Remove plastic lower clips with flat head screw driver

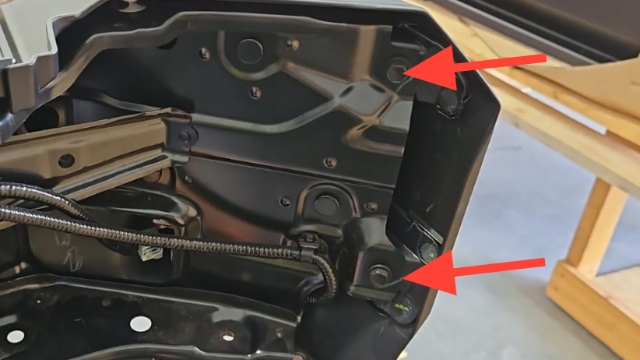

Unbolt the two outer hex bolts with a 10mm socket

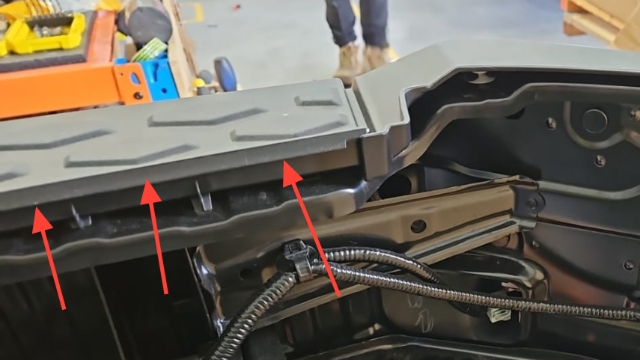

Use pry tool to carefully remove this capping from retaining clips

CQC: Do not force, these clips will likely break

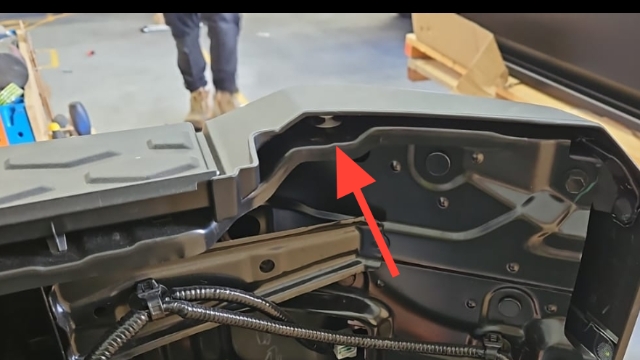

Jimmy plastic cap forward and slid off this retainer clip

Remove any other clips that I may have forgotten about 🫣🫣

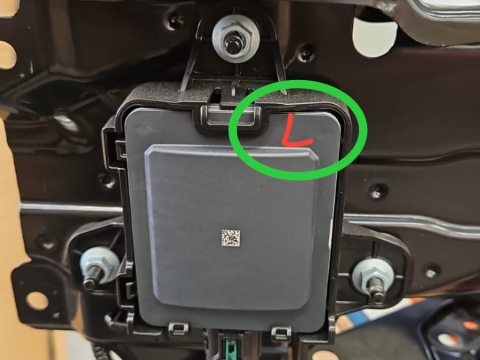

On plastic cover of radar, label with red marker or vivid L or R

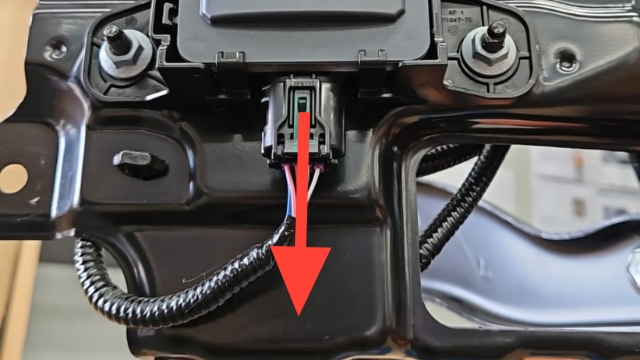

Disconnect radar sensor connector

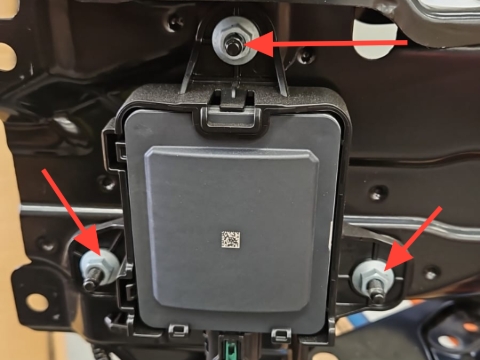

Use a 10mm socket to remove all three radar housing fasteners

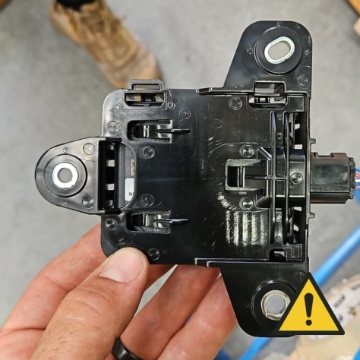

CQC: Extreme caution required with radar sensors to not damage

Do not drop

Do not mix L & R

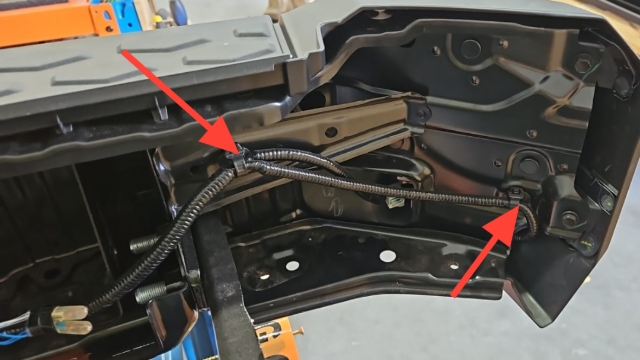

Remove fir tree points from bumper

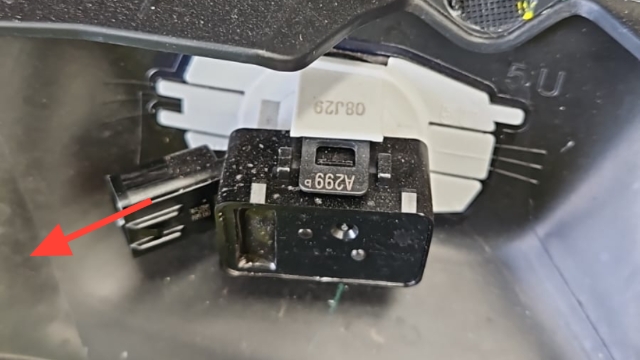

Remove reverse sensor connectors

CQC: Use extreme caution with removal

Use pry tool or flat screw driver to help depress connector

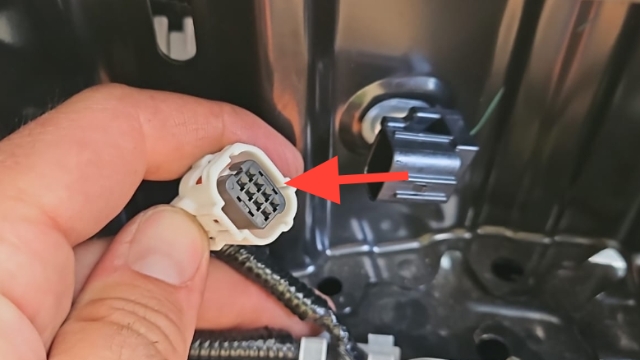

Remove reverse sensor connectors

CQC: Use extreme caution with removal

Use pry tool or flat screw driver to help depress connector
