xWiring Prep, RAM
This is made in house by Bronco, and supplied fitted to Tray
This is made in house by Bronco, and supplied fitted to Tray
1
Step 1 of 7

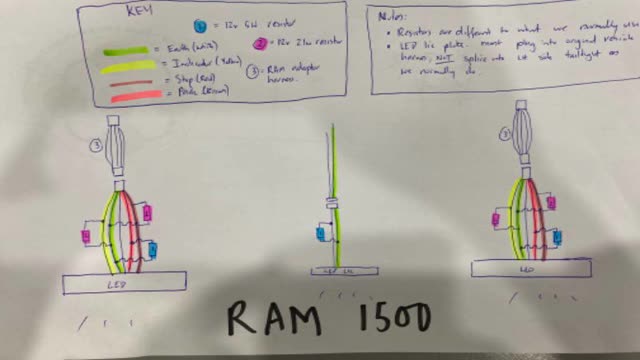

<p>Layout</p>

Layout

2
Step 2 of 7

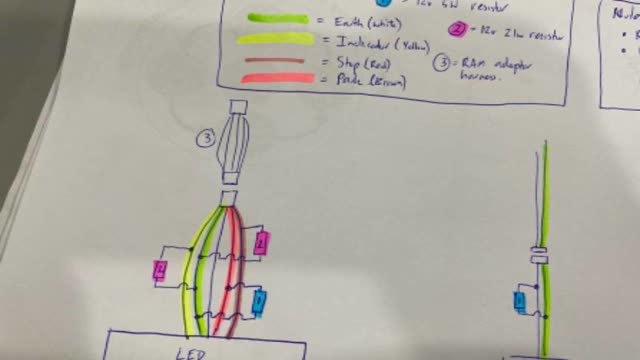

<p>Close up</p>

Close up

3
Step 3 of 7

Lead must have MALE end not FEMALE. This lead will plug into the Trays LED licence plate light

4
Step 4 of 7

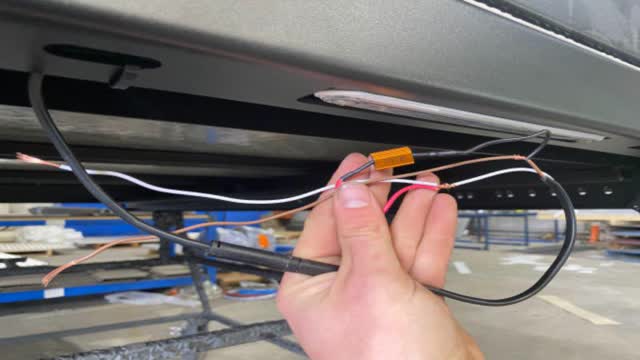

<p>12v 5w on lic plate harness</p>

12v 5w on lic plate harness

5
Step 5 of 7

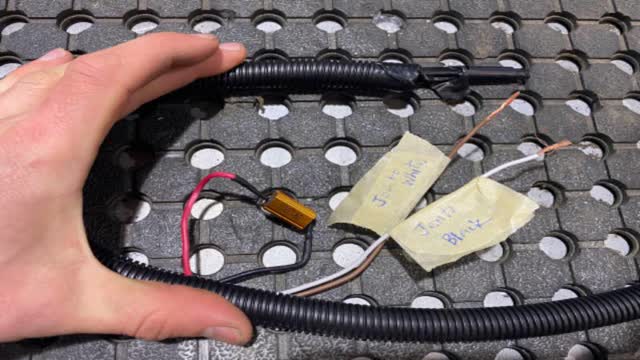

<p>Fit it with split conduit.</p> <p>Mark the brown wire “join to white”</p> <p>Mark the white wire “join your black”</p>

Fit it with split conduit.

Mark the brown wire “join to white”

Mark the white wire “join your black”

6
Step 6 of 7

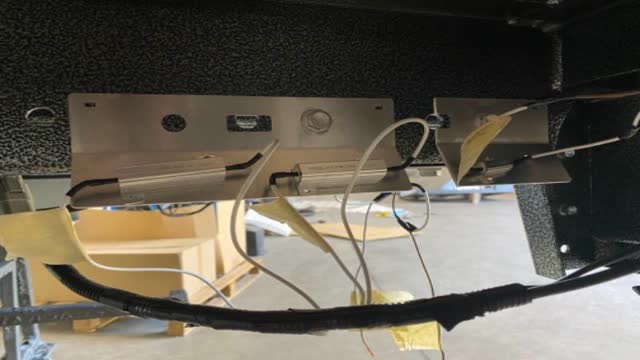

<p>Mount to tray</p>

Mount to tray

7
Step 7 of 7

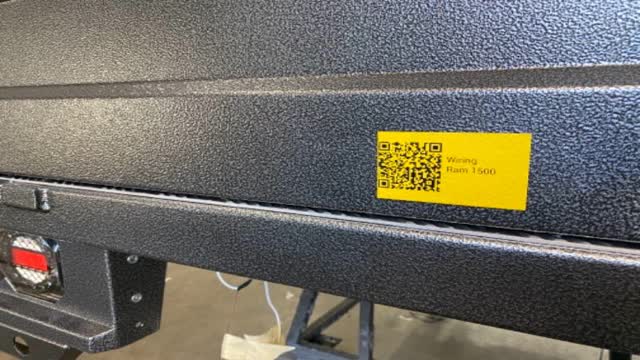

<p>Add sticker</p>

Add sticker
