CHASSIS MOUNTS, HILUX EC
1
Step 1 of 13
2
Step 2 of 13

​Contents (Click to view)

​STEP 3: Components List​

​STEP 7: Tools List​

​STEP 8: Torque Values​

​STEP 9: Chassis Diagram​

​STEP 10: Chassis Mounts​

​STEP 13: QA Sheet​

3
Step 3 of 13

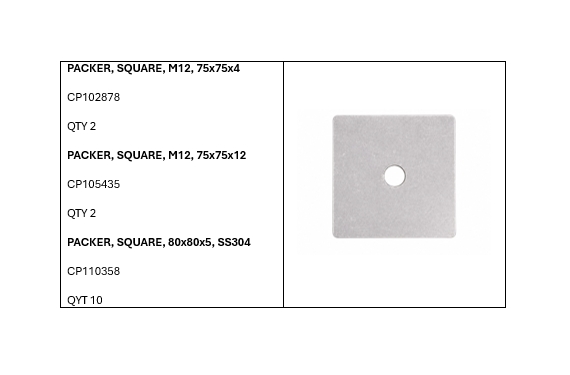

<p>Components List</p>

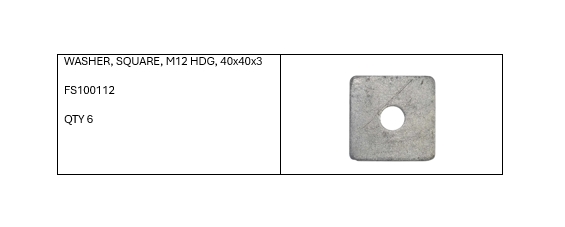

Components List

4
Step 4 of 13

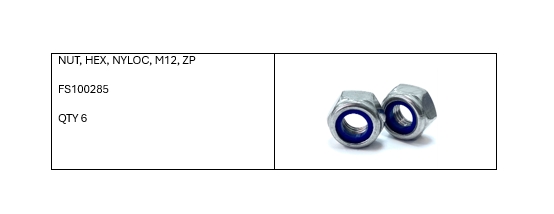

<p>Components List</p>

Components List

5
Step 5 of 13
<p>Components List</p>

Components List

6
Step 6 of 13

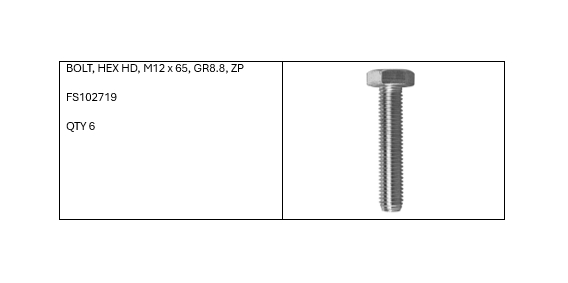

<p>Components List</p>

Components List

7
Step 7 of 13

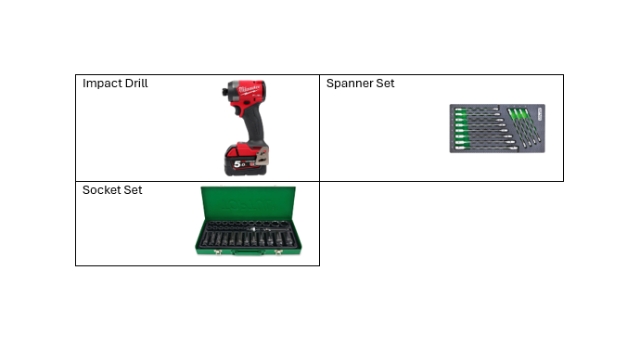

<p>Tools List</p>

Tools List

8
Step 8 of 13
<p>Torque Values</p>

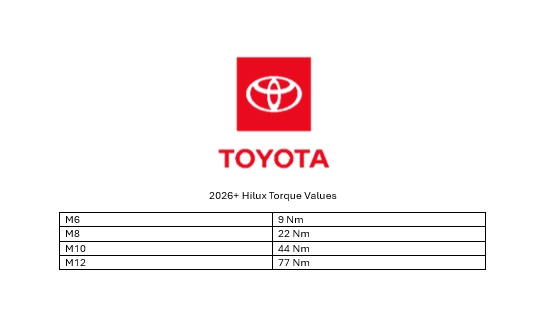

Torque Values

9
Step 9 of 13
<p>Chassis Diagram</p>

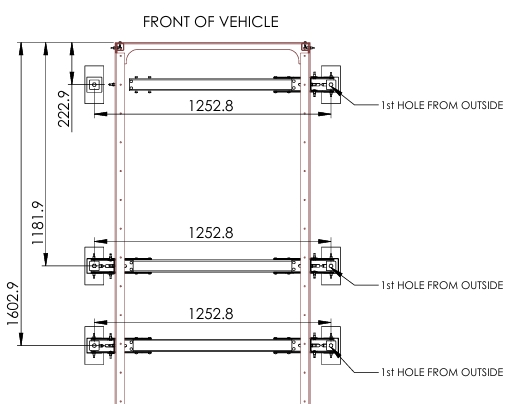

Chassis Diagram

10
Step 10 of 13

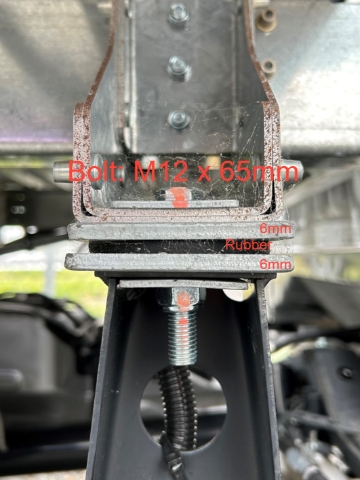

<p>Toyota Hilux EC Front</p><p>Distance to the front of chassis: 222.9mm</p><p>Bolt Hole: First hole from outside</p><p></p>

Toyota Hilux EC Front

Distance to the front of chassis: 222.9mm

Bolt Hole: First hole from outside

11
Step 11 of 13

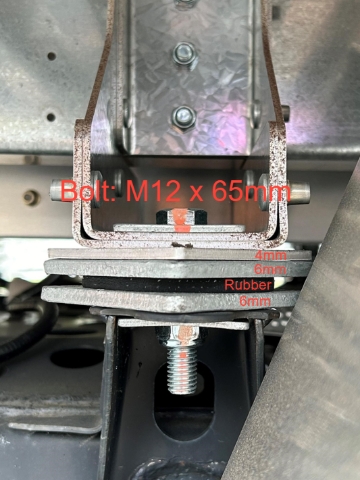

<p>Toyota Hilux EC Middle</p><p>Distance to the front of the chassis: 1181.9mm</p><p>Bolt hole: First hole from outside</p><p></p>

Toyota Hilux EC Middle

Distance to the front of the chassis: 1181.9mm

Bolt hole: First hole from outside

12
Step 12 of 13
<p>Toyota Hilux EC Back</p><p>Distance to the front of the chassis: 1602.9mm</p><p>Bolt Hole: First hole from outside</p>

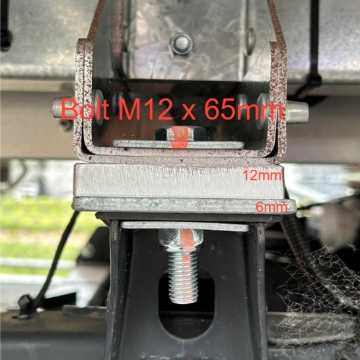

Toyota Hilux EC Back

Distance to the front of the chassis: 1602.9mm

Bolt Hole: First hole from outside

13
Step 13 of 13
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
