xRadar Remounting, RG DMax WITH Tub

Known to suit the 2022 model X-Terrain model. 2023+ X-Terrain requires a different bracket and radar holder.

Known to suit the 2022 model X-Terrain model. 2023+ X-Terrain requires a different bracket and radar holder.

1

Step 1 of 12

Suits the 2020-Present model

2

Step 2 of 12

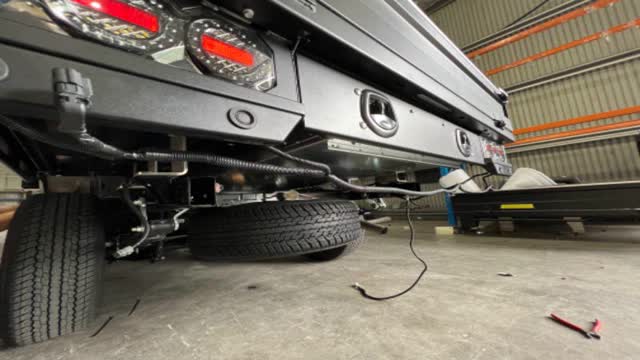

<p>If the Reversing Sensors have already been fitted, the vehicle will look similar to this.</p>

If the Reversing Sensors have already been fitted, the vehicle will look similar to this.

3

Step 3 of 12

Identify the Radar Units, which would have been removed from Tub "PT" is passenger side top

4

Step 4 of 12

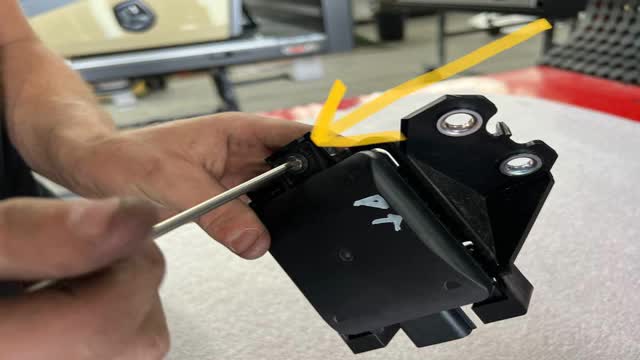

<p>T25 torx undo screw</p>

T25 torx undo screw

5

Step 5 of 12

Lift out radar unit

6

Step 6 of 12

Remove captive nut (it will simply slide off)

7

Step 7 of 12

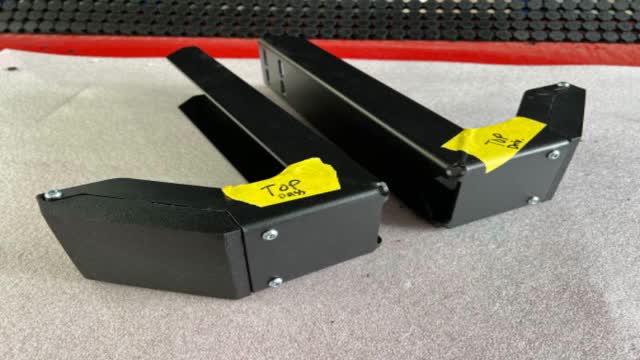

<p>Identify</p>

Identify

8

Step 8 of 12

Fit clip

9

Step 9 of 12

Fit radar T25 Torx Repeat for other side

10

Step 10 of 12

Fit bracket

11

Step 11 of 12

The angle of the bracket should be parallel with the vehicle chassis

12

Step 12 of 12

Above are Working correctly. Notice that the mirror light flashed when the truck is in the blind spot
