C- MK4 Central locking connection to the body

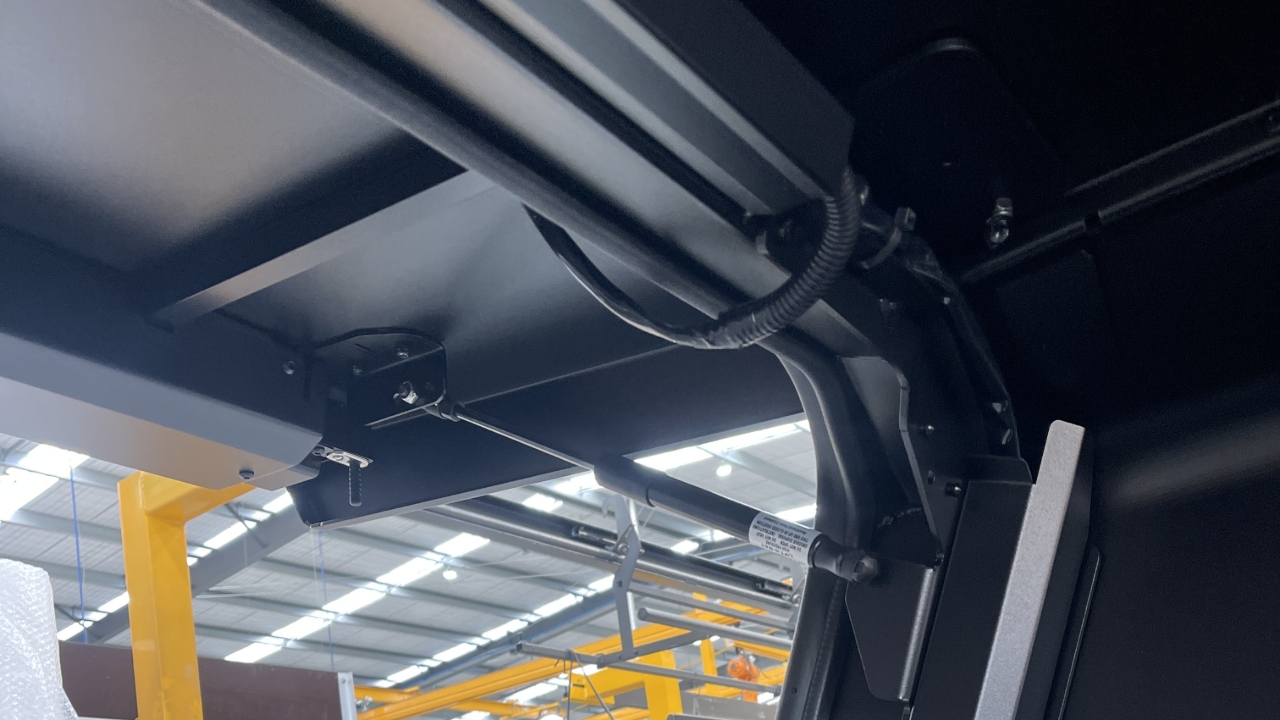

How to connect canopy central locking wires from the doors to the body.
How to connect canopy central locking wires from the doors to the body.
1
Step 1 of 6

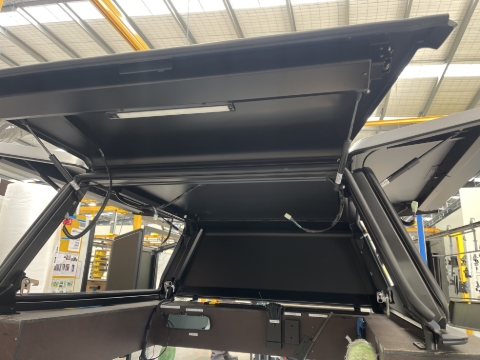

<p>All doors are open before connecting the central locking.</p>

All doors are open before connecting the central locking.

2
Step 2 of 6

Connect the 3 terminals.

3
Step 3 of 6

While arranging the wires in place put the cable tray cover for each side.

4
Step 4 of 6

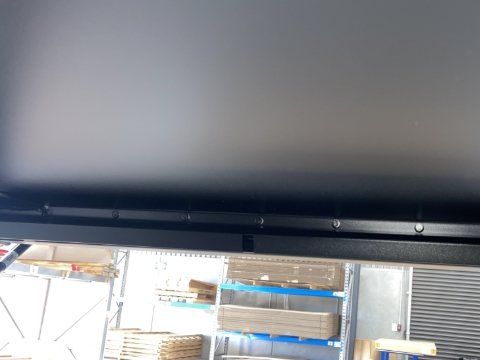

<p>For rear door cable tray cover they are split in two for future accessories like rear camera, and high stop light.</p>

For rear door cable tray cover they are split in two for future accessories like rear camera, and high stop light.

5
Step 5 of 6

Make sure the connection is not in tension and give allowance needed as shown.

6
Step 6 of 6

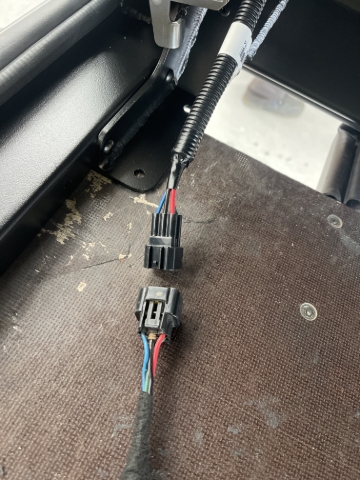

<p>Then connect the testing terminal for later led light testing and central locking.</p>

Then connect the testing terminal for later led light testing and central locking.
