Archer Beam (Raising and Lowering)

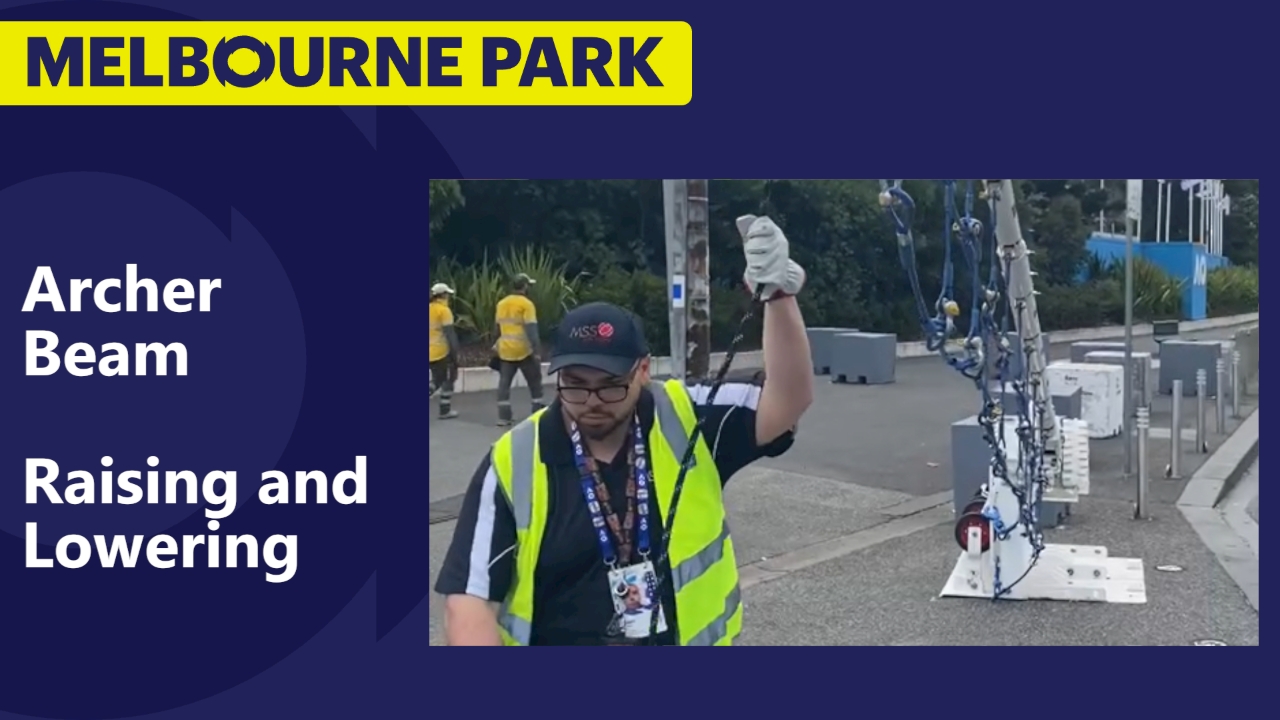

This provides an overview of how to raise and lower the Archer Beam Hostile Vehicle Gate.

This provides an overview of how to raise and lower the Archer Beam Hostile Vehicle Gate.

1

Step 1 of 7

Prepare

Before you start, make sure you are wearing riggers gloves.

2

Step 2 of 7

Release Cable

Push down on the lower lever and rotate to release the blue cable.

Clear cable of locking mechanism.

Turn the lever back to its home location when the ropes are clear.

3

Step 3 of 7

Release Beam

While holding the beam in place slide back the holding pin to release the beam.

Grab the rope to control the gate opening.

4

Step 4 of 7

Raise Gate

Hold onto the guide rope and slowly walk towards the other side of the gate allowing it to rise in a controlled manner.

5

Step 5 of 7

Lower Gate

Slowly pull the rope downwards as you walk across the opening.

Grab onto the top of the beam once it is all the way down.

6

Step 6 of 7

Lock Beam

Push beam down into locked position.

Slide the holding pin back in place.

7

Step 7 of 7

Lock Cable

Push down on lower lever and rotate open.

Replace blue cable inside lock.

Rotate to lock cable in place.
