Remove the hold down handles from each corner of the wellside.

Remove each of the 4 bolts that fasten the tub liner to the wellside.

Apply loctite to the bolts of the handles

Pull the tub liner away from the wellside at each corner

Drill a hole in the shown location of the liner and cut a small notch out.

Slide the rear hold down bracket down behind the liner ensuring it sits correctly in the notch you have just cut.

Bolt the handle back into the wellside yet do not fasten the bolts.

Install the bolt you removed back through the top of the liner and hold down bracket.

Ensure you keep the brackets semi loose at this point.

Bolts required 8x30 with springs and flats

Repeat process on the other rear hold down bracket

Dry fit where you front hold down brackets are going to slot through the tub liner and mark.

Cut out a slot where you have marked and ensure the hold down bracket fits.

Through the cut out, access the brackets at the front corners behind the tub liner.

Begin removing these brackets

Remove the brackets from behind the tub liner

Bolt the front hold down bracket through where you have just removed the bracket from with M8x25 hex heads with flat and spring washers.

Keep the mounts loose.

Bolt the top of the hold down bracket with an M8x25 button head with a flat and spring washer.

Repeat with the front mount on the other side.

Apply plastic cover to cab to prevent canopy wiring rubbing on vehicle

Lift your canopy onto the wellside.

Bolt the Artemis to the brackets using M8x20 button heads with nylocs.

Begin fastening the hold down bracket mounts to the wellside.

Ensure your tub liner sits back in place under the rubber seals.

Use a heat gun to reshape the liner if need be.

Fasten the bolts that mount the Artemis to the brackets.

Fasten the centre mounts together using M8x20 and nylocs with x2 washers inbetween.

Drill an 8mm hole through the centre mount and wellside.

Bolt the centre mount to the wellside using M8x20 with a nyloc.

Remove the washers and refasten the Artemis to the centre mounts.

Sequence of bolting should be sides of all brackets first then then the top of brackets front, rear, center

Run 12 pin plug between the cab and canopy connecting at the bottom of the vehicle cable tie

Ensure to avoid any rubbing of wires and sharp edges

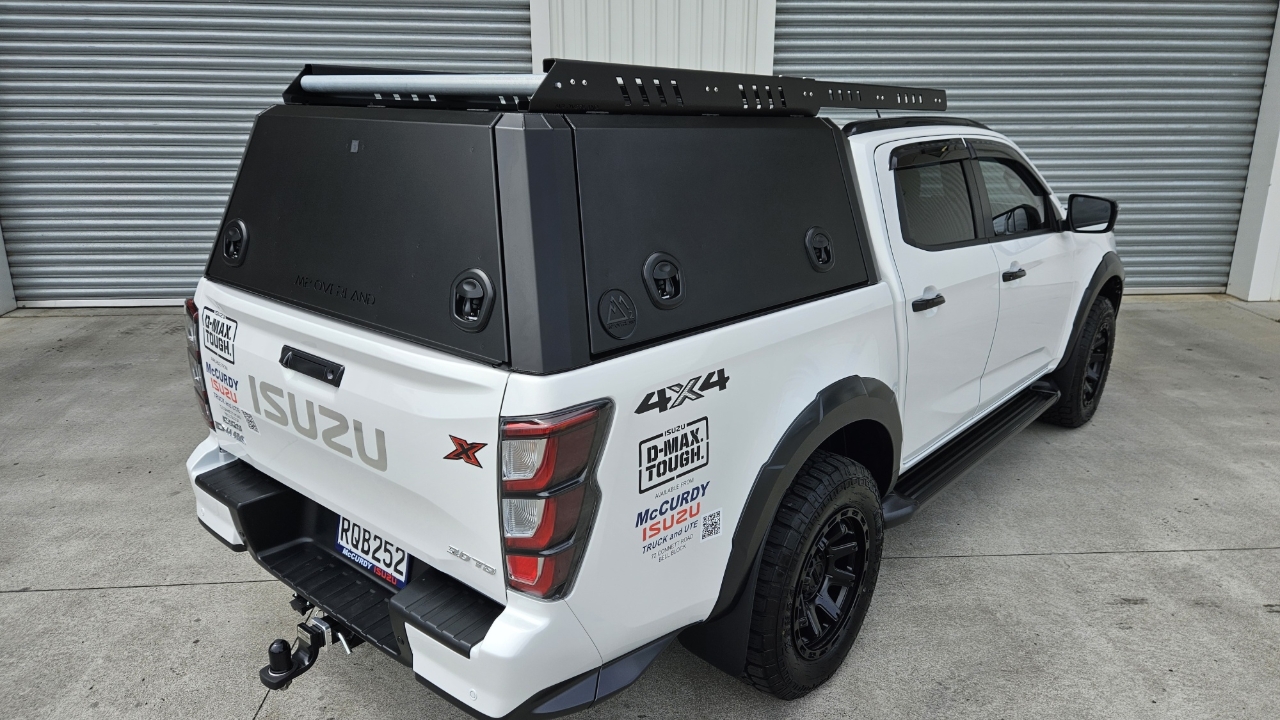

Final result

Canopy should be aligned to the vehicle with equal spacing on either side

with sufficient spacing between canopy and cab
