xRe-Fit Revering Sensors: RAM, DS Model, 1500 "Standard"

Knowby

xRe-Fit Revering Sensors: RAM, DS Model, 1500 "Standard"

1

Step 1 of 10

Harness Extension Required: For the 5'7" Tub, only width extension is required For the 6'4" Tub, both width and length extension is required

2

Step 2 of 10

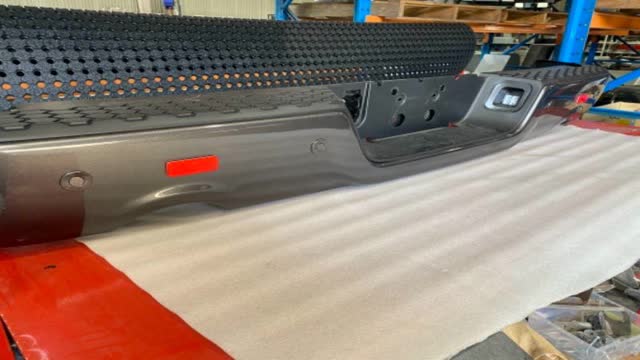

<p>Lay the bumper on a bench, with a blanket or foam under it.</p>

Lay the bumper on a bench, with a blanket or foam under it.

3

Step 3 of 10

Remove harness from bumper.

A flat head screwdriver is best to pry the sensor holder apart.

4

Step 4 of 10

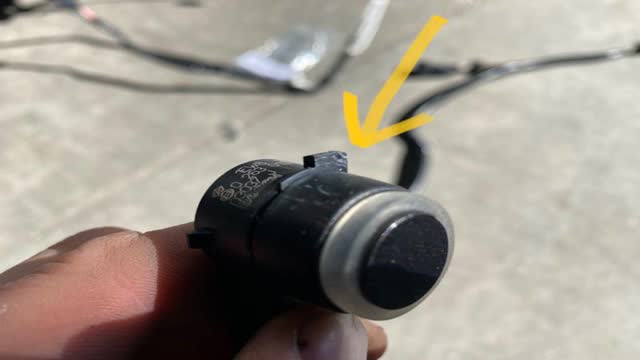

<p>Identify the RAM sensors. They will have a small tab on them</p>

Identify the RAM sensors. They will have a small tab on them

5

Step 5 of 10

<p>Use a grinder to remove this tab</p>

Use a grinder to remove this tab

6

Step 6 of 10

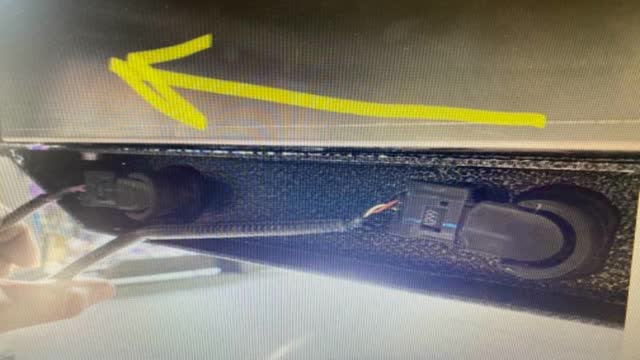

<p>Fit the sensors to Tray, make the harness face the centre of the vehicle</p>

Fit the sensors to Tray, make the harness face the centre of the vehicle

7

Step 7 of 10

Length of Extend Harness: Cut Extend Solder Insulate

8

Step 8 of 10

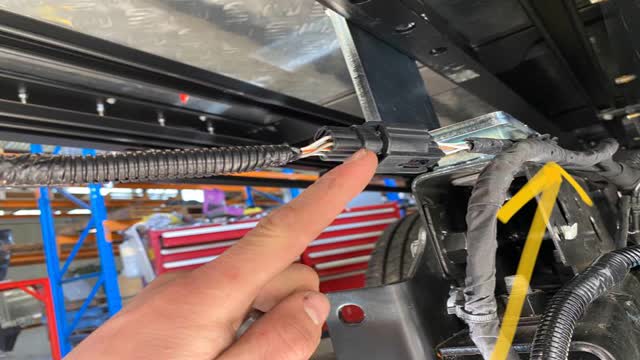

<p>Plug in the sensor harness to vehicle.</p>
<p>TIP: So that the harness can reach, it is necessary to cut some of the zip ties holding the vehicle harness to the vehicle chassis - by doing this the harness can come back further.</p>

Plug in the sensor harness to vehicle.

TIP: So that the harness can reach, it is necessary to cut some of the zip ties holding the vehicle harness to the vehicle chassis - by doing this the harness can come back further.

9

Step 9 of 10

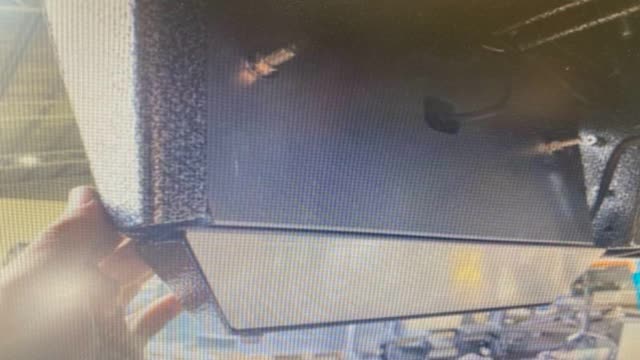

<p>Fit the protector brackets</p>

Fit the protector brackets

10

Step 10 of 10

With second person check sensors work.

When put in reverse, sensors should beep if there is something near them.
