Re-Fit Reversing Sensors: Silverado MY22+
1
Step 1 of 15

We are removing both the sensor and the radar harness from the original rear bumper. All of this will be re-fitted

2
Step 2 of 15
<p><strong>Tools Required</strong></p> <ul> <li>Wire Cutters</li> <li>M7 Socket</li> <li>Torx Bit, T20</li> <li>Marking Pen</li> </ul>

Tools Required

  • Wire Cutters
  • M7 Socket
  • Torx Bit, T20
  • Marking Pen
3
Step 3 of 15

Cut the plastic clips which hold the harness to the rear bumper

4
Step 4 of 15

With your thumb spread the sensor holder apart. The sensor will pop out.

5
Step 5 of 15

Twist 90° to remove the license plate lights

6
Step 6 of 15

M7 socket to remove the radars

7
Step 7 of 15

Mark them “D” for drivers side or “P” for passengers.

8
Step 8 of 15

Torx T20, remove the screw holding the radar unit to the plastic bracket

9
Step 9 of 15

remove the harness from the bumper

10
Step 10 of 15

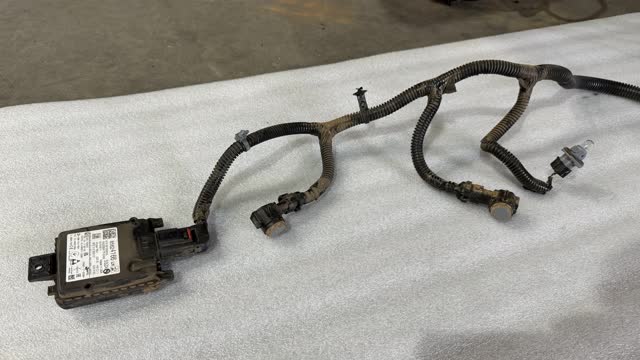

<p>Lay the harness out behind the vehicle</p>

Lay the harness out behind the vehicle

11
Step 11 of 15

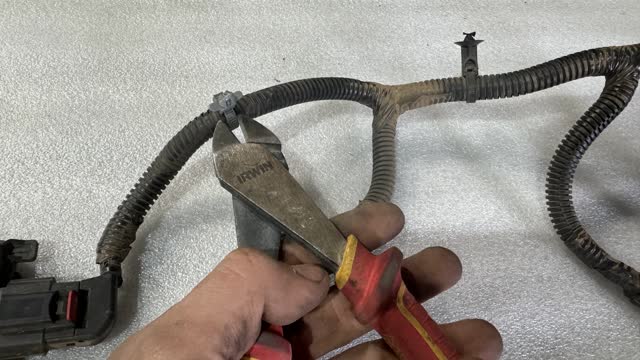

<p>Trim the excess clips from the harness</p>

Trim the excess clips from the harness

12
Step 12 of 15

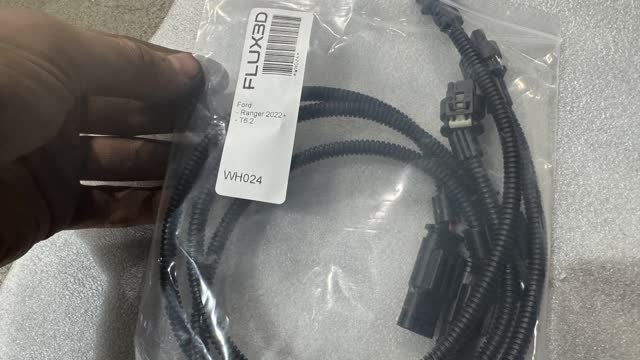

<p>Identify the pack of reversing sensor extensions. Part number is WH024.</p>

Identify the pack of reversing sensor extensions. Part number is WH024.

13
Step 13 of 15

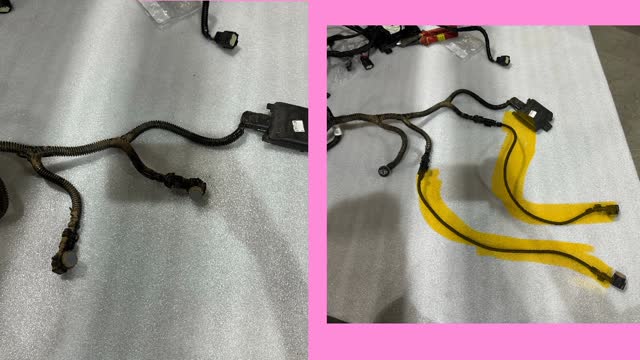

<p>The right hand side photo shows the reversing sensor harness after the sensor extensions have been added</p>

The right hand side photo shows the reversing sensor harness after the sensor extensions have been added

14
Step 14 of 15

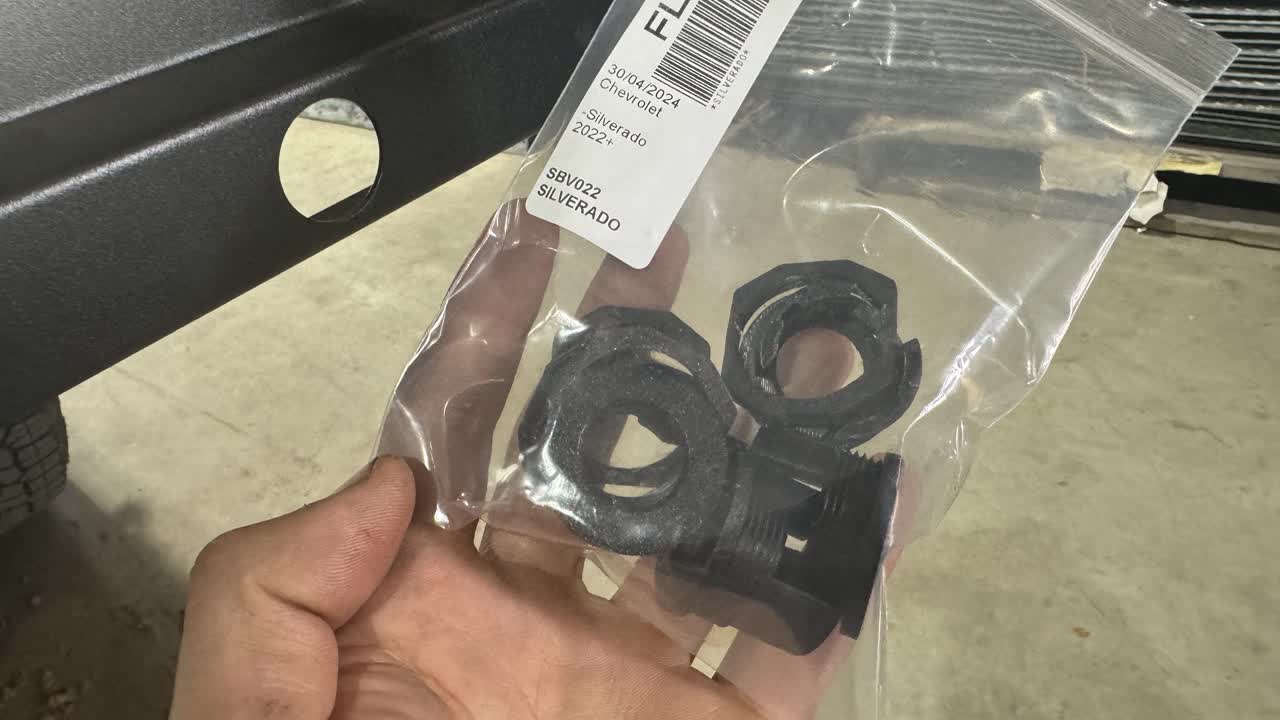

Fit the sensors to the tray

15
Step 15 of 15

With a second person, put the vehicle into reverse and check that the sensors are activating correctly
