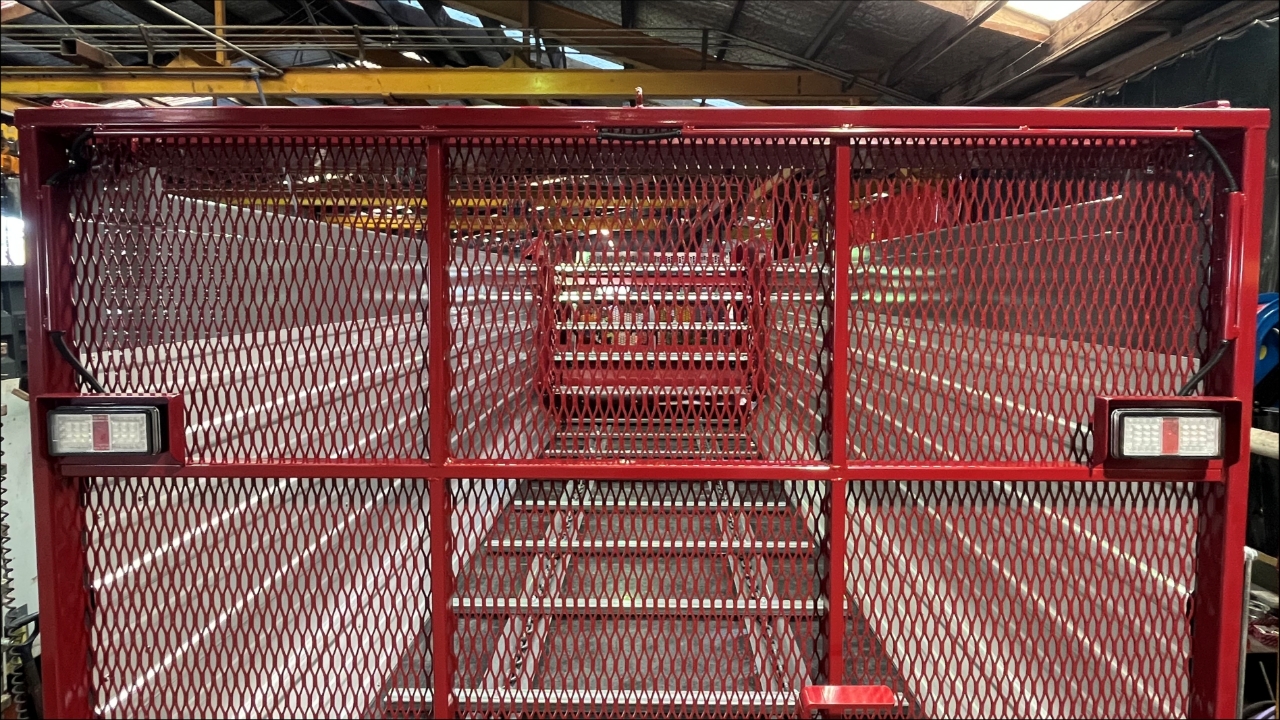

Retrofit GMX lights
A Knowby on how to retrofit light to a GMX wagon.
A Knowby on how to retrofit light to a GMX wagon.
1
Step 1 of 8

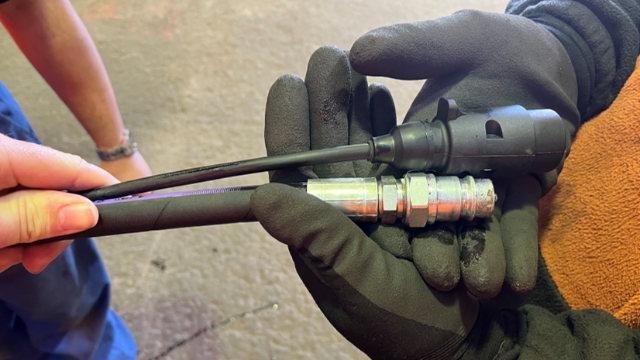

<p>Use the hydraulic hose to set the position of the light plug. </p><p>Make sure the end of the plug lines up with the end of the hose before cable-tying the light cable at the hose holder.</p>

Use the hydraulic hose to set the position of the light plug.

Make sure the end of the plug lines up with the end of the hose before cable-tying the light cable at the hose holder.

2
Step 2 of 8

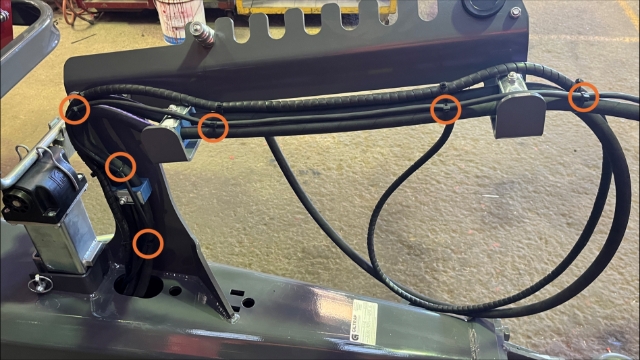

<p>Feed the light cable through the drawbar and cable tie it in place.</p>

Feed the light cable through the drawbar and cable tie it in place.

3
Step 3 of 8

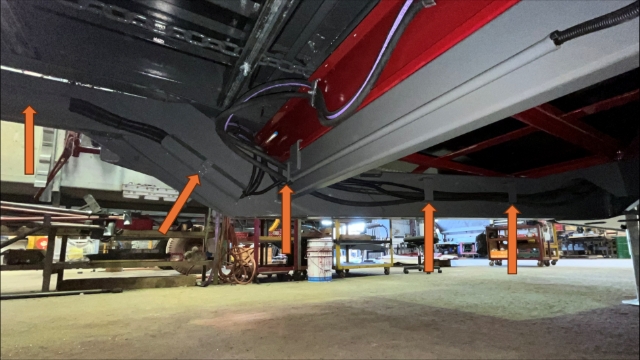

<p>Feed the Light cable through the hose/cable holders along the chassis.</p>

Feed the Light cable through the hose/cable holders along the chassis.

4
Step 4 of 8

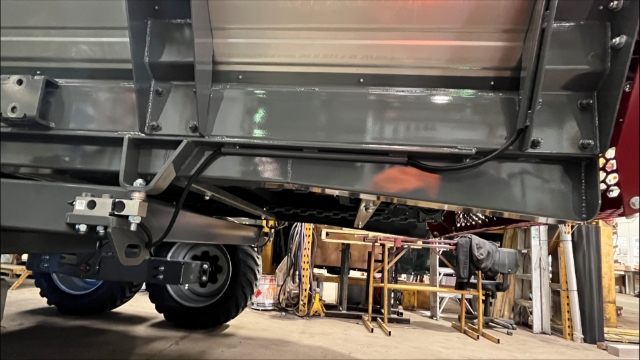

<p>Feed the cable through the cable hole on the tie down bracket and through the cable piping on top chassis.</p><p><br>Add Split loom to the exposed areas of the cable as you go.</p>

Feed the cable through the cable hole on the tie down bracket and through the cable piping on top chassis.


Add Split loom to the exposed areas of the cable as you go.

5
Step 5 of 8

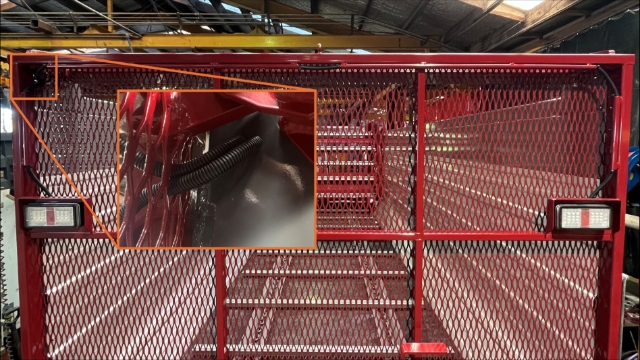

<p>Attach the lights and feed the cables through the pipework back to the tractor wire.</p>

Attach the lights and feed the cables through the pipework back to the tractor wire.

6
Step 6 of 8

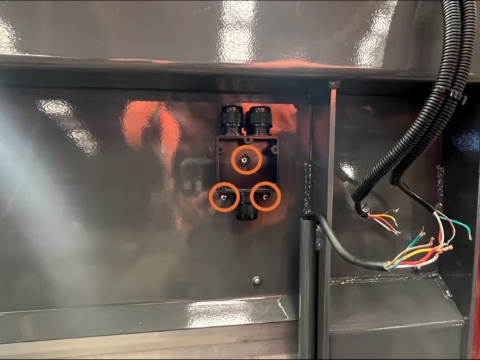

<p>Mount the junction box to the side of the wagon using 3x rivets.</p>

Mount the junction box to the side of the wagon using 3x rivets.

7
Step 7 of 8

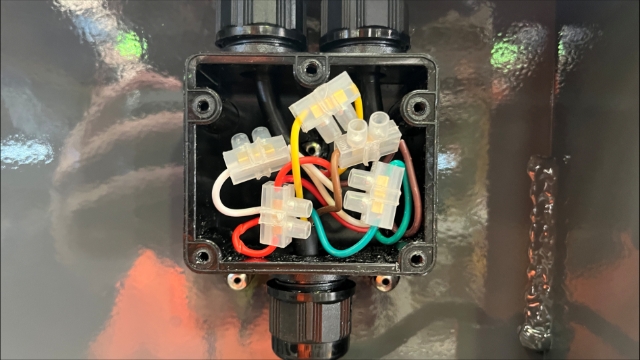

<p>Feed the cables into the junction box and join the Tractor cable to the light cables using connector blocks.</p><p><br>Join Wires based on their color.</p>

Feed the cables into the junction box and join the Tractor cable to the light cables using connector blocks.


Join Wires based on their color.

8
Step 8 of 8

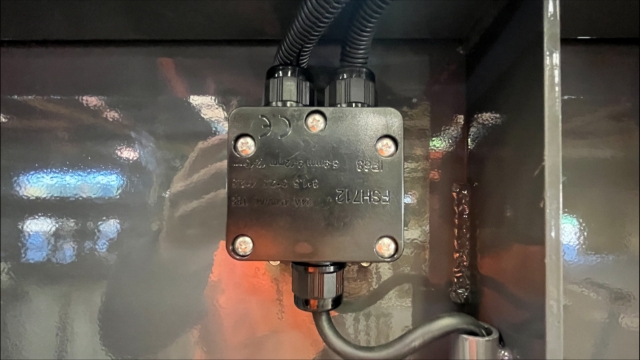

<p>Screw the junction box cover in place.</p>

Screw the junction box cover in place.
