Fit Spare Tyre to Tray Headboard

Knowby

Fit Spare Tyre to Tray Headboard

1

Step 1 of 13

Will look like this when done

2

Step 2 of 13

Identify the supplied tyre holder.

The thread is intensionally supplied long, so it can be custom modified to suit the tyre/wheel used.

3

Step 3 of 13

<p>Measure the centre distance of the tyre to be fit</p>
<p>In this example (LandCruiser GXL) it was approx 390mm</p>

Measure the centre distance of the tyre to be fit

In this example (LandCruiser GXL) it was approx 390mm

4

Step 4 of 13

Check height on bracket, should be within 30mm of desired height

5

Step 5 of 13

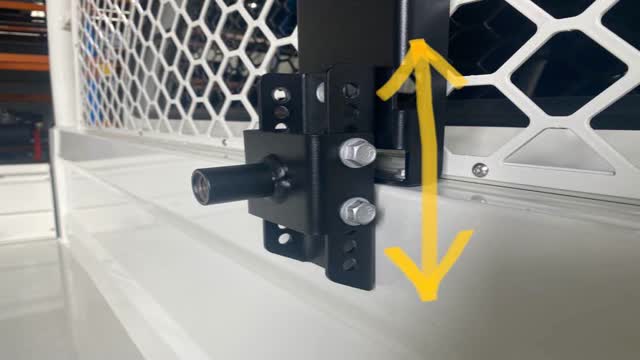

<p>Adjust up and down if necessary</p>

Adjust up and down if necessary

6

Step 6 of 13

Fit tyre to Tray

7

Step 7 of 13

Measure from end of spigot to mounting face (on a standard LandCruiser GXL, this is 85mm)

8

Step 8 of 13

Mark it: Distance + 25mm

E.g. in this example it was 85+15= 110mm

9

Step 9 of 13

Cut it to size

10

Step 10 of 13

Deburr sharp edge on end of thread

11

Step 11 of 13

Fit to Tray

12

Step 12 of 13

Tyre should be nice and tight

13

Step 13 of 13

Looks like this when done
