Radar Remounting, Hilux SR5
From Late 2022, the SR5 comes with a Radar/Lane change assist. These instructions are for remounting it.
From Late 2022, the SR5 comes with a Radar/Lane change assist. These instructions are for remounting it.
1
Step 1 of 12

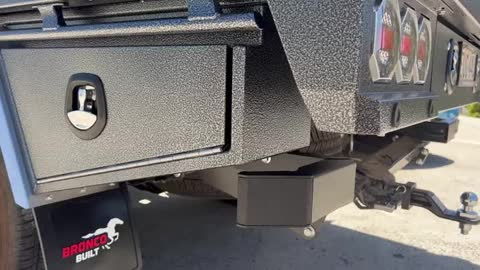

Will look like this when fitted

2
Step 2 of 12
<p><strong>Tools Required</strong></p> <ul> <li>Sockets: 18mm</li> </ul>

Tools Required

  • Sockets: 18mm
3
Step 3 of 12

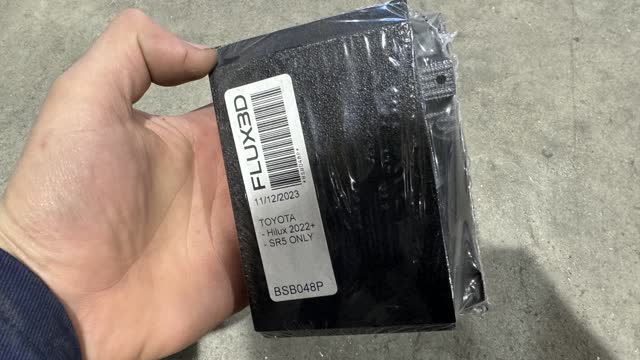

<p>Identify the supplied 3D printed radar holders. part number BSB048P</p>

Identify the supplied 3D printed radar holders. part number BSB048P

4
Step 4 of 12

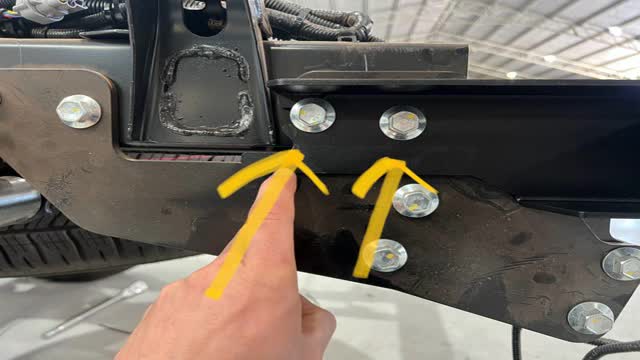

<p>Add the brackets. They will pickup on the Towbar bolts</p>

Add the brackets. They will pickup on the Towbar bolts

5
Step 5 of 12

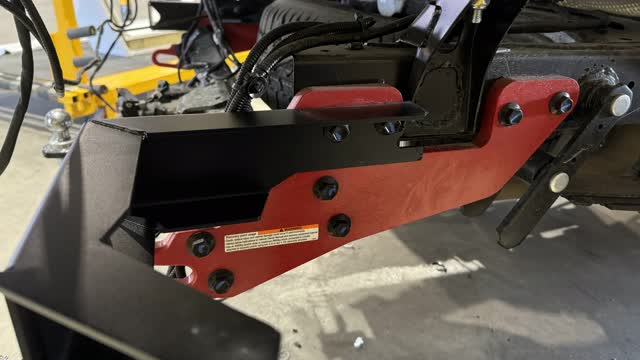

<p>It may also look like this with the red recovery plates showing on some models</p>

It may also look like this with the red recovery plates showing on some models

6
Step 6 of 12

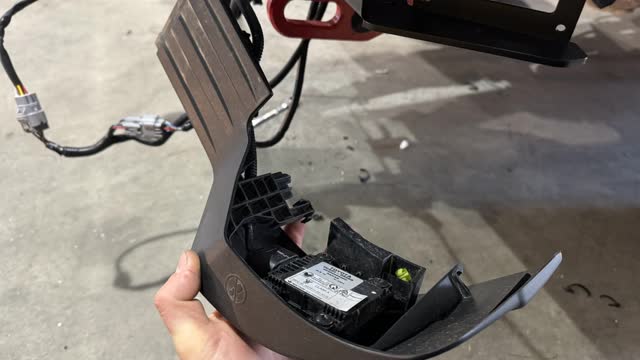

<p>Identify the radars</p>

Identify the radars

7
Step 7 of 12

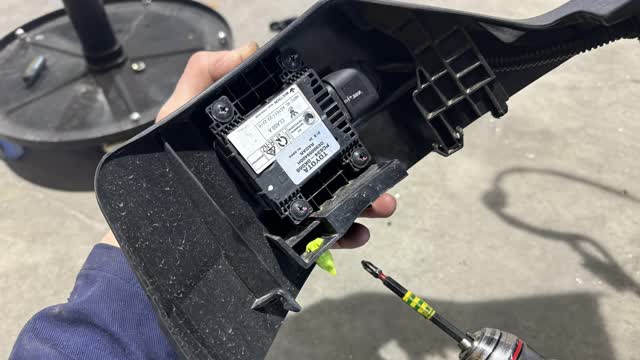

<p>Unscrewed the four screws holding the radar to the original bracket</p>

Unscrewed the four screws holding the radar to the original bracket

8
Step 8 of 12

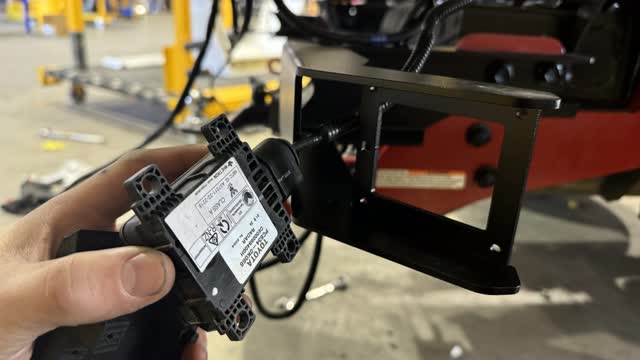

<p>Feed the wiring through the steel bracket</p>

Feed the wiring through the steel bracket

9
Step 9 of 12

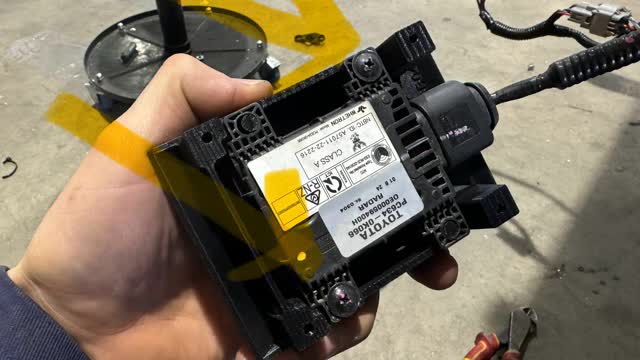

<p>Screw the radar to the supplied 3-D printed bracket</p>

Screw the radar to the supplied 3-D printed bracket

10
Step 10 of 12

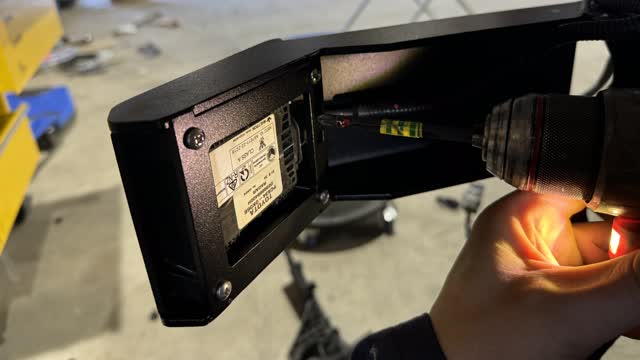

<p>Fit to the steel bracket</p>

Fit to the steel bracket

11
Step 11 of 12

Fit the radar to the plastics. it should look like this

12
Step 12 of 12

Will work like this

Flash in the mirror if a car is in your blind spot
