xRadar Prep, BT50 & Cab Chassis DMax

1

Step 1 of 14

NOTE: These instructions suit all BT50s and "Cab Chassis" DMax's. There are different instructions if it is a DMax WITH Tub

2

Step 2 of 14

This is how the passenger side bracket will look.

Notice the 3D printed part says "TOP" on the inside - IMPORTANT that you get it correct!

3

Step 3 of 14

<p>We will supply as a pair/set</p>

We will supply as a pair/set

4

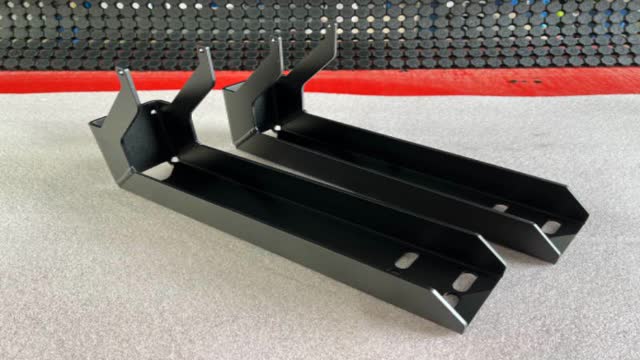

Step 4 of 14

<p>Get the 2 brackets (made by Bronco), always powder coated in matte Black</p>

Get the 2 brackets (made by Bronco), always powder coated in matte Black

5

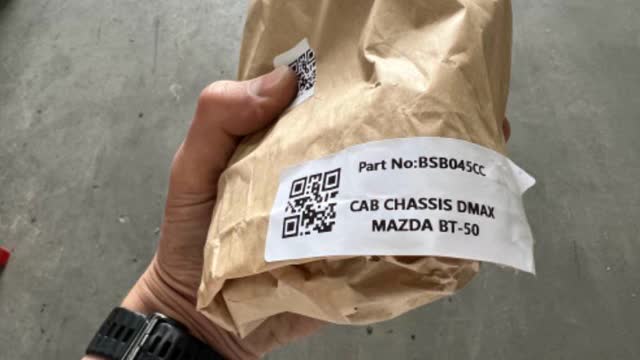

Step 5 of 14

<p>Get the 3D printed parts, part number is BSB045CC</p>
<p>CAREFUL as there is another very similar part, which only suit the DMax WITH a Tub (not what you currently need)</p>

Get the 3D printed parts, part number is BSB045CC

CAREFUL as there is another very similar part, which only suit the DMax WITH a Tub (not what you currently need)

6

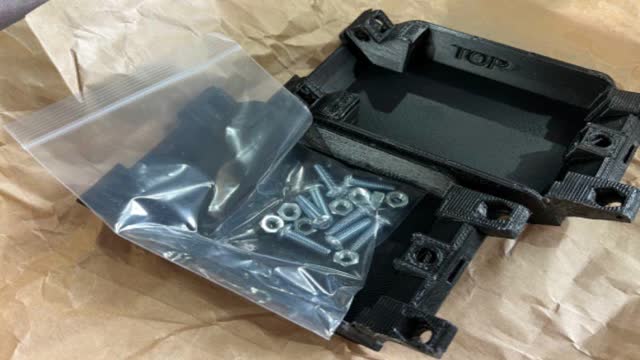

Step 6 of 14

<p>They will come with fasteners</p>

They will come with fasteners

7

Step 7 of 14

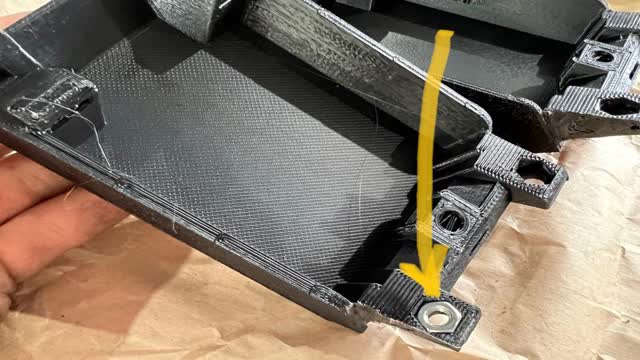

<p>Insert nuts into the 3D printed brackets</p>

Insert nuts into the 3D printed brackets

8

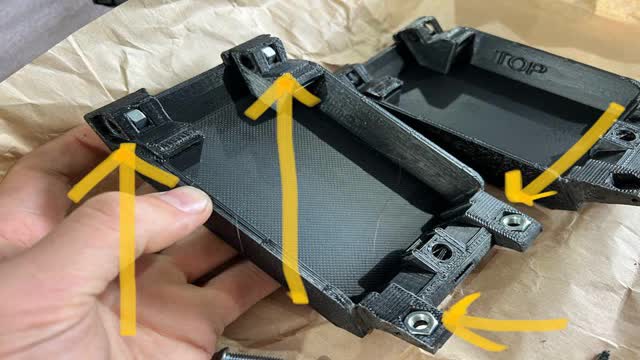

Step 8 of 14

<p>There are 4 per bracket</p>

There are 4 per bracket

9

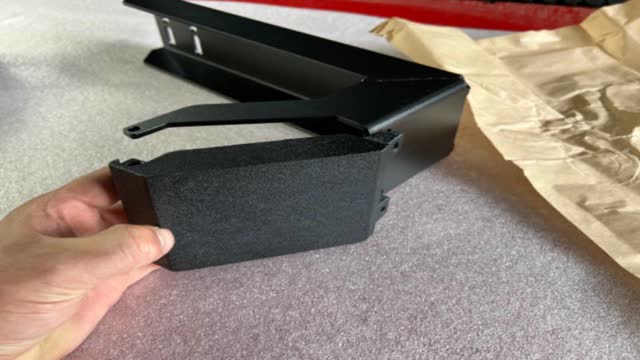

Step 9 of 14

<p>Will fit like this to the steel bracket</p>

Will fit like this to the steel bracket

10

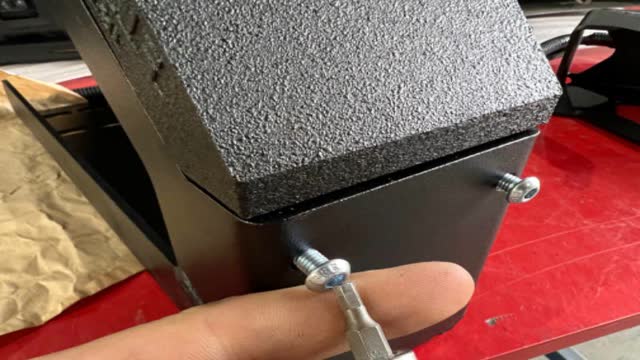

Step 10 of 14

<p>4mm hex head to tighten screws</p>

4mm hex head to tighten screws

11

Step 11 of 14

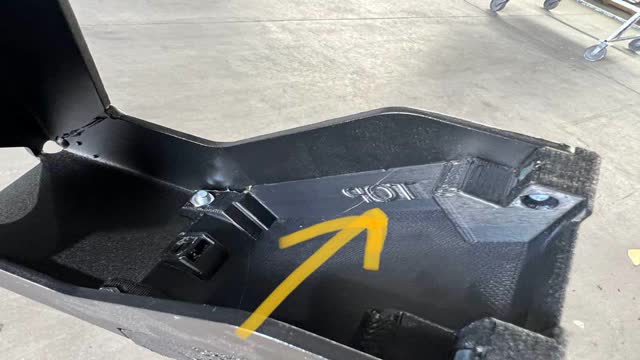

<p>Identify the "TOP" markings</p>

Identify the "TOP" markings

12

Step 12 of 14

Write "Top" and which side it is. Also write "Pass" and "Driv". This makes it easier for the person fitting these to the vehicle.

13

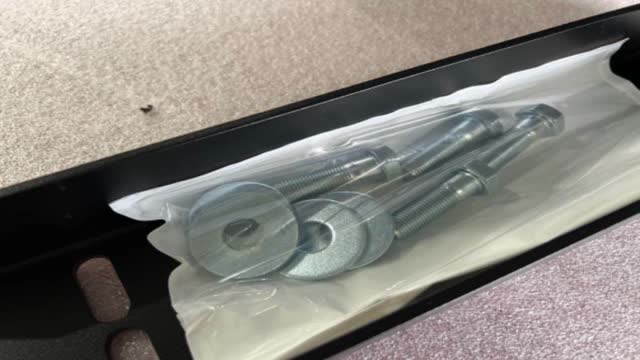

Step 13 of 14

<p>Add Fasteners;
4 x M12x 40 fine thread
4 x big flat washer</p>

Add Fasteners; 4 x M12x 40 fine thread 4 x big flat washer

14

Step 14 of 14

Package it up, and put in Tray
