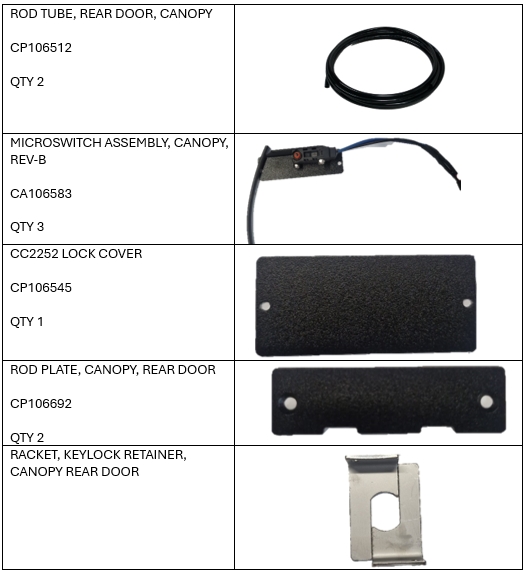

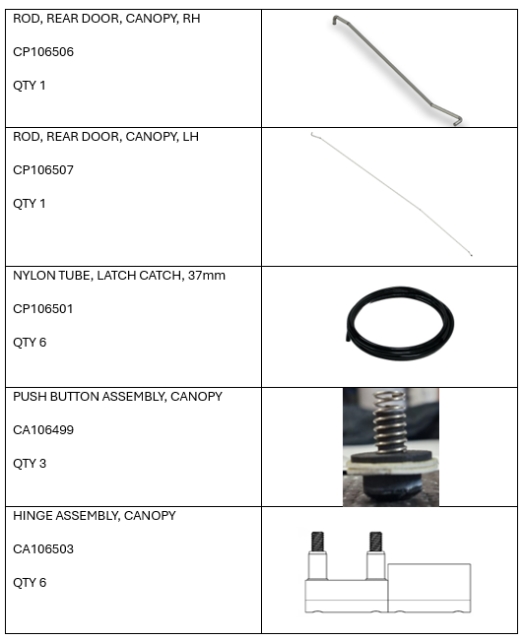

Components List
Components List
Components List
(Used for Door Assembly & Canopy Assembly)
Please refer to this when going through the instructions to ensure you're using the correct parts.
Components List
(Used for Door Assembly & Canopy Assembly)
Please refer to this when going through the instructions to ensure you're using the correct parts.
Tools List
Torque Values
Counter sink the key hole a slight ammount.
Drill each button hole out on the 3 doors, with the 15mm drill bit.

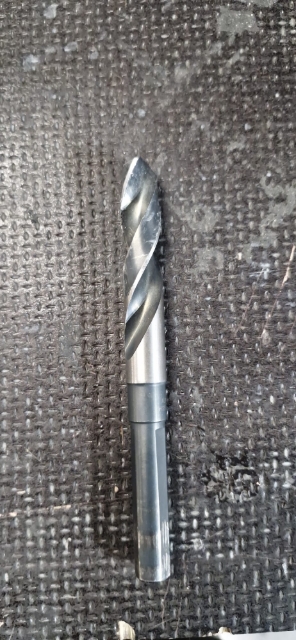

15mm drill bit kept in the canopy bay.
Cut the nylon tube to the length between the door brace.

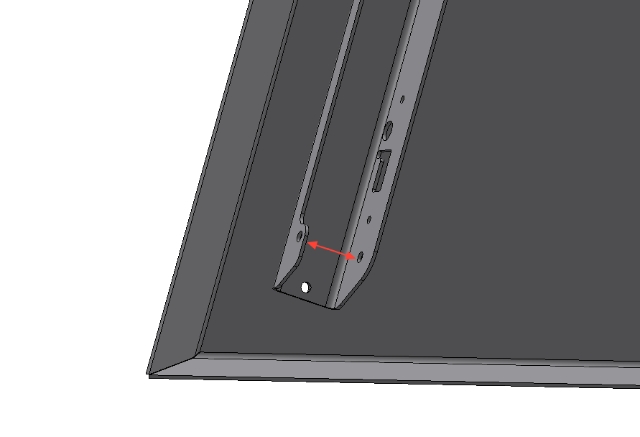

Where to cut between.
Insert an M6x50 SS bolt through the door brace, then through the nylon tube, and out the other side of the brace.
Fit the key holders into the slotted areas where the key is. You may need to hit them in to get them to fit.
Place the plastic tube on the rod end as shown on both rods.
Insert the rods on each side, as shown, into the rod holes. And then place them into the plastic clips to lock into place.
Fit the button into the button hole, and ensure it doesn't catch and will be able to be pushed smoothly.
Insert the wire on the longer side of the box towards the cutout box. Attach the microswitch wire to the metal wire and pull it all the way through.
Screw in the microswitch.
Fit the Ball ends on each door.
Zip tie the loom along the door brace. ensure they are tight.
Fit the rubber to the doors as shown.
Same as step above
Same as step above.
Fit the hinges to the door.
Ensure that each hinge is pushed as far back as possible.
Fit the rod plate to each side of the rear door using:
M5x12 ss CSK cap screw
M4 ss NUT
