Rubber a Flat Die to Specification
Rubber a Flat Die to Specification
1
Step 1 of 7

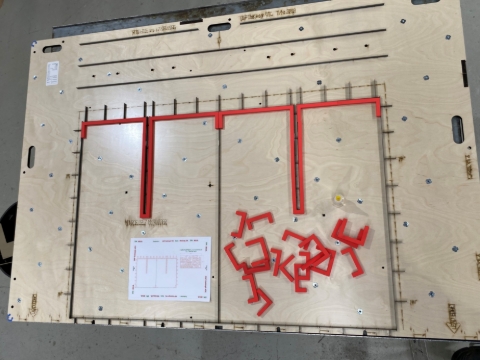

<p>Separate and layout the WaterJet cut pieces onto the Die.</p><p>Take note of the time you have started the job.</p>

Separate and layout the WaterJet cut pieces onto the Die.

Take note of the time you have started the job.

2
Step 2 of 7

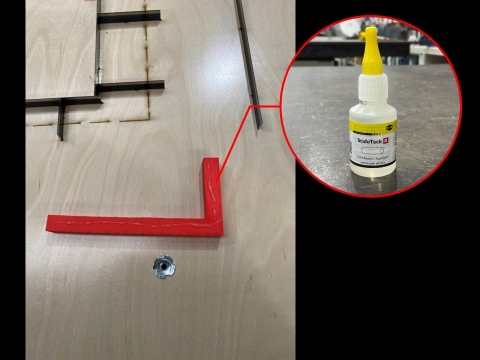

<p>Apply an appropriate amount of glue to the rubber (loctite/Stafotack or equivalent).</p>

Apply an appropriate amount of glue to the rubber (loctite/Stafotack or equivalent).

3
Step 3 of 7

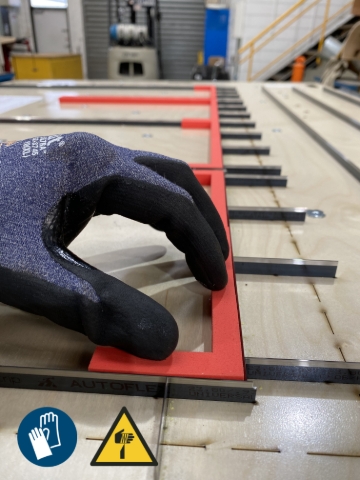

<p>Carefully press glued rubber down onto the correct position on the Die. </p><p>The blades are very sharp take care not to cut yourself.</p>

Carefully press glued rubber down onto the correct position on the Die.

The blades are very sharp take care not to cut yourself.

4
Step 4 of 7

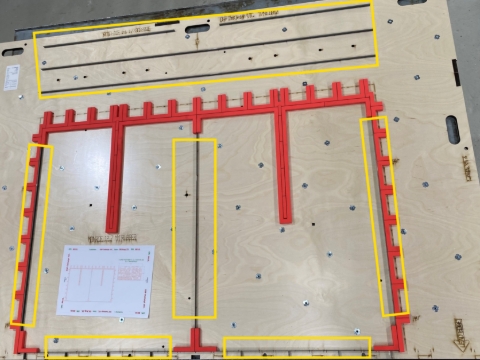

<p>Once all water jet rubber is glued, there will be uncovered knife on the balancing rule and the job.</p>

Once all water jet rubber is glued, there will be uncovered knife on the balancing rule and the job.

5
Step 5 of 7

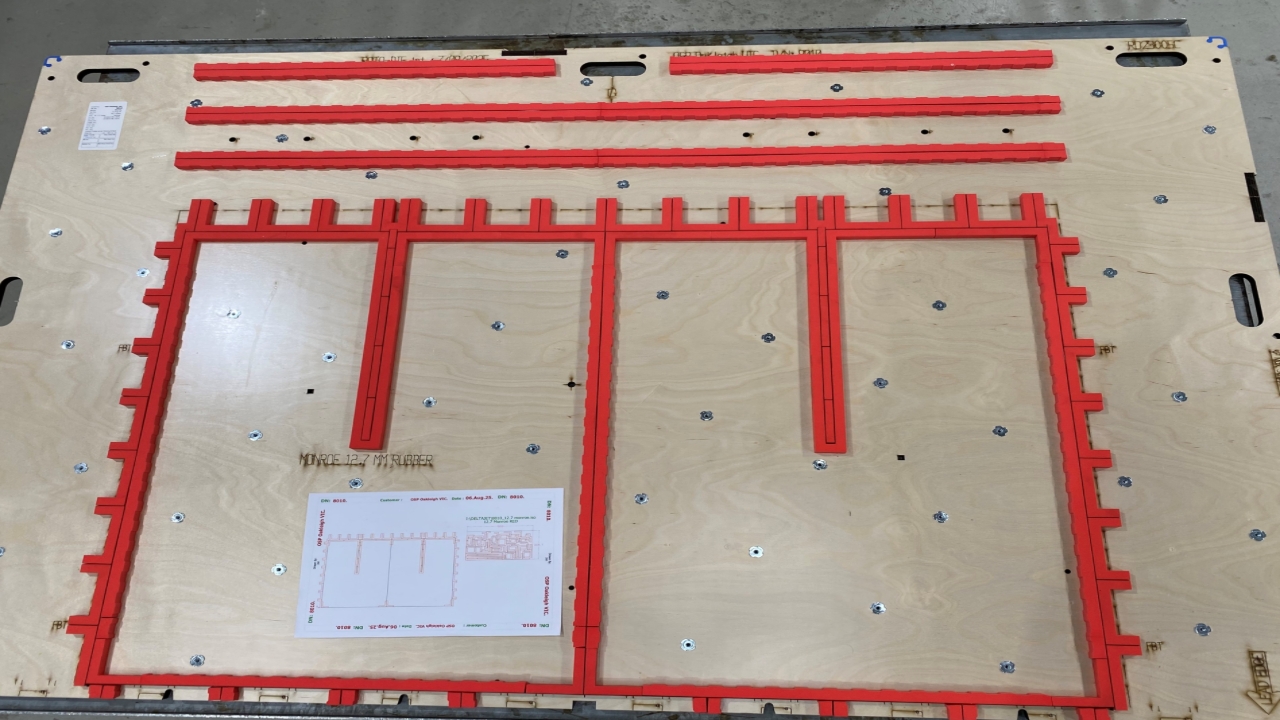

<p>Fill the uncovered knife with hand cut strip rubber, using the correct rubber. In this case it is 12.7mm red Monroe.</p>

Fill the uncovered knife with hand cut strip rubber, using the correct rubber. In this case it is 12.7mm red Monroe.

6
Step 6 of 7

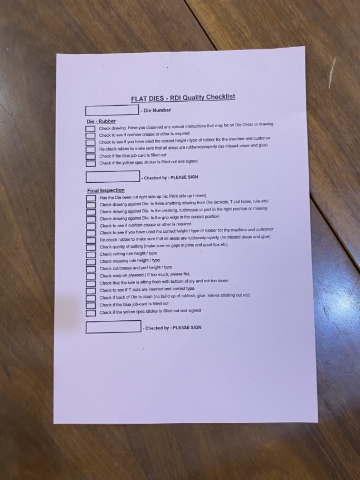

<p>Once rubber complete go through the appropriate checklist.</p>

Once rubber complete go through the appropriate checklist.

7
Step 7 of 7

Once die rubber complete, fill in the correct part of the time sheet. Recording the time it took to complete.
