How to Build It: Nissan Navara, NP300

1

Step 1 of 8

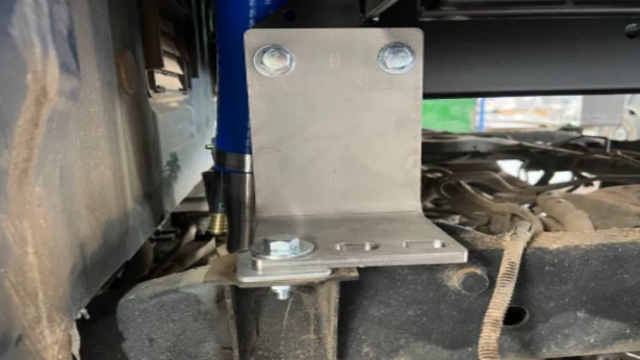

<p><strong>Tray Mounts</strong></p>
<ul>
<li><a href="https://knowby.show/005825f5-7e9f-4606-89a8-e004fbee2b2c">Dual Cab</a></li>
<li>Extra Cab - Need to build this Knowby Instruction</li>
<li>Extra Cab - Need to build this Knowby Instruction</li>
</ul>

Tray Mounts

Dual Cab
Extra Cab - Need to build this Knowby Instruction
Extra Cab - Need to build this Knowby Instruction

2

Step 2 of 8

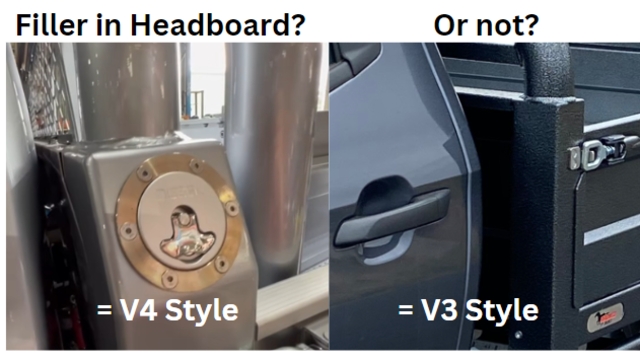

<p><strong>Select correct Fuel Filler based on the Headboard Type</strong></p>
<ul>
<li><a href="https://knowby.pro/view/2c15b115-acad-4a38-8d36-8a0dcd1e76fb">"V3 Headboard" Fuel Prep, Dual Cab</a></li>
<li><a href="https://knowby.show/0bfe0821-3dcc-47a3-b5d7-a3dac27ef867">"V4 Headboard" Fuel Prep, Dual Cab</a></li>
</ul>

Select correct Fuel Filler based on the Headboard Type

3

Step 3 of 8

Wiring Harness

Part number “NAVARAT-NP300”

4

Step 4 of 8

Camera Bracket

Part number “CB003”

5

Step 5 of 8

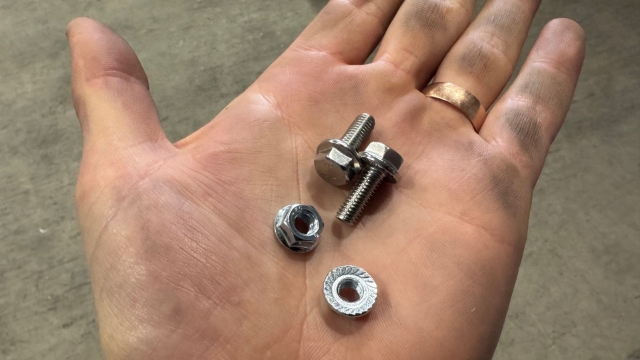

<p><strong>Easy to forget</strong> !</p>
<p>Make sure the camera bracket is set with two M6 bolts and two M6 nuts</p>

Easy to forget !

Make sure the camera bracket is set with two M6 bolts and two M6 nuts

6

Step 6 of 8

Reversing Sensors

Part number “SB023”

7

Step 7 of 8

Radar Plastics

Part number “BSB043P”

8

Step 8 of 8

Radar steel brackets

One pair of radar steel brackets, they are marked with a laser cut “N” to indicate they are for a Navarra
