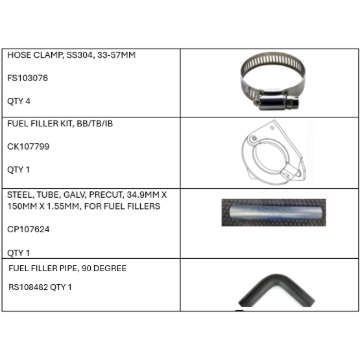

Components List

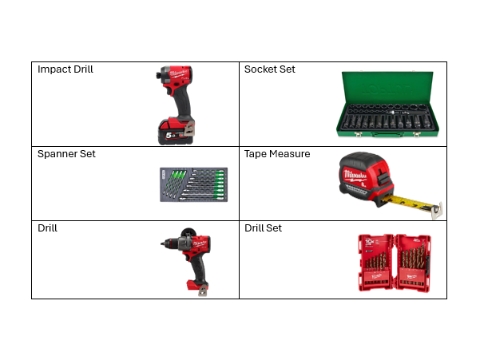

Tools List

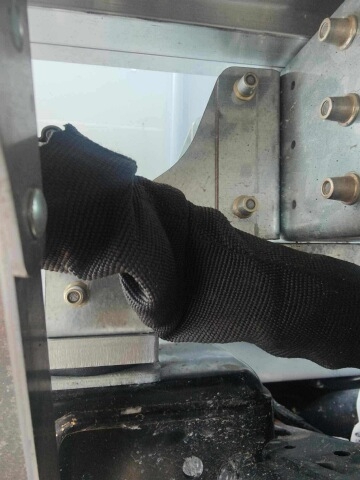

If a sock is fitted over the fuel filler, remove it before proceeding.

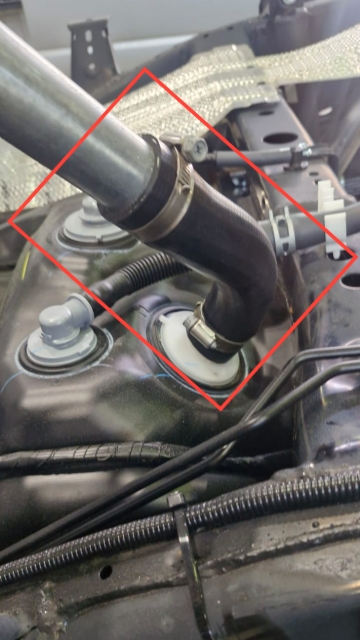

Remove the original fuel hose and fit a 90-degree fuel hose (RS108482). Clamp it as shown (FS103076).
Cut 80mm of the 90-degree fuel hose so the hose doesn't pinch and prevent the fuel from entering.

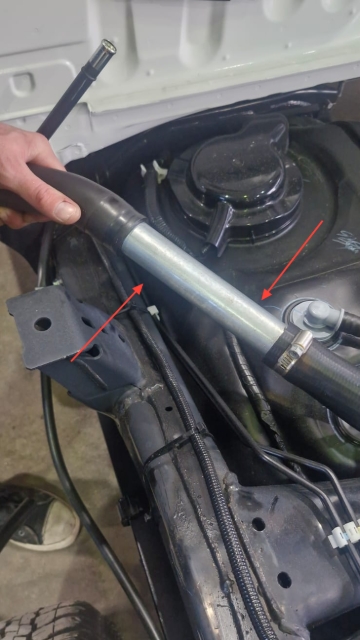

Connect the straight steel pipe (CP107624) to the new hose, ensuring a secure fit.

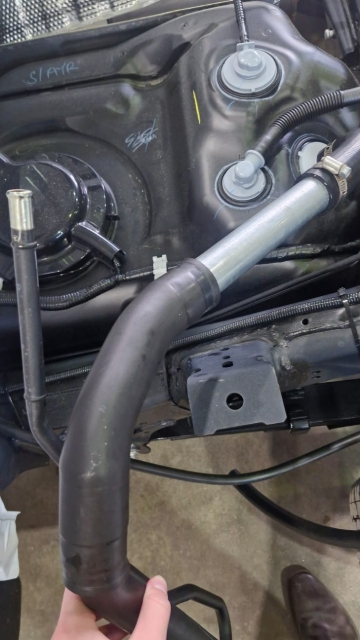

Use the original fuel hose to attach to the top of the steel pipe

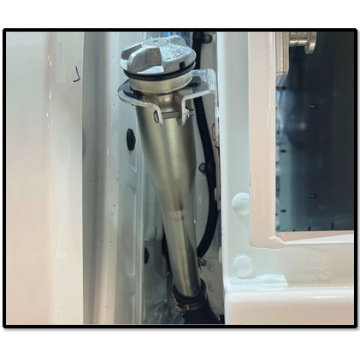

Cut the fuel filler to length and then fit it to the hose with a clamp (FS103076). Fit the bracket to the front of the gullwing box using huck bolts.

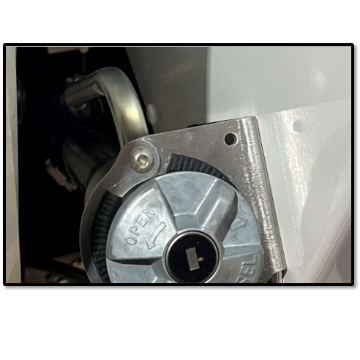

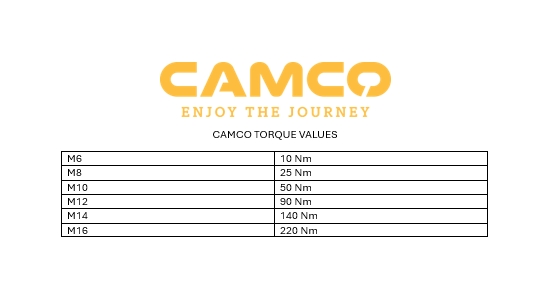

Attach the fuel filler to the bracket (CK107799) and tighten all clamps and bracket to spec.
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If the hard copy does not arrive, please contact us.
