Canopy Gas Struts, “V”, Dual Cab

Knowby

Canopy Gas Struts, “V”, Dual Cab

1

Step 1 of 6

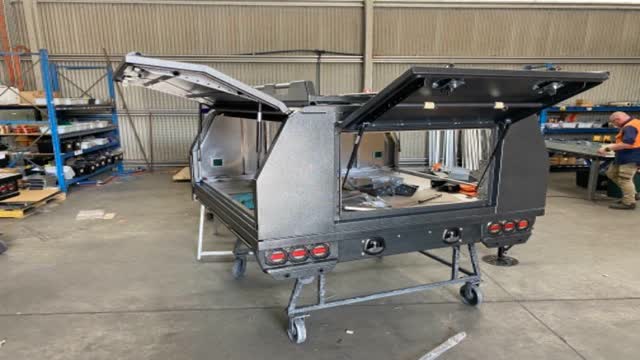

<p>Looks like this</p>
<p>Side doors,
1 x 350N
1 x 300N</p>

Looks like this

Side doors, 1 x 350N 1 x 300N

2

Step 2 of 6

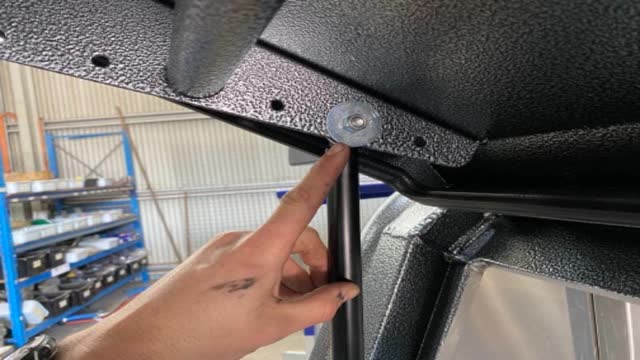

<p>Side doors, 2nd hole from hinge</p>

Side doors, 2nd hole from hinge

3

Step 3 of 6

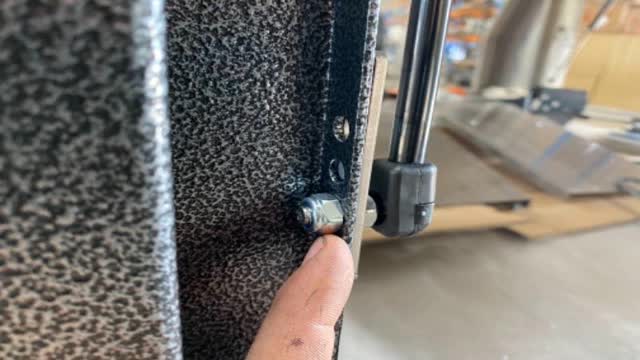

<p>Bottom hole on canopy body</p>

Bottom hole on canopy body

4

Step 4 of 6

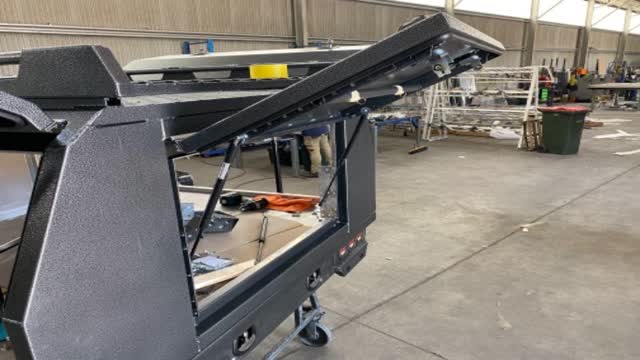

<p>Back door looks like this</p>
<p>2 @ 300N</p>

Back door looks like this

2 @ 300N

5

Step 5 of 6

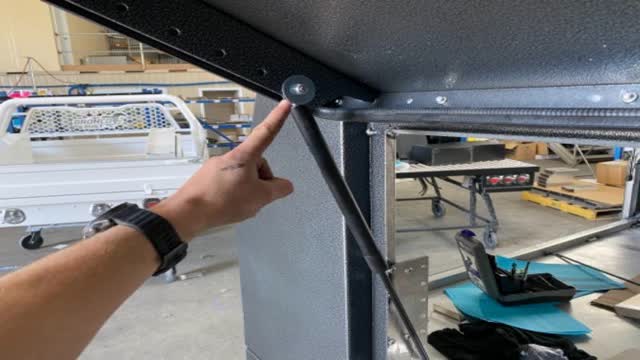

<p>Close hole to hinge on door</p>

Close hole to hinge on door

6

Step 6 of 6

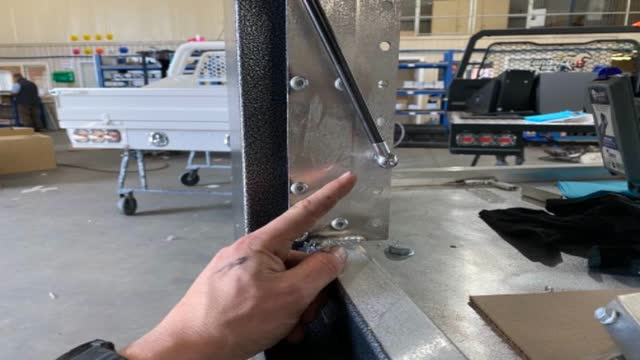

<p>3rd hole from bottom on canopy rear door</p>

3rd hole from bottom on canopy rear door
