Cow shed start up

1

Step 1 of 32

Check the yard. Is it set for where you want the cows to go?

2

Step 2 of 32

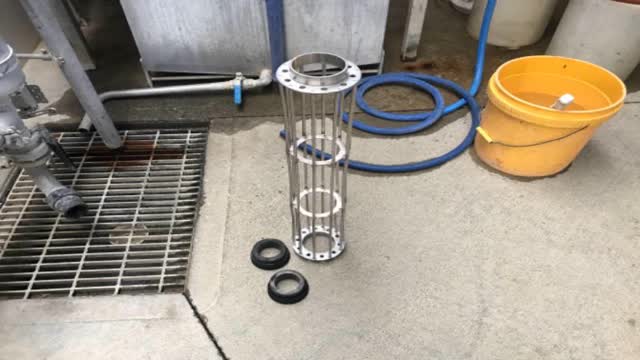

Set up filter sock

3

Step 3 of 32

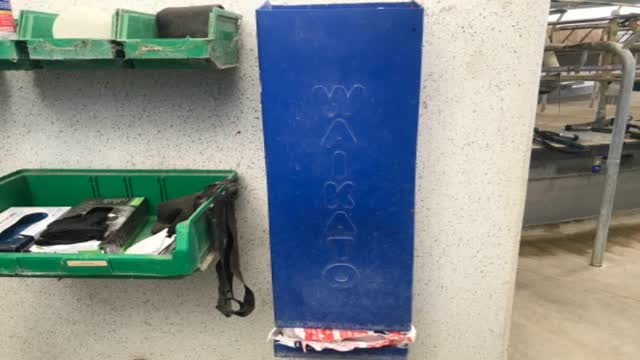

Filter socks are on wall beside gloves

4

Step 4 of 32

Make sure filter in folded down and bungs secure x2

5

Step 5 of 32

There should be no gaps between bung and filter

6

Step 6 of 32

Put Filter in the filter holder - making sure the sides of the filter sock don’t get damaged when putting in.

7

Step 7 of 32

Put the top of the filter holder on and tighten. Ensure a good even seal

8

Step 8 of 32

Turn on milk cooler x 2

9

Step 9 of 32

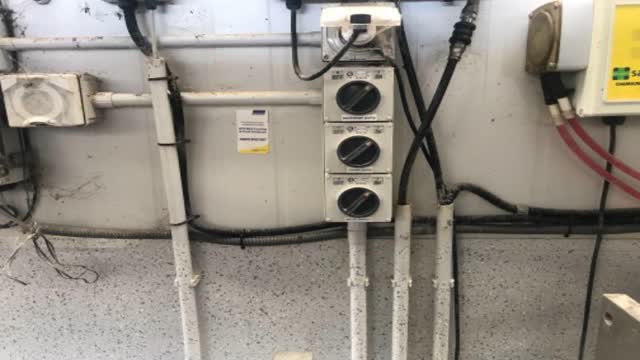

Turn on wash down pump and water Canon Note – cooler pump always stays on

10

Step 10 of 32

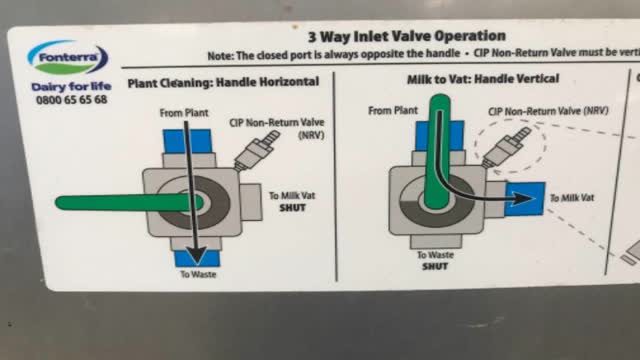

Vat valve operation

11

Step 11 of 32

I am starting milking so will open vat valve

12

Step 12 of 32

Close drain point below vat handle

13

Step 13 of 32

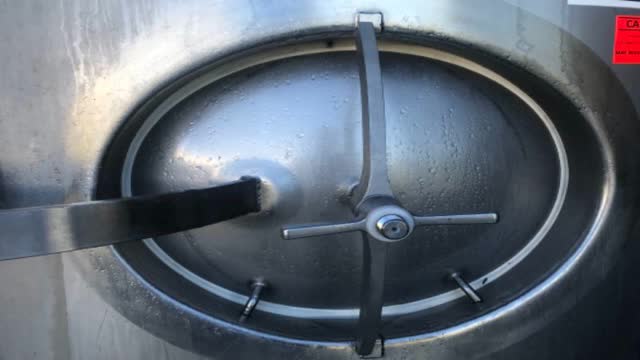

Make sure vat seal is on correctly and door is shut

14

Step 14 of 32

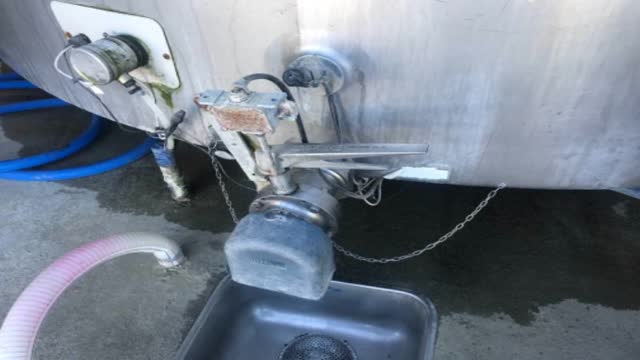

Make Sure the vat outlet is closed

15

Step 15 of 32

Make your way into centre of platform

16

Step 16 of 32

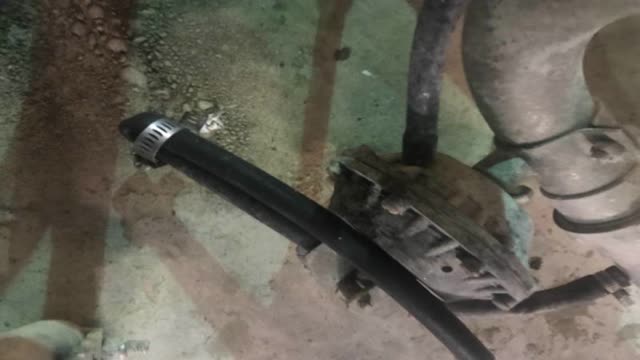

Close middle drain point

17

Step 17 of 32

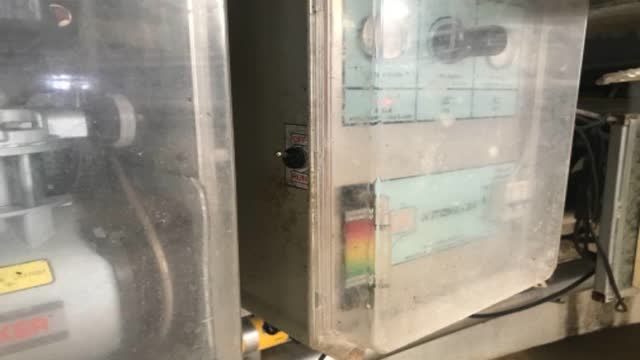

Turn on auto milkers

18

Step 18 of 32

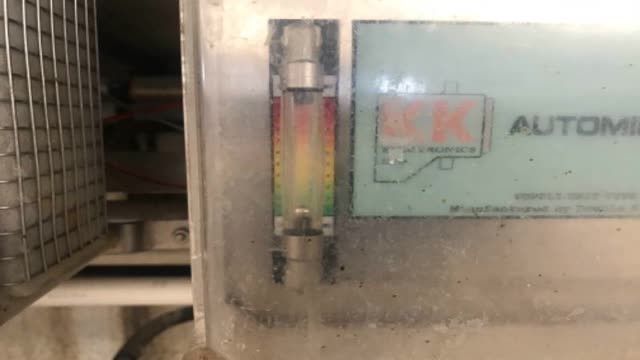

Check auto milker gauge. This should be in green. If in red do not start milking

19

Step 19 of 32

Wet down the Inside of the cow shed. This will make clean up easier at the end of milking

20

Step 20 of 32

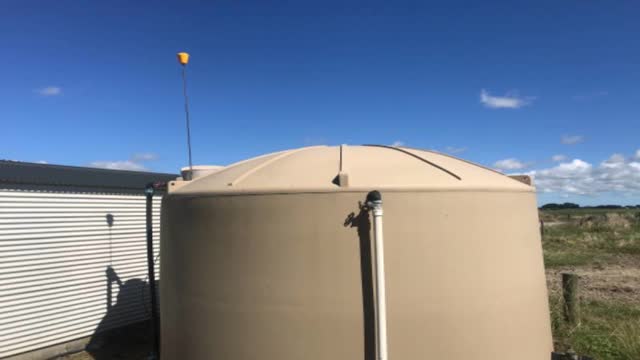

<p>Check farm water tank level. Important this is full before milking starts.
If it is half or below let everyone in the team on farm know - there is a leak on farm</p>

Check farm water tank level. Important this is full before milking starts. If it is half or below let everyone in the team on farm know - there is a leak on farm

21

Step 21 of 32

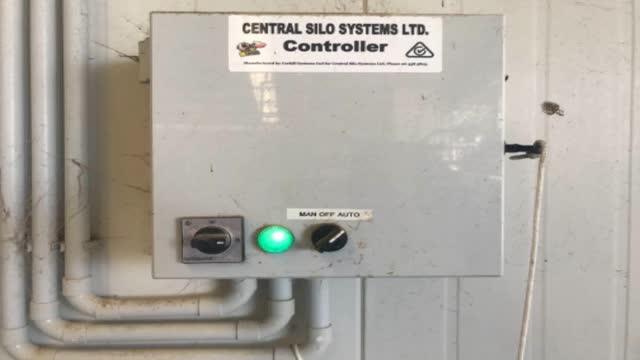

Insure that the inshed feeding is turned onto auto - this is located on wall by red roller door

22

Step 22 of 32

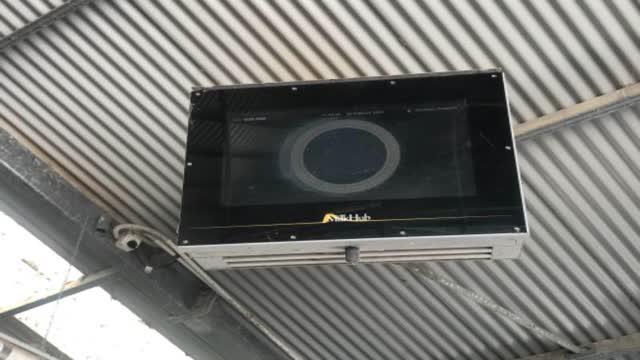

Insure milkhub screen is working on cups on – If you push a button on the keypad this should start the screen up.

23

Step 23 of 32

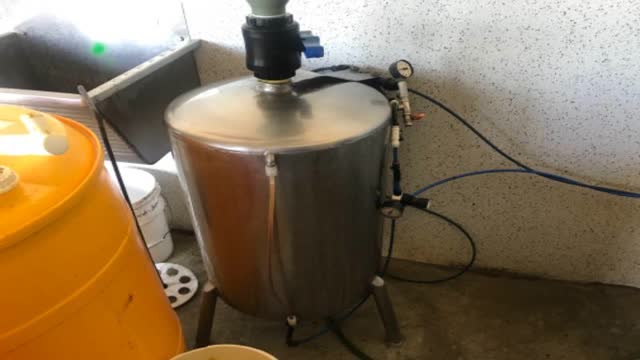

Make sure teat sprayer is full and the teat spray room.

24

Step 24 of 32

You are now ready to start milking.

25

Step 25 of 32

To turn on the cowshed turn the vacuum pump switch to “variable vacuum”

26

Step 26 of 32

Cups should now all pull up ready for milking.

27

Step 27 of 32

It’s good practice once one round of cows is on and milking to check a few things.

28

Step 28 of 32

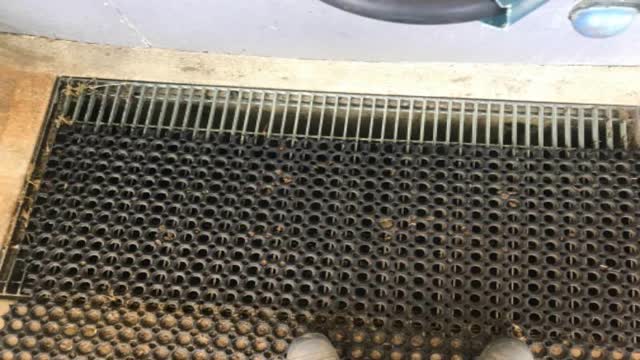

Any milk leaks from filter sock or vat will flow under you feet in this drain on cups on - Keep an eye under your feet on the first round of milking.

29

Step 29 of 32

If the vat is empty. The refrigeration will need to be turned on.This is located outside the cow shed in front of the vat.

30

Step 30 of 32

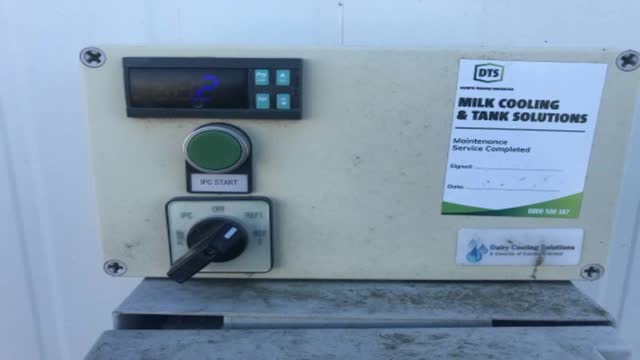

Always use REF1. Only turn on Vet when some milk is in. E.g. after the first 60 cows milking

31

Step 31 of 32

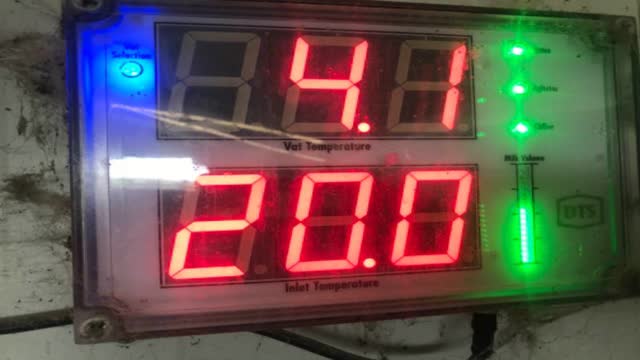

This is above the filter sock. -It shows the vat temp. -Inlet temp (temperature of milk going into vat) -if the agitator and chiller are working

This gives you a quick overview to see if things are working in the cow shed

32

Step 32 of 32

A few other things to check on the first round of milking

Is the teatsprayer operating?
Is the inshed feed dispensing feed?
Are the cows exiting the cowshed as they should?
