ACC - GF lid lift FA
1
Step 1 of 11

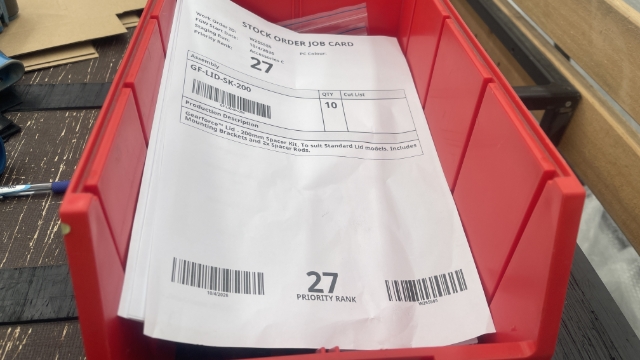

<p>Grab red bin out of NON PC trolley. </p>

Grab red bin out of NON PC trolley.

2
Step 2 of 11

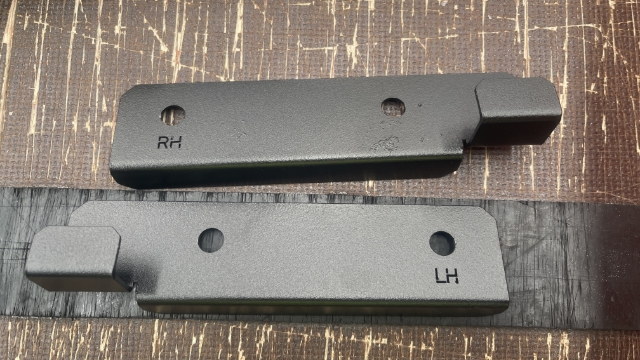

<p>Take off parts from flight rack. Ensure left and right are picked. Check PC quality.</p>

Take off parts from flight rack. Ensure left and right are picked. Check PC quality.

3
Step 3 of 11

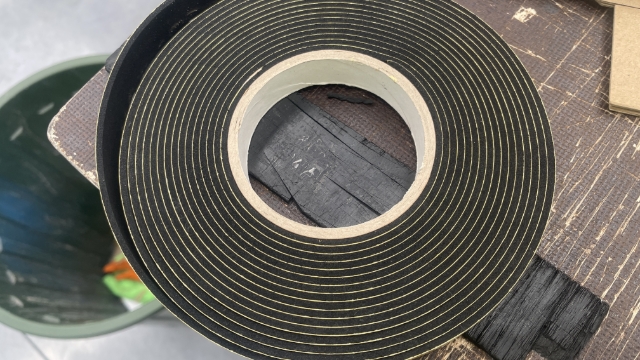

<p>Grab a yellow sponge seal. </p>

Grab a yellow sponge seal.

4
Step 4 of 11

Measure the sponge seal against the lift kit as shown. Cut the length.

5
Step 5 of 11

Install the sponge seal as shown. Ensure it doesn't go over the sides of the lift kit.

6
Step 6 of 11

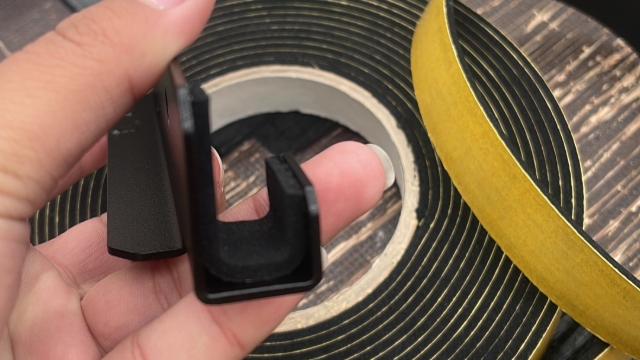

<p>The sponge seal should look like this. Repeat on the other lift kit. </p>

The sponge seal should look like this. Repeat on the other lift kit.

7
Step 7 of 11

Wrap LH and RH brackets together.

8
Step 8 of 11

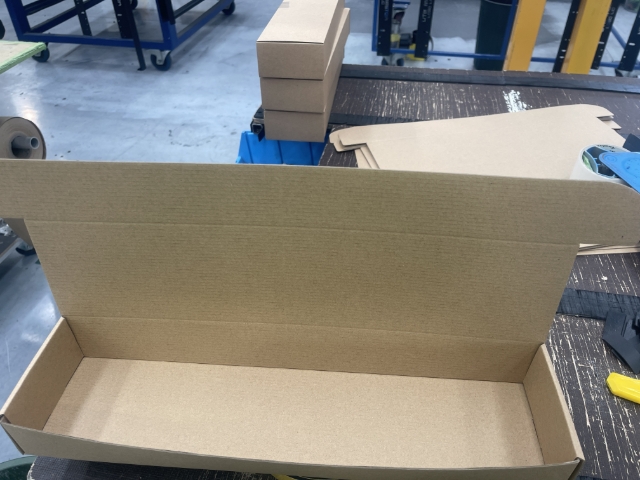

<p>Prepare fitting kit box. </p>

Prepare fitting kit box.

9
Step 9 of 11

Put the brackets, struts and fitting kit inside the box. Ticked off despatch list.

10
Step 10 of 11

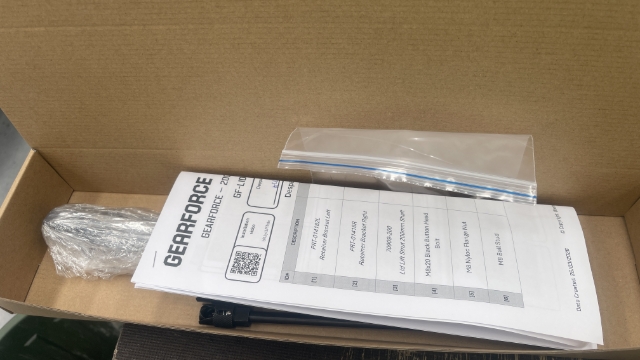

<p>Fold fitting instructions lengthwise and place inside the box. </p>

Fold fitting instructions lengthwise and place inside the box.

11
Step 11 of 11

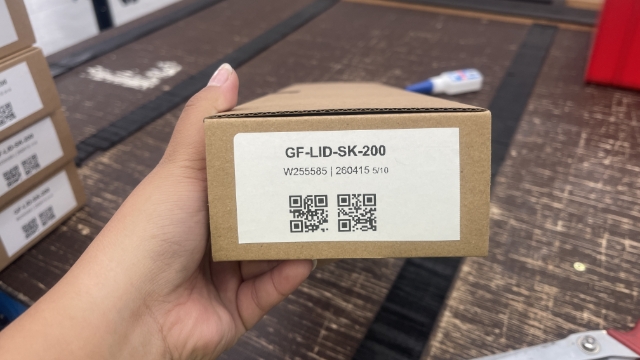

<p>Place label on the side of the box. Repeat on all items. </p>

Place label on the side of the box. Repeat on all items.
