Unplug taillight, reverse sensors and radar (if any)

Take caution on all reverse sensors these are typically adhesive mounted. Unclip if unplugging is not possible

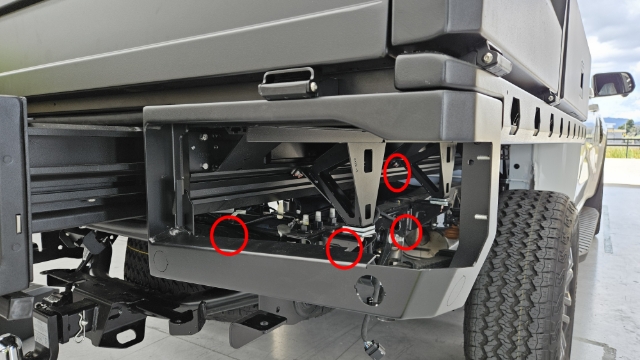

Remove taillight assembly by removing 4 x M6 nylocks

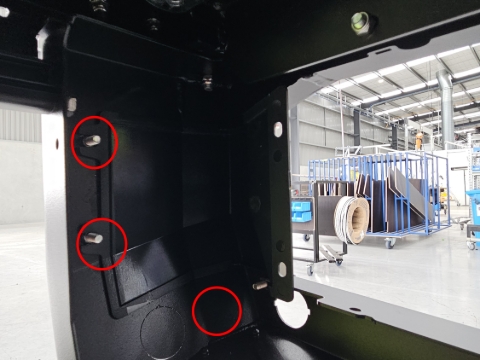

Remove radar bracket, remove 3 x nylock, push in and remove radar housing

This may differ if older revisions

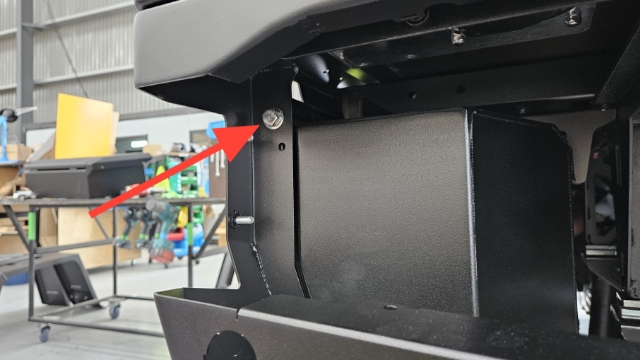

Remove M8 hex fastener

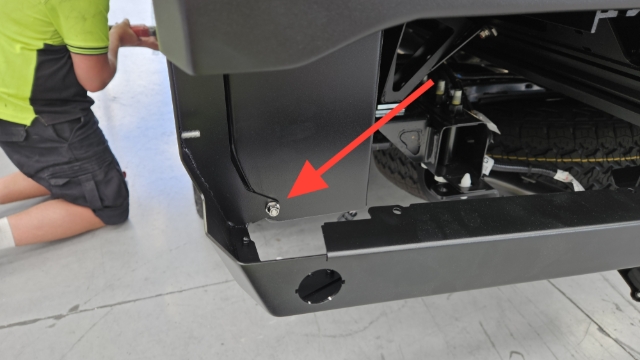

Remove any fastener connected to toolbox water tank or infill panel

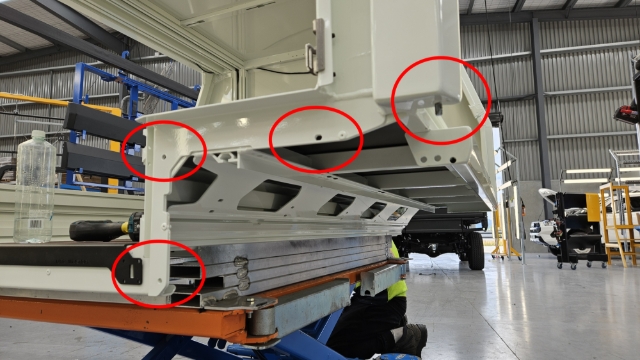

Remove fasteners holding bumper onto body

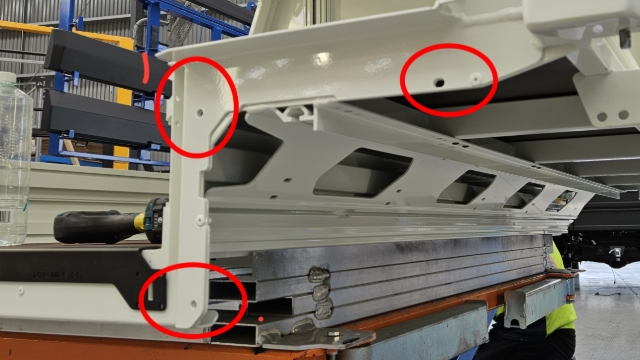

Slot these holes downward as required to allow bumper to sit lower.

If further vertical adjustment is required, the threads from the bumper can be removed, the holes slotted, and secured with nuts and bolts.

Refit bumper and check door clearance

Refit sensors, radars and taillight assembly

Check operation of taillights, reverse sensors and no BLIS faults are present
