TAIT Stage (Stair Installation)
How to attach a stair set to a TAIT stage
How to attach a stair set to a TAIT stage
1
Step 1 of 10

Setup

Requirements

  • 4 people on Floor (Minimum)

Equipment

  • TAIT Stage Stair Set

  • Spanner

  • Ratchet

  • Locking Bit (attached to ratchet)

  • Socket (attached to ratchet)

  • Two hitch pins

PPE

  • Gloves

  • Steel Cap Boots

  • Hi-Vis Vest

2
Step 2 of 10

Roll Out Stair Set

With a minimum of two people, roll out the stair set and line it up next to the stage.

3
Step 3 of 10
<h1>Pro Tip: Lift Points</h1><p></p><p>Be sure to keep hands clear of pinch points when moving or lifting stairs.</p><p></p><p>Best places to hold onto or lift from include:</p><ul><li><p>Handrail</p></li><li><p>Bottom bar of side</p></li><li><p>Handle looking hole</p></li></ul><p></p><p></p>

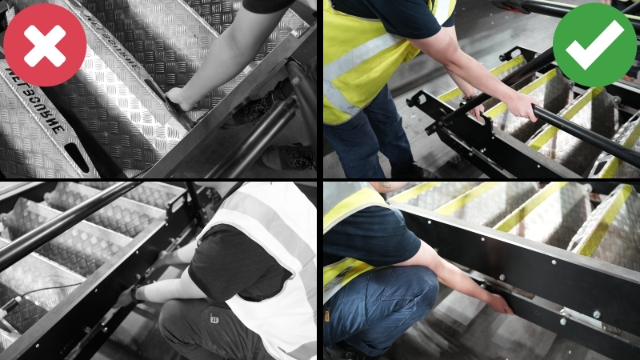

Pro Tip: Lift Points

Be sure to keep hands clear of pinch points when moving or lifting stairs.

Best places to hold onto or lift from include:

  • Handrail

  • Bottom bar of side

  • Handle looking hole

4
Step 4 of 10

Lift Stairs

Using a minimum of four people, lift the stair set upright and rest it against the stage.

5
Step 5 of 10

Check Alignment

While there are multiple people holding the stair set, duck under the stage and check if the stairs are aligned correctly by testing a hitch pin.

Slide the stairs across if it is out of alignment.

6
Step 6 of 10

Attach Hitch Pins

With the stairs correctly aligned to the stage, attach the two hitch pins.

Be sure to secure them using the R-Clips.

7
Step 7 of 10

Lock Stairs to Stage

There is a locking mechanism on the underside of the stairs that locks into the stage.

Insert the appropriate bit (attached to a ratchet) into the hole in the centre of the stair underside.

Twist until fully locked.

The stairs and stage should be pulled together.

8
Step 8 of 10

Loosen Handrail

Loosen the FOUR bolts holding the handrails so that we can adjust the step angle.

9
Step 9 of 10

Adjust Stairs

Adjust both handrails so that the stairs are parallel to the ground.

10
Step 10 of 10

Tighten Handrail

Tighten the FOUR bolts holding the handrail to fix the steps in place.
