IAT Machine Procedure

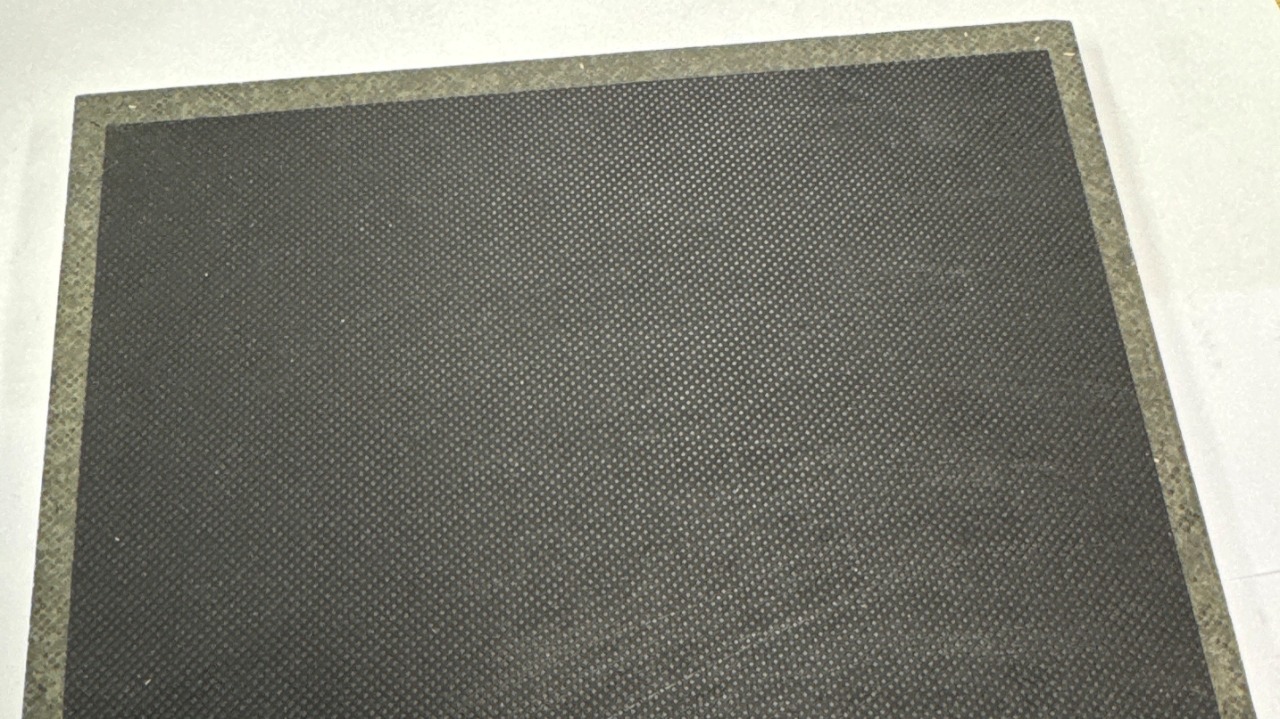

The correct application of IAT to panels
The correct application of IAT to panels
1
Step 1 of 13
<p><span>Turn on machine.</span></p><p><span style="line-height: 1.4;">Red Isolator switch to “ON”</span></p>

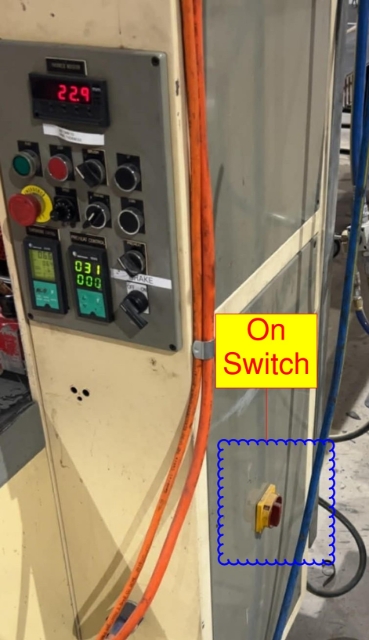

Turn on machine.

Red Isolator switch to “ON”

2
Step 2 of 13
<p><span style="line-height: 1.4;">Ensure Roll is loaded with sticky side face out towards front of machine</span></p>

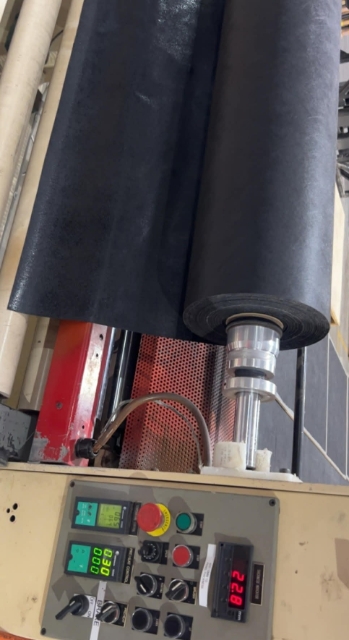

Ensure Roll is loaded with sticky side face out towards front of machine

3
Step 3 of 13
<p><span>Set speed on dial to 8 while machine heats up.</span></p><p><span style="line-height: 1.4;">Also when not in use</span></p>

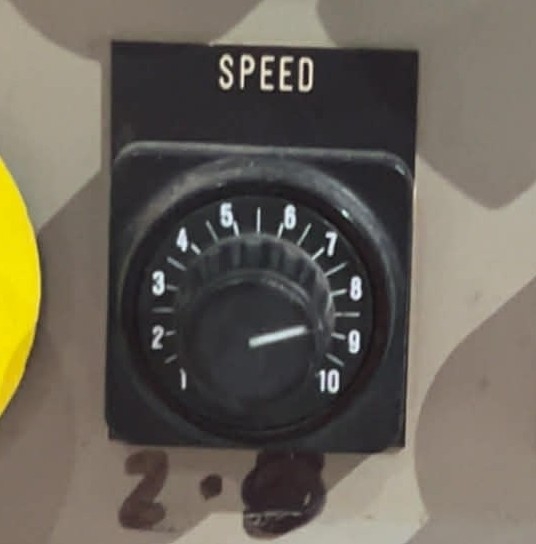

Set speed on dial to 8 while machine heats up.

Also when not in use

4
Step 4 of 13
<p><span>While machine is warming up</span></p><p><span>Brake to “Off”</span></p><p><span>Brush to “Off”</span></p><p><span>Heating is “On”</span></p><p><span style="line-height: 1.4;">Thickness indicator is panel thickness + 10mm</span></p>

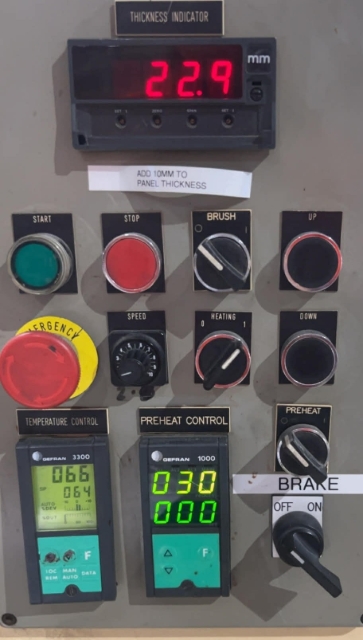

While machine is warming up

Brake to “Off”

Brush to “Off”

Heating is “On”

Thickness indicator is panel thickness + 10mm

5
Step 5 of 13
<p><span style="line-height: 1.4;">Slide carpeted board to Entry side and align to outer fence.</span></p>

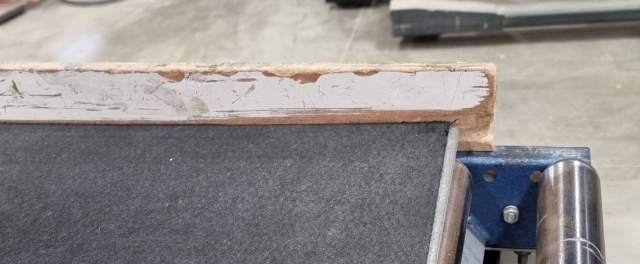

Slide carpeted board to Entry side and align to outer fence.

6
Step 6 of 13
<p><span style="line-height: 1.4;">Load board face down onto carpeted board</span></p>

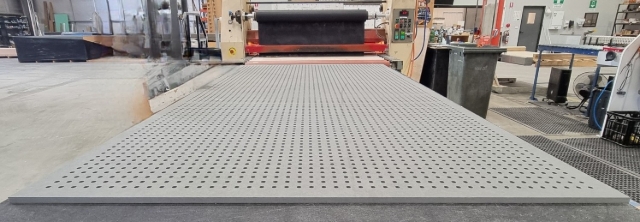

Load board face down onto carpeted board

7
Step 7 of 13
<p><span style="line-height: 1.4;">Reduce speed to 2.5</span></p>

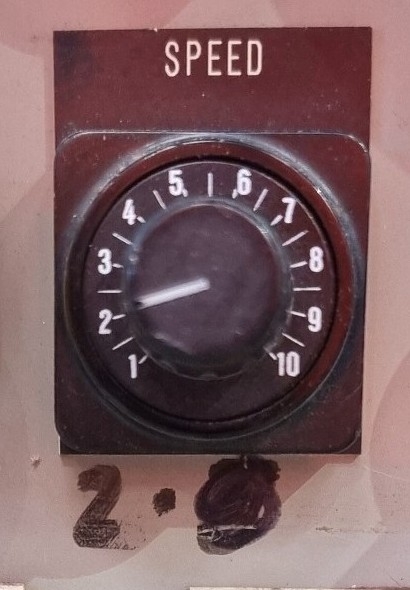

Reduce speed to 2.5

8
Step 8 of 13
<p><span>Ensure panel and runner are both lined up. Feed IAT down between Silver Roller and Red bar.</span></p><p><span style="line-height: 1.4;">Brake is “Off”</span></p>

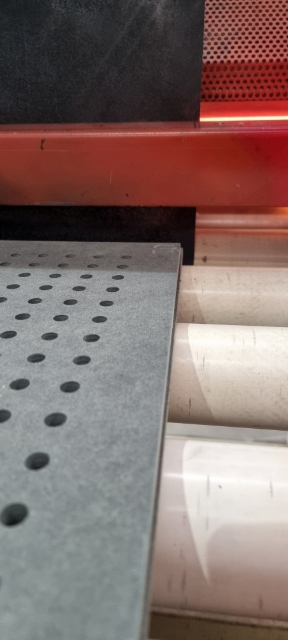

Ensure panel and runner are both lined up. Feed IAT down between Silver Roller and Red bar.

Brake is “Off”

9
Step 9 of 13
<p><span style="line-height: 1.4;">Once IAT catches to panel turn Brake “On”</span></p>

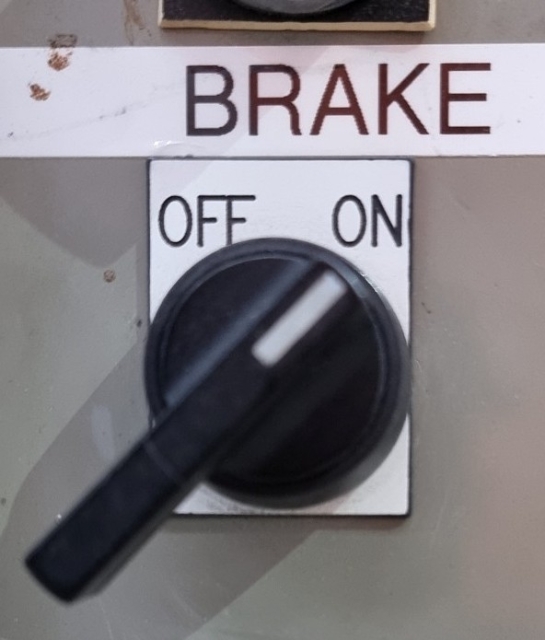

Once IAT catches to panel turn Brake “On”

10
Step 10 of 13
<p><span style="line-height: 1.4;">Once panel is through and free of rollers Turn Brake “Off” and slide cutting blade to cut IAT off roll.</span></p><p><span style="line-height: 1.4;">Cut IAT as board is just visible</span></p>

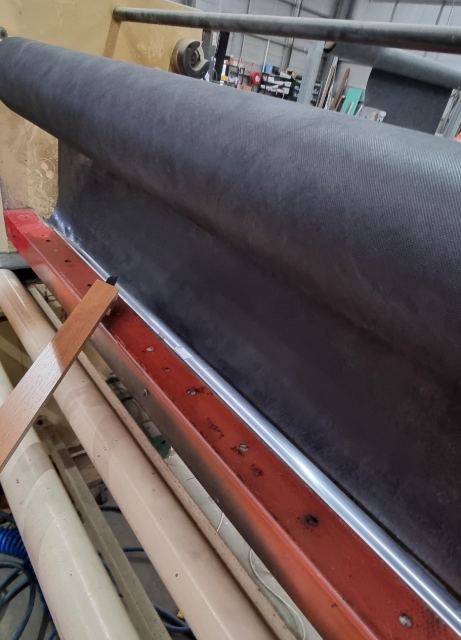

Once panel is through and free of rollers Turn Brake “Off” and slide cutting blade to cut IAT off roll.

Cut IAT as board is just visible

11
Step 11 of 13
<p><span style="line-height: 1.4;">Cut back to approx. 25mm from edge of panel and to ensure panel label is visible</span></p>

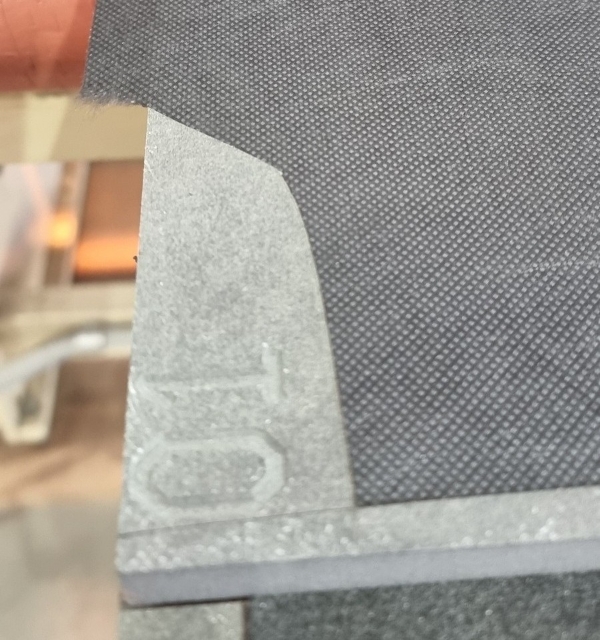

Cut back to approx. 25mm from edge of panel and to ensure panel label is visible

12
Step 12 of 13
<p><span style="line-height: 1.4;">Inspect IAT to ensure all bonded. Use Iron to fix lifted material</span></p>

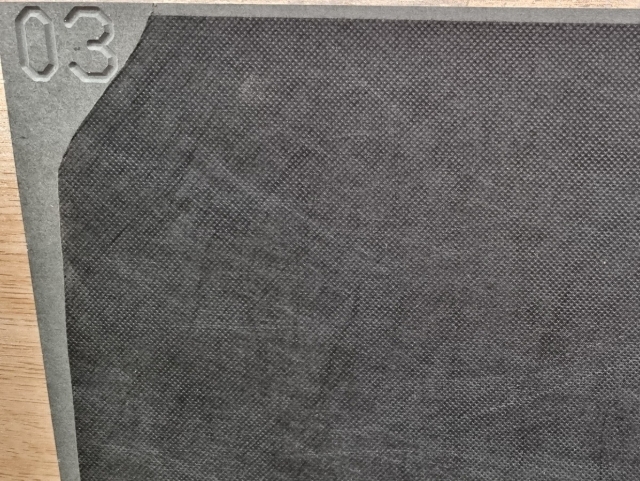

Inspect IAT to ensure all bonded. Use Iron to fix lifted material

13
Step 13 of 13

Slide carpeted board back to front of machine
