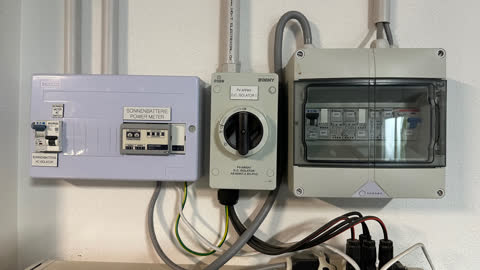

How the back up battery and power supply should look.
After a power outage sometimes the Sonnen battery switches and the main power board need to be reset
After a power outage sometimes the Sonnen battery switches and the main power board need to be reset
1
Step 1 of 9

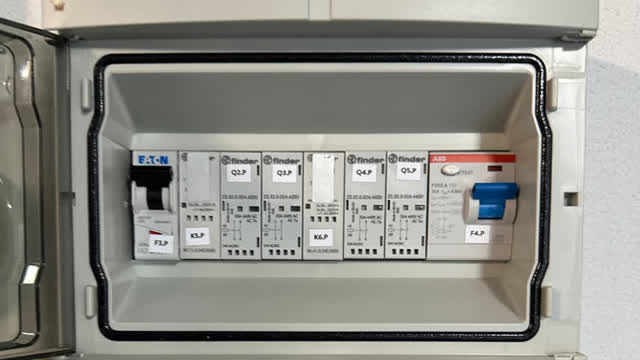

<p>This photo shows the right hand switches above the battery in the garage</p>

This photo shows the right hand switches above the battery in the garage

2
Step 2 of 9

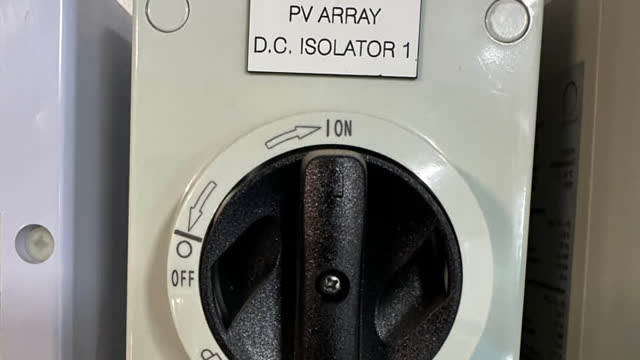

<p>This photo shows the centre switches above the battery in the garage</p>

This photo shows the centre switches above the battery in the garage

3
Step 3 of 9

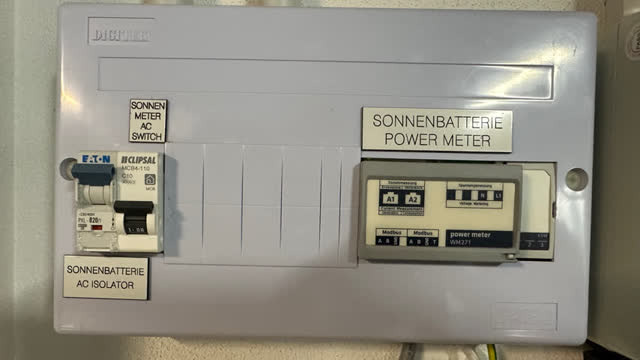

<p>This photo shows the left hand switches above the battery in the garage</p>

This photo shows the left hand switches above the battery in the garage

4
Step 4 of 9

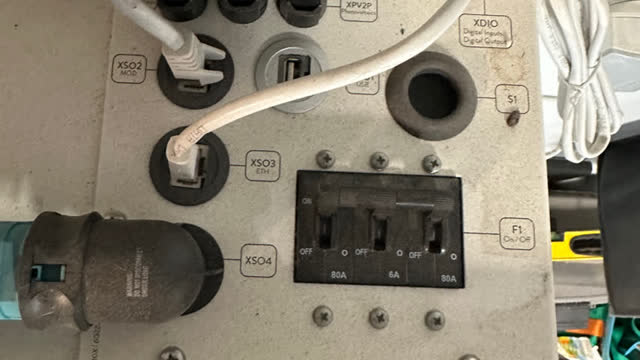

<p>This photo shows switches that are hard to see on top of the battery in the garage</p>

This photo shows switches that are hard to see on top of the battery in the garage

5
Step 5 of 9

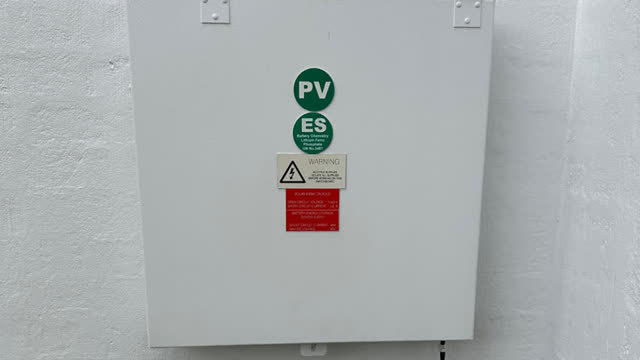

<p>Next go to the mains supply box on the right side of the house (looking from the street)</p>

Next go to the mains supply box on the right side of the house (looking from the street)

6
Step 6 of 9

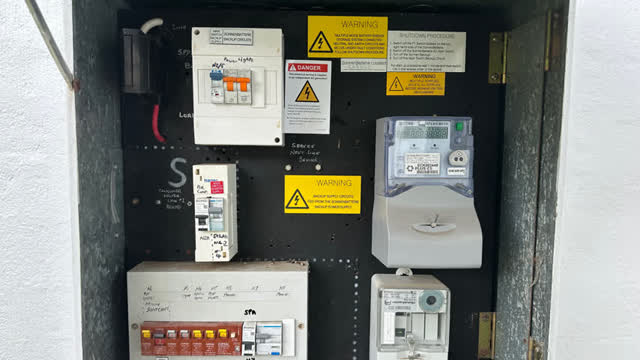

<p>Open the door and prop open with bar on the left side.</p>

Open the door and prop open with bar on the left side.

7
Step 7 of 9

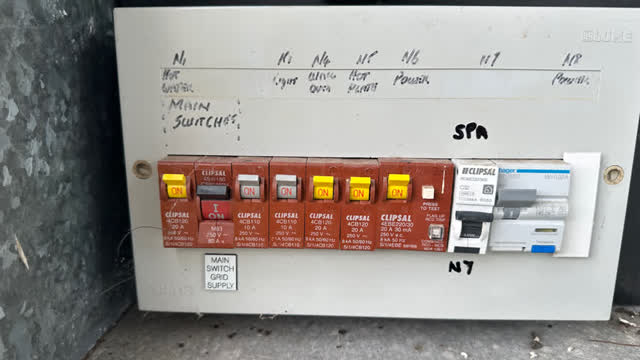

<p>Check each set of switches 1</p>

Check each set of switches 1

8
Step 8 of 9

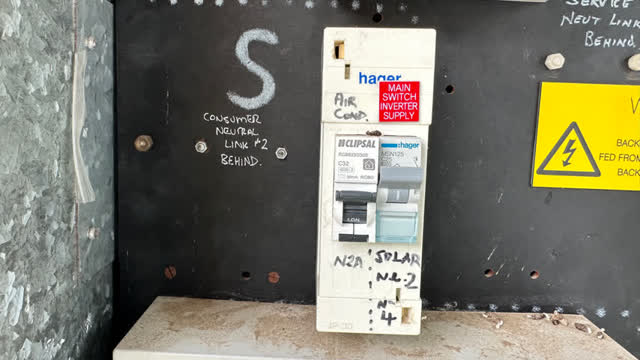

<p>Check each set of switches 2</p>

Check each set of switches 2

9
Step 9 of 9

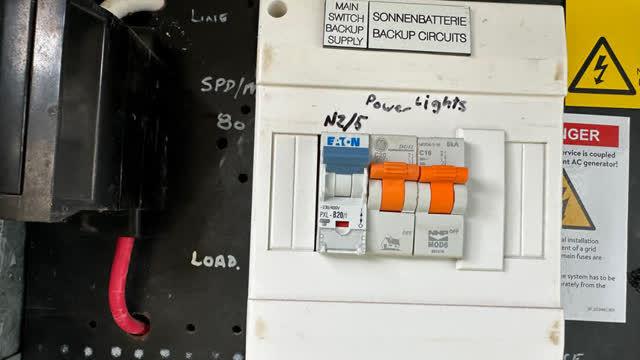

<p>Check each set of switches 3</p>

Check each set of switches 3
