How to install the new Clamp On Breaker Lockout with Slide

1

Step 1 of 6

No tools needed. Choose the right size for your voltage level.

2

Step 2 of 6

With the breaker in the off position, slide the device over the switch.

3

Step 3 of 6

Turn the thumb wheel clockwise until tight.

4

Step 4 of 6

For switches with longer throws, attach the locking cleat to the base of the device.

5

Step 5 of 6

Some models allow you to adjust the cleat's position. Make sure the cleat fits in the recessed area of the breaker.

6

Step 6 of 6

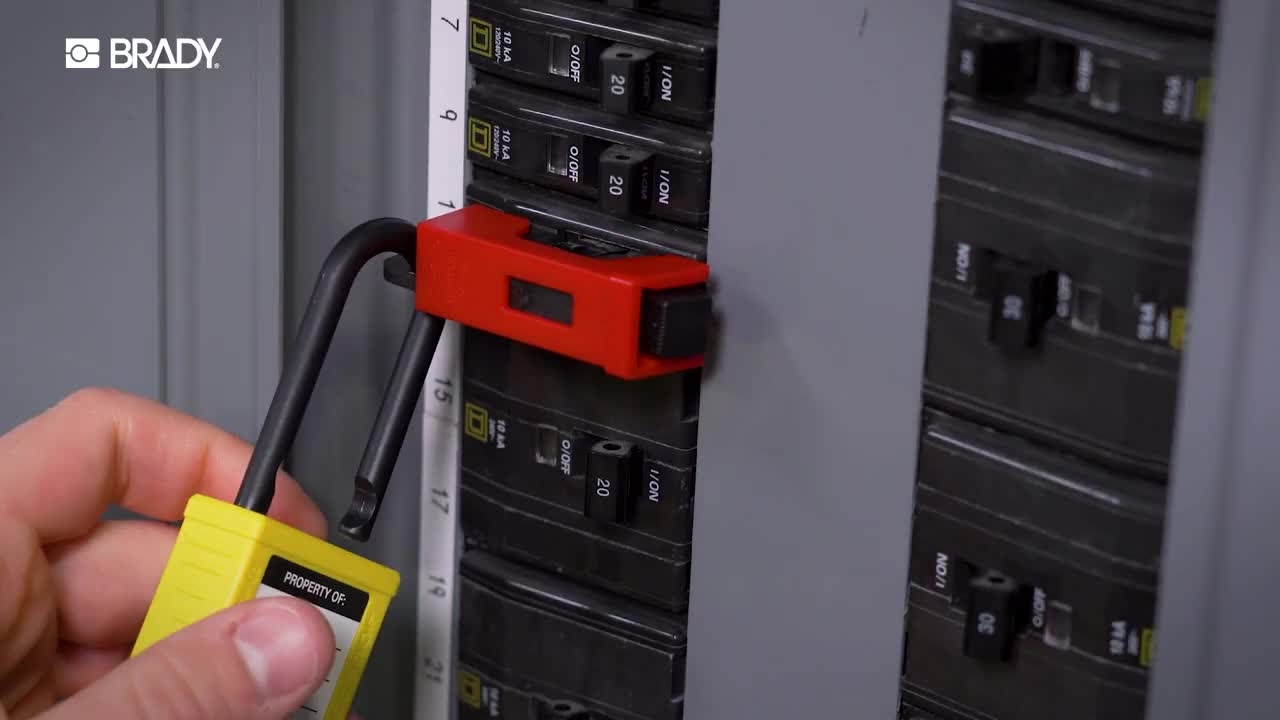

Once tightened, slide the cover to reveal the lock hole and insert a padlock to secure.
