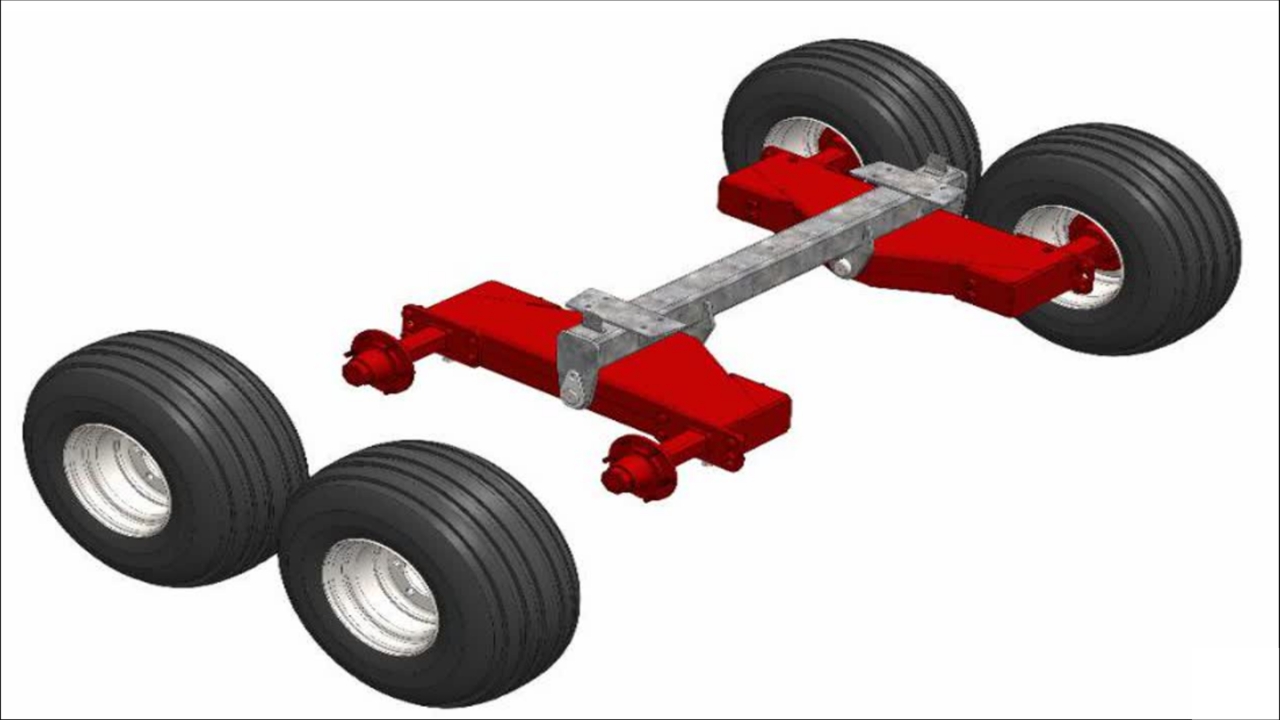

Reassemble Axles After Shipping
This is a Knowby on how to Reassemble a modular axle after it has been removed from a shipping Container.
This is a Knowby on how to Reassemble a modular axle after it has been removed from a shipping Container.
1
Step 1 of 8

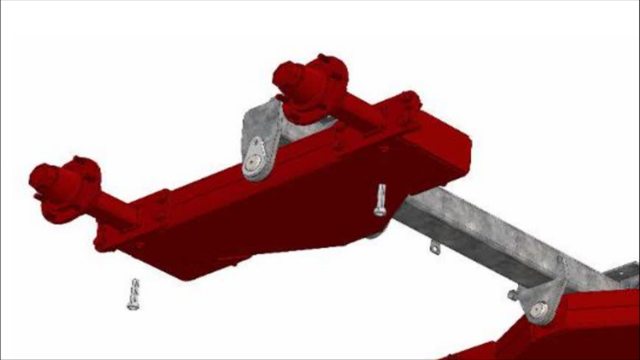

<p><span>Remove the camber Stop Bolts.</span><br></p>

Remove the camber Stop Bolts.

2
Step 2 of 8
<p><span>Remove the Hub sleeve fasteners.</span><br></p>

Remove the Hub sleeve fasteners.

3
Step 3 of 8

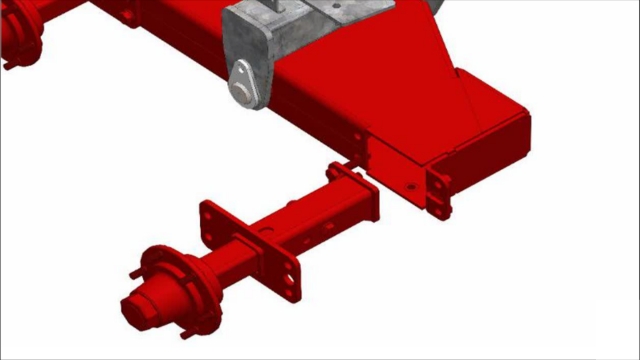

<p><span>Remove the hub and hub sleeve.</span><br></p>

Remove the hub and hub sleeve.

4
Step 4 of 8

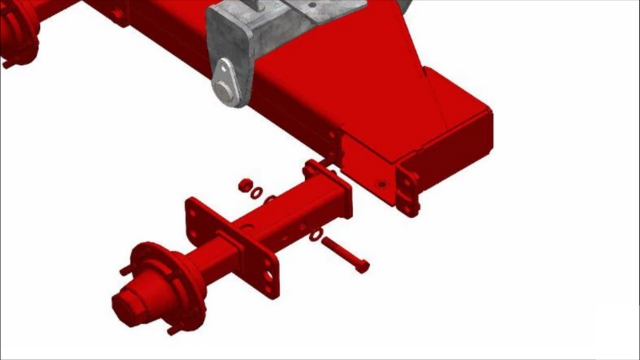

<p><span>Insert the hub retainer bolt.</span></p><p>Make sure the hub offset is correct for the intended wheels.</p>

Insert the hub retainer bolt.

Make sure the hub offset is correct for the intended wheels.

5
Step 5 of 8
<p><span>Reinsert the hub and hub sleeve.</span><br></p>

Reinsert the hub and hub sleeve.

6
Step 6 of 8

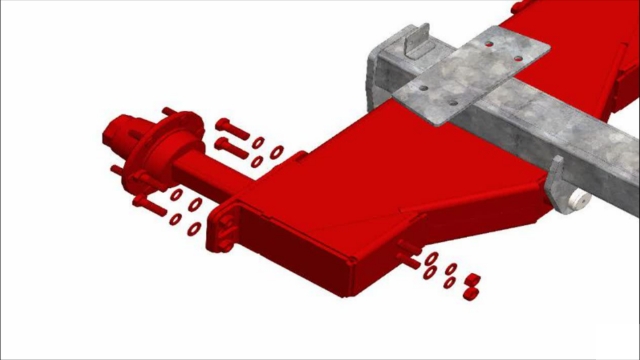

<p><span>Reinsert the hub sleeve fasteners.</span></p><p><strong>Use the nylock nuts from the box of fasteners provided with the machine.</strong></p>

Reinsert the hub sleeve fasteners.

Use the nylock nuts from the box of fasteners provided with the machine.

7
Step 7 of 8
<p><span>Reinsert the camber Stop Bolts and tighten the locking nuts.</span><br></p>

Reinsert the camber Stop Bolts and tighten the locking nuts.

8
Step 8 of 8

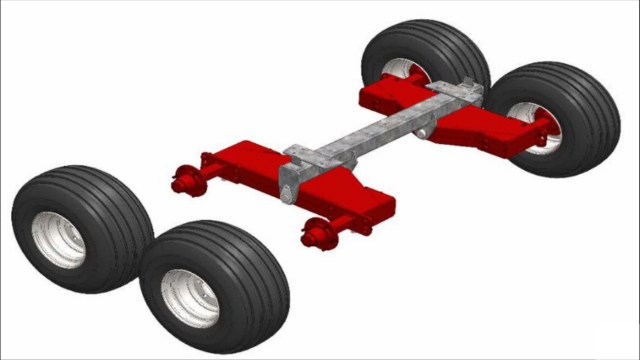

<p><span>Replace the Shipping rims with the wheels.</span><br></p>

Replace the Shipping rims with the wheels.
