Santos Drawers, Fabrication
1
Step 1 of 14

Finished set looks like this - ready for powder coat.

2
Step 2 of 14
<p>Tools Required:&nbsp;</p><ul><li>Rivet Gun</li><li>5mm Stainless Rivets</li></ul>

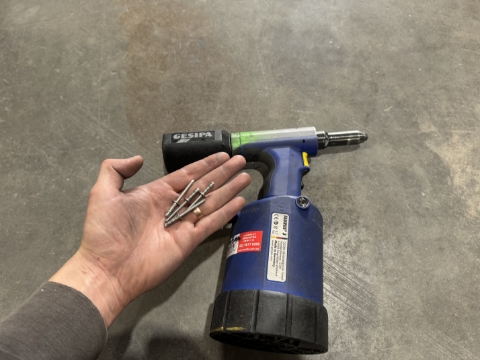

Tools Required:

  • Rivet Gun
  • 5mm Stainless Rivets
3
Step 3 of 14

Start by making the 3 x Drawers.

Part Number: 320-008

4
Step 4 of 14

Identify the Drawer Body. 320-008-02


The 2 x holes close together go to the FRONT of the drawer



5
Step 5 of 14

Identify the Drawer Face. 320-008-01

Rivet it together.



6
Step 6 of 14

Identify the back of drawer. 320-008-03


Rivet it on



7
Step 7 of 14

A finished Drawer looks like this

8
Step 8 of 14

Now build the Carcase. 320-007


It will look like this when complete.


9
Step 9 of 14

Identify the main piece of the Carcase. 320-007-01

Put it on you table like this.

10
Step 10 of 14
<p>Fit the back.&nbsp;<strong>320-007-03</strong></p><p><br></p><p><br></p>

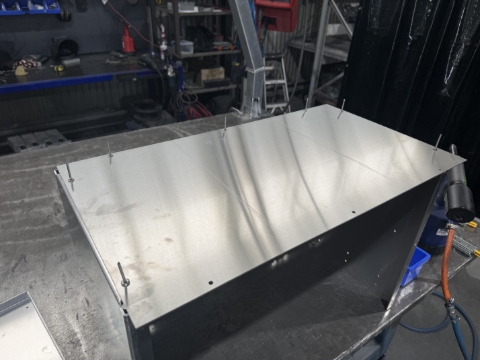

Fit the back. 320-007-03



11
Step 11 of 14

Fit the top lid. 320-007-02


12
Step 12 of 14

TIG weld front corners of Lid

13
Step 13 of 14
<p>The finished Carcase looks like this</p>

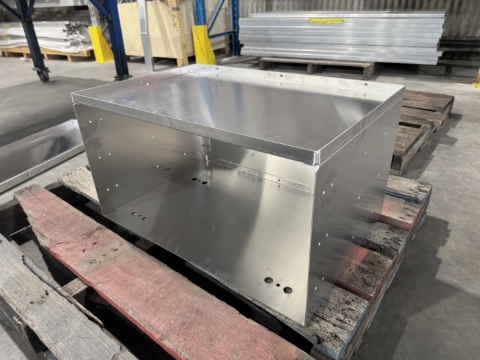

The finished Carcase looks like this

14
Step 14 of 14

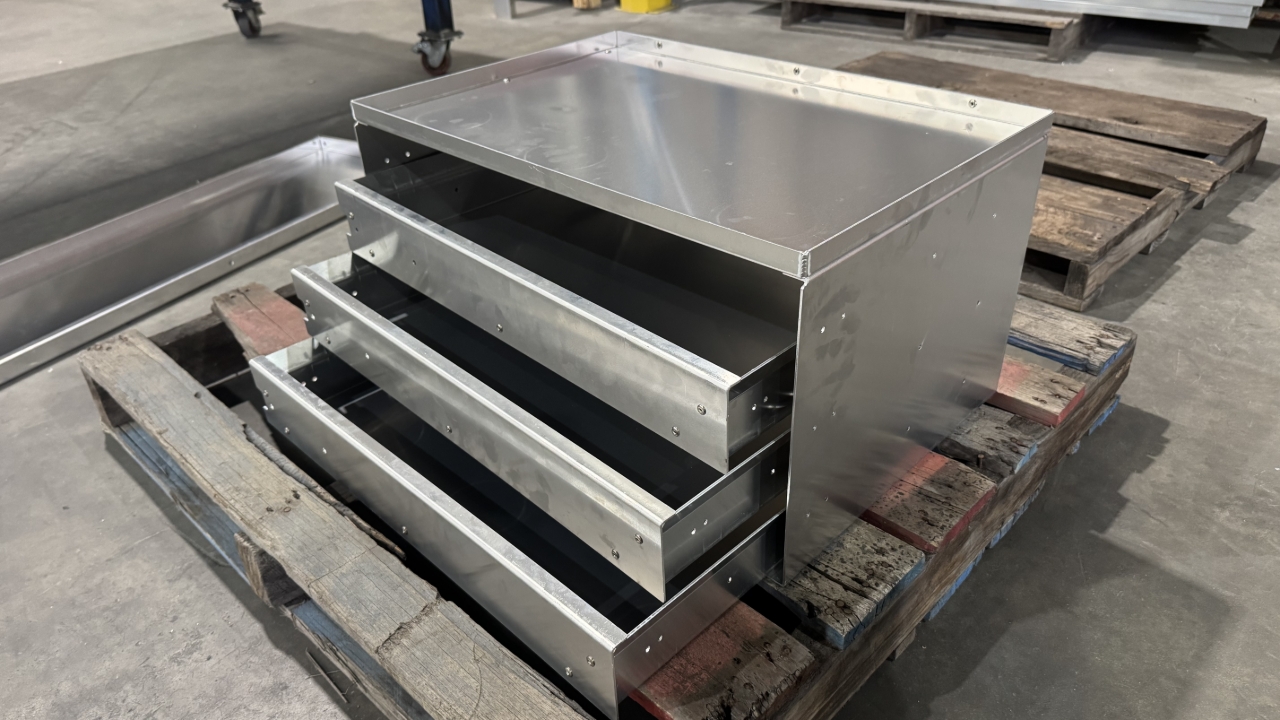

The finished set looks like this.


Ready to go to Powder Coating.
