Re-Fit Camera: Ford Ranger/Mazda BT50 with Tub
1
Step 1 of 9Suits Ranger 2012-Present Suits BT50 2012-2020
2

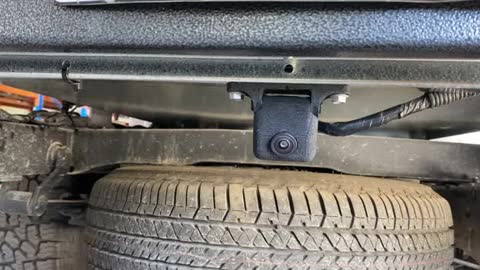

Step 2 of 9Looks like this when done.
Note: this one is fit to a Tray which has a drawer. Similar
3
Step 3 of 9Identify harness and plug in on drivers side
Note: it will also plug into the passenger side- but don’t do that, as that plug is for the reversing sensors
4
Step 4 of 9Identify supplied camera bracket
It is marked with “CB001”
5
Step 5 of 9Here’s a trick!
“F” for Ford to the top, clip into bracket. That way you will get it the right way up
6
Step 6 of 9Plug in harness to camera
7
Step 7 of 9Connect and tighten. 10mm
8
Step 8 of 9Adjust camera so it is pointing slightly down
9
Step 9 of 9

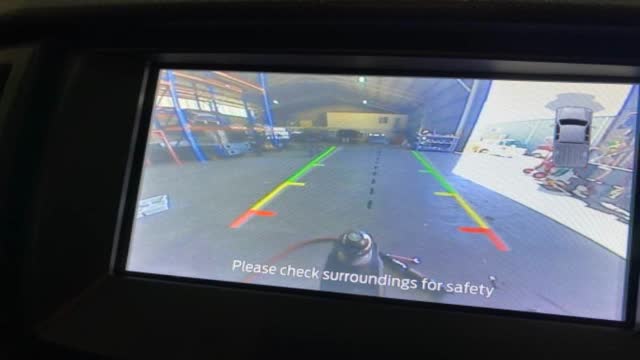

Verify it is working when vehicle is in reverse
Make sure it is pointing at a nice angle
