Fit Rear Toolbox
1
Step 1 of 10

TIP: Fit Toolboxes BEFORE trying to fit the one piece "Flared Mud Guards", much easier to do it in this order.

2
Step 2 of 10
<p><strong>Tools Required</strong></p> <ul> <li>Loctite (Medium Strength - Blue)</li> <li>13mm</li> </ul>

Tools Required

  • Loctite (Medium Strength - Blue)
  • 13mm
3
Step 3 of 10

Find the pack of supplied Fasteners

4
Step 4 of 10

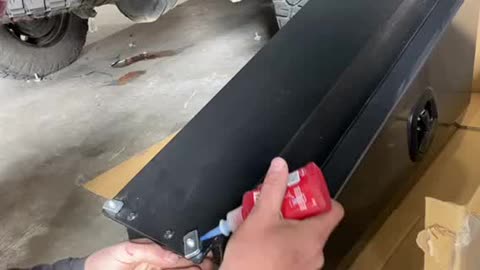

Apply Loctite to threads, wind the channel nut out

5
Step 5 of 10

Position toolbox to Tray

6
Step 6 of 10

Push the bolt up and rotate 90 degrees to lock into track

7
Step 7 of 10

Fit Flared Mud Guard!

The ideal position of the Toolbox is set by the Mud guards. Usually, you want a nice gap between the Mud guard and tyre.

8
Step 8 of 10

13mm ratchet spanner

9
Step 9 of 10

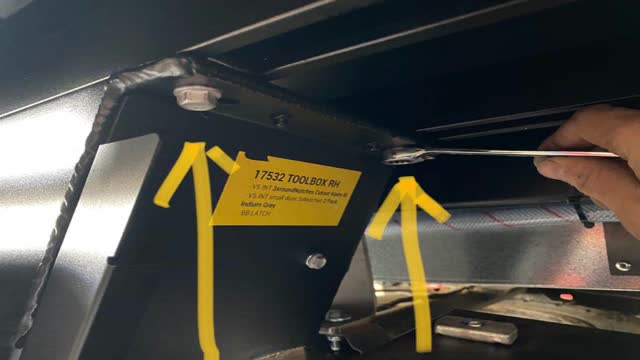

<p>Or, if space is limited, removed the Mud guard fir better access.</p> <p>Like this, 13mm</p>

Or, if space is limited, removed the Mud guard fir better access.

Like this, 13mm

10
Step 10 of 10

(Viewed from underneath)

Rear bolts, 13mm ratchet spanner. Space is tight, however it is possible.
