UHF Mount Instructions - UMTP1
Prado 150 Tools needed: 10mm spanner or socket
Prado 150 Tools needed: 10mm spanner or socket
1
Step 1 of 5

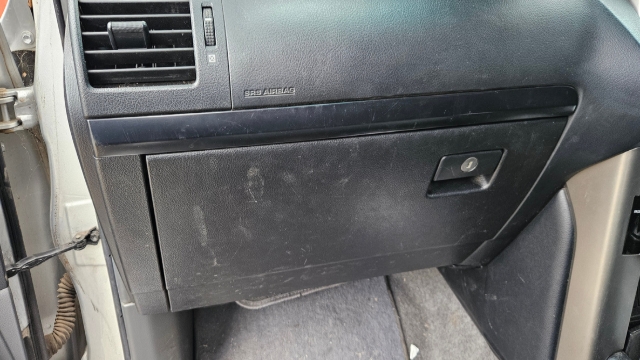

<p><strong>Step 1:</strong> Remove glove box (1), trim piece (2) and side panel.</p><p>Glove box sides need to be squeezed together to allow it to rotate all the way forwards to be then unclipped from the hinge. Panels are just held by clips.</p>

Step 1: Remove glove box (1), trim piece (2) and side panel.

Glove box sides need to be squeezed together to allow it to rotate all the way forwards to be then unclipped from the hinge. Panels are just held by clips.

2
Step 2 of 5
<p>Step 2: Remove screw (1) and pop out baseplate (2).</p>

Step 2: Remove screw (1) and pop out baseplate (2).

3
Step 3 of 5

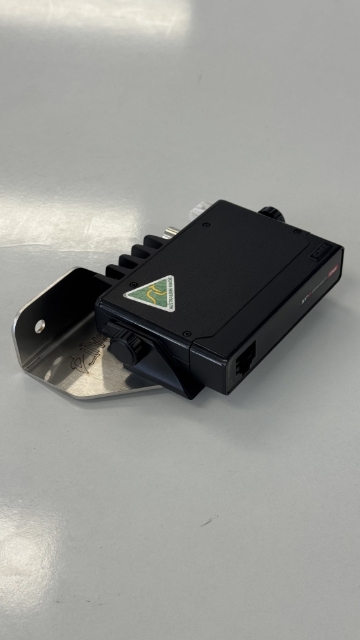

<p>Bolt the UHF to the bracket prior to fitting it to the vehicle.</p>

Bolt the UHF to the bracket prior to fitting it to the vehicle.

4
Step 4 of 5

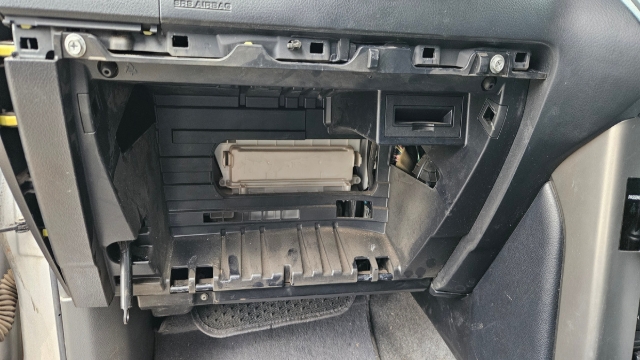

<p>Step 3: Remove bolts indicated.</p>

Step 3: Remove bolts indicated.

5
Step 5 of 5

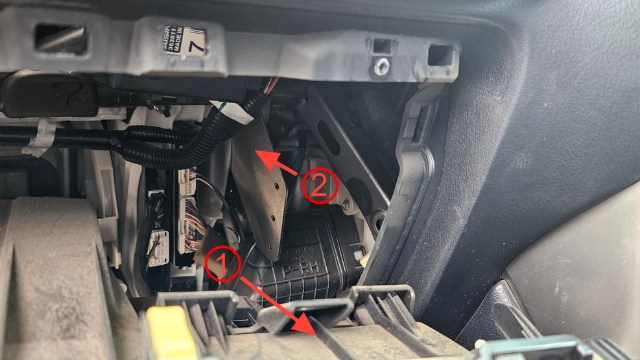

<p>Step 4: Pop the rear panel (1) out partially and flex it forward to gain access to the cavity.</p><p>Pictured is the mounting location of the bracket (2).</p><p></p>

Step 4: Pop the rear panel (1) out partially and flex it forward to gain access to the cavity.

Pictured is the mounting location of the bracket (2).
