Tool Centre Point Alignment
Once a month (or after any crash !) it is important to check your tool centre point. An accurate TCP is essential
Once a month (or after any crash !) it is important to check your tool centre point. An accurate TCP is essential
1
Step 1 of 10

This Knowby still needs to be completed. The first half is not yet done. Will and Derek to film and do it to comple it ASAP***

2
Step 2 of 10

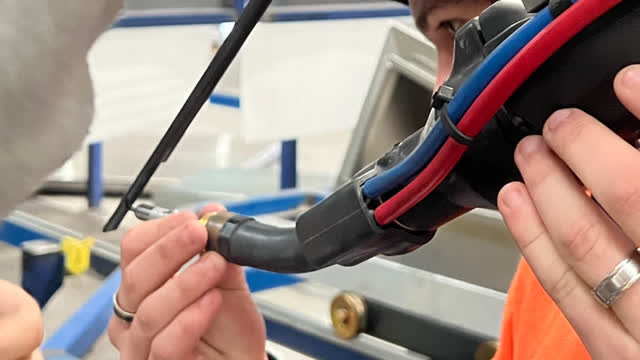

<p>Line up with point marked on the tool alignment gauge</p>

Line up with point marked on the tool alignment gauge

3
Step 3 of 10

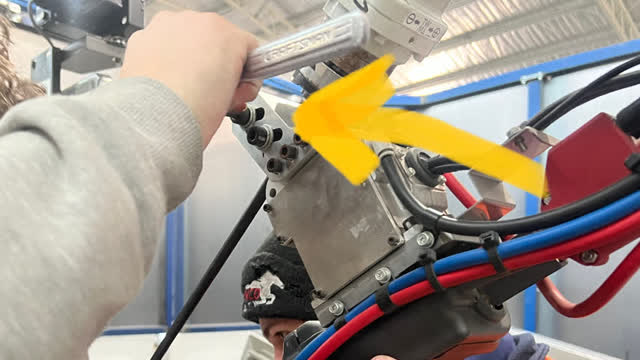

<p>Tighten up. M6 hex head tool required.</p>

Tighten up. M6 hex head tool required.

4
Step 4 of 10

Take out teaching tip

5
Step 5 of 10

Remove alignment gauge, store it safely

6
Step 6 of 10

Refit welding tip

7
Step 7 of 10

Tighten tip

8
Step 8 of 10

Refit nozzle. Hand tight is ok

9
Step 9 of 10

Put the plug in. This prevents dusts getting in.

10
Step 10 of 10

Nip up the grub screw . Not too tight!
