Ineos Wiring
1
Step 1 of 4

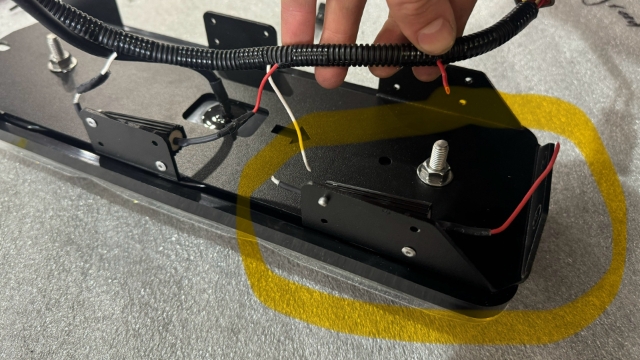

<p>Trim the wires which are connected to this load resistor. It is the one closest to the plug on the LED tail light. This resistor is on the indicator circuit. We trimmed these wires as it is not required on the Ineos Grenadier</p>

Trim the wires which are connected to this load resistor. It is the one closest to the plug on the LED tail light. This resistor is on the indicator circuit. We trimmed these wires as it is not required on the Ineos Grenadier

2
Step 2 of 4

Trim the extra wire shorter

3
Step 3 of 4

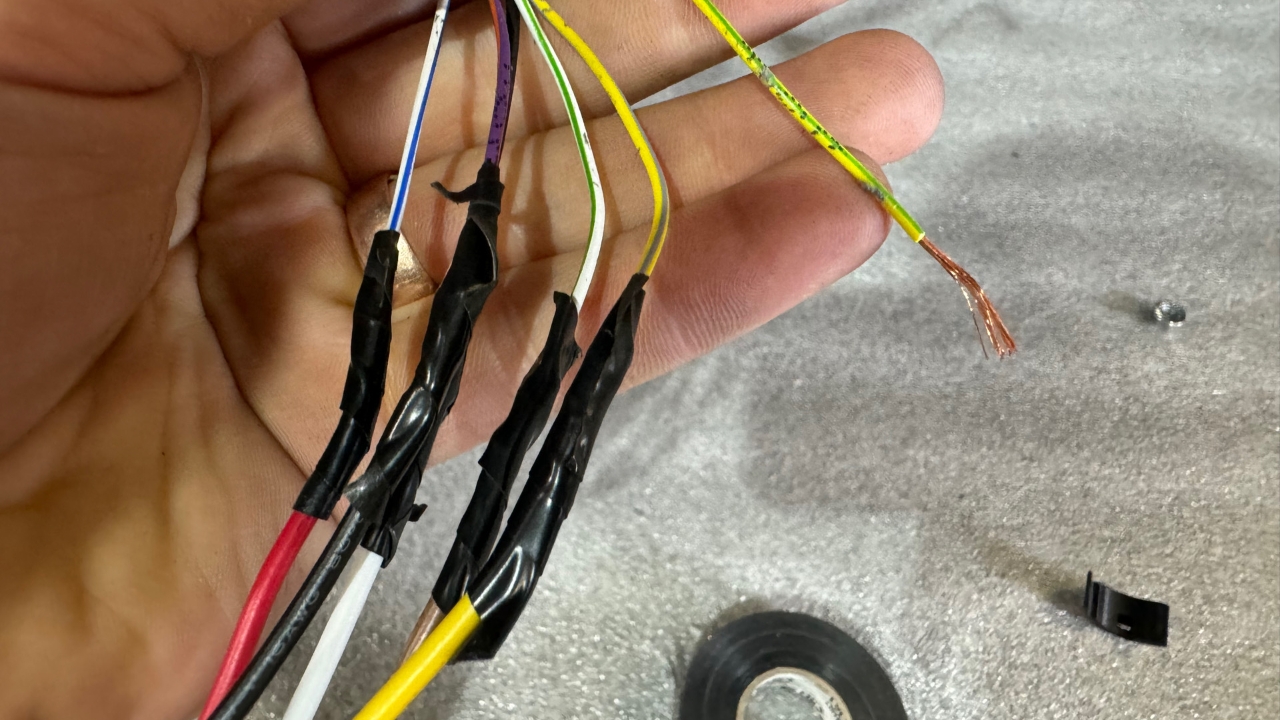

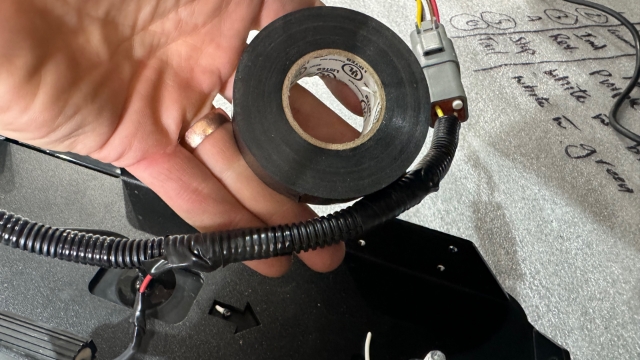

<p>Use electrical tape to tape up the wires neatly</p>

Use electrical tape to tape up the wires neatly

4
Step 4 of 4

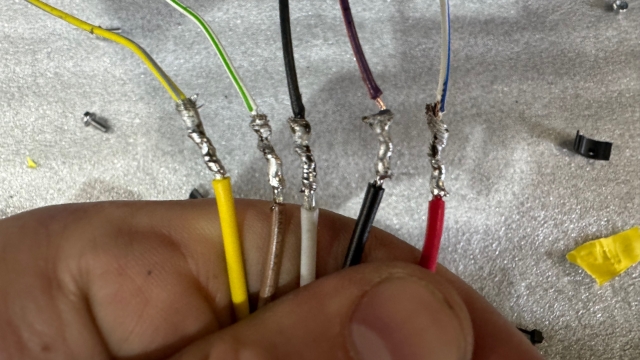

<p>Passenger side</p> <p>Bottom wires (LED), top wires is vehicle harness.</p> <ul> <li>Yellow (indicator) to yellow with light purple stripe</li> <li>Brown (park) to white with green stripe</li> <li>White (earth) to black</li> <li>Black (reverse) to purple with red stripe</li> <li>Red (stop) to white with blue stripe</li> </ul>

Passenger side

Bottom wires (LED), top wires is vehicle harness.

  • Yellow (indicator) to yellow with light purple stripe
  • Brown (park) to white with green stripe
  • White (earth) to black
  • Black (reverse) to purple with red stripe
  • Red (stop) to white with blue stripe
