Re-Fit Reversing Sensors: Ford F150 2023+
1
Step 1 of 12

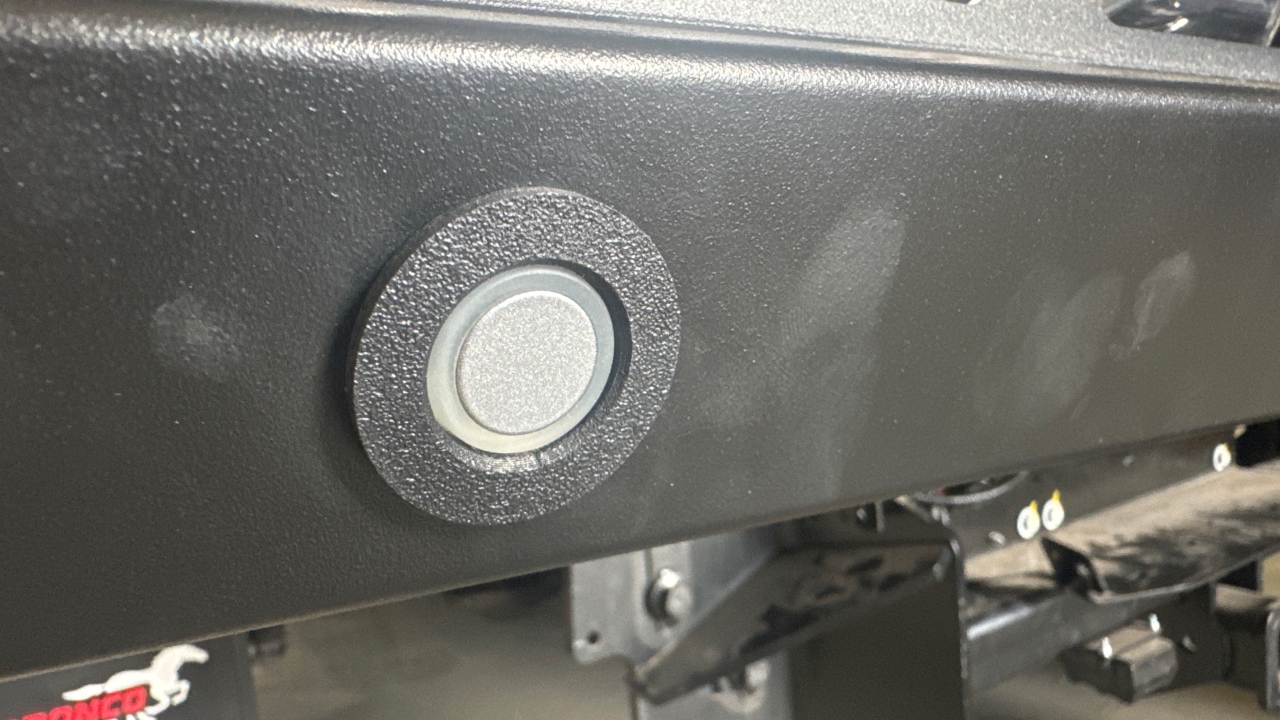

It should look like this when done

2
Step 2 of 12

Identified the supplied 3-D printers sensor brackets. They should be part number SBV024.

3
Step 3 of 12

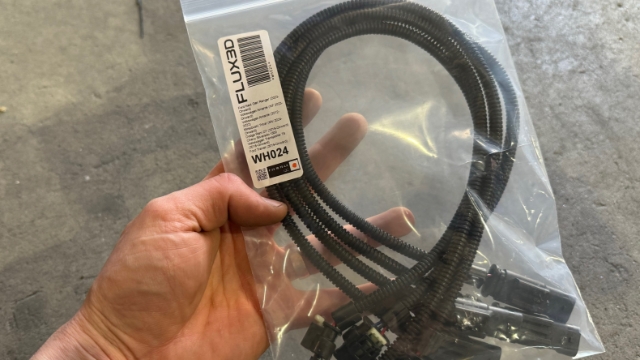

<p>Identify the sensor extension harnesses. They should be part number WH024.</p>

Identify the sensor extension harnesses. They should be part number WH024.

4
Step 4 of 12

Twist the Laser cut blanking plugs out

5
Step 5 of 12

Fit the 3-D printed sensor holder and retaining nut

6
Step 6 of 12

Remove the original reversing sensors from the factory bumper

7
Step 7 of 12

Push reversing sensor in from the back side. It should click into place when installed correctly.

8
Step 8 of 12

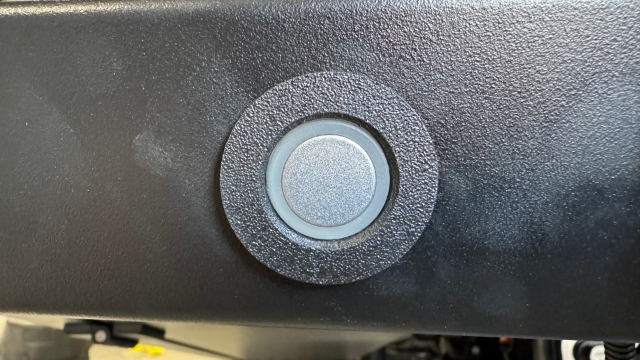

<p>It should look like this if installed correctly the clear plastic food around the sensor should not be pinched anywhere. It should be all the way around.</p>

It should look like this if installed correctly the clear plastic food around the sensor should not be pinched anywhere. It should be all the way around.

9
Step 9 of 12

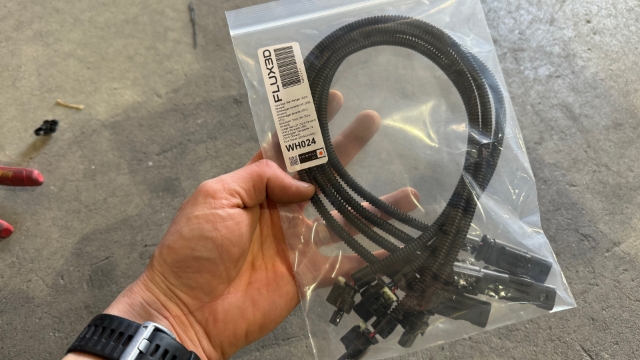

<p>Get the sensor extension harnesses</p>

Get the sensor extension harnesses

10
Step 10 of 12

Add the extension harnesses and Connect to the sensors

11
Step 11 of 12

With a second person, check to make sure working correctly

12
Step 12 of 12

Zip tie up all the wiring neatly
