Re-Fit Camera: Hilux, "Cab Chassis" Variant
1
Step 1 of 6

Suits 2020-Present Model

2
Step 2 of 6

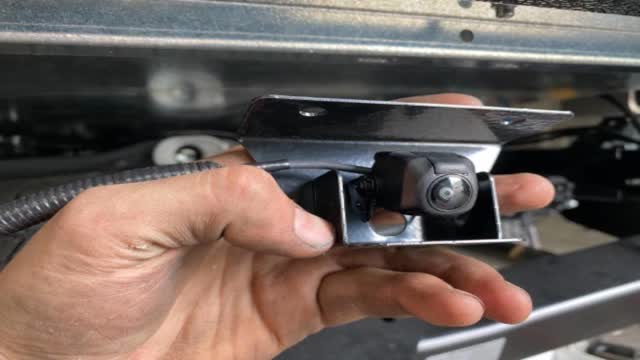

<p>Camera and bracket supplied by Toyota</p>

Camera and bracket supplied by Toyota

3
Step 3 of 6

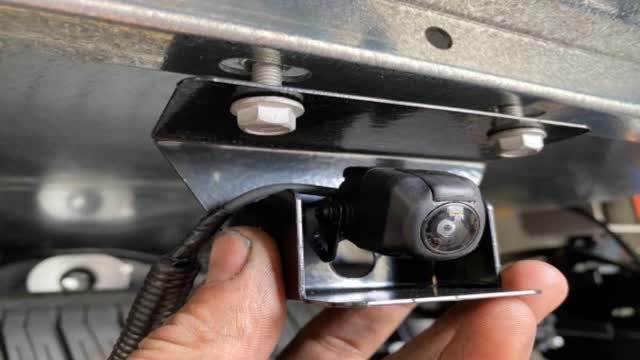

<p>Fasten it <strong><strong>bolts not supplied by Bronco</strong></strong></p> <p>To either the underside of Drawer (shown above) or to underside of “Licence plate panel “</p>

Fasten it bolts not supplied by Bronco

To either the underside of Drawer (shown above) or to underside of “Licence plate panel “

4
Step 4 of 6

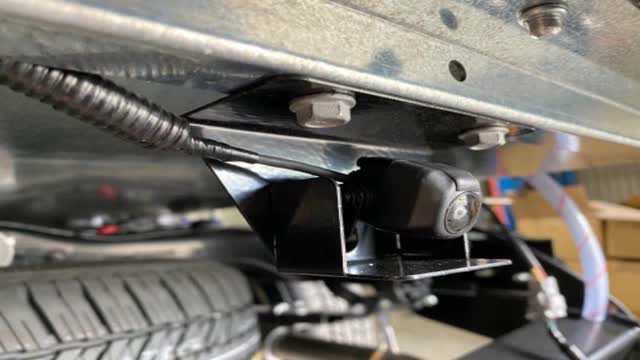

<p>Fitted looks like this</p>

Fitted looks like this

5
Step 5 of 6

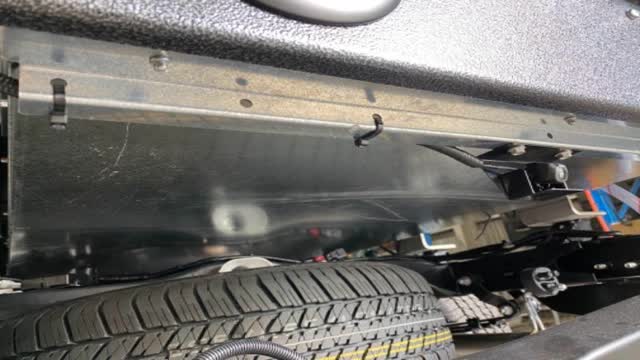

<p>Secure wiring neatly with zip ties.</p>

Secure wiring neatly with zip ties.

6
Step 6 of 6

Check that is working when vehicle put in reverse. Adjust angle of bracket if required.
