FUEL FILLER, D-MAX/BT-50 DC

Knowby

FUEL FILLER, D-MAX/BT-50 DC

1

Step 1 of 13

2

Step 2 of 13

Contents (Click to view)

STEP 3: Components List

STEP 5: Tools List

STEP 6: Torque Values

STEP 7: Fuel Filler Preparation

STEP 9: Fuel Filler Installation

STEP 13: QA Sheet

3

Step 3 of 13

4

Step 4 of 13

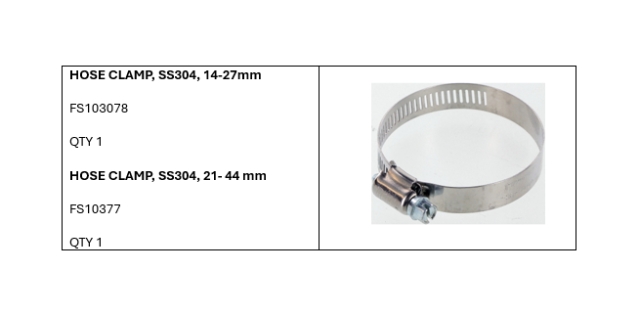

<p>Components List</p>

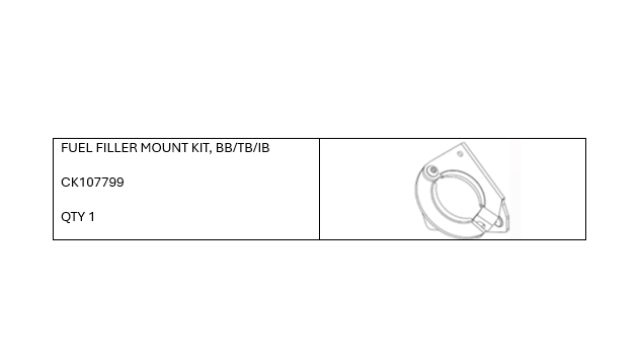

Components List

5

Step 5 of 13

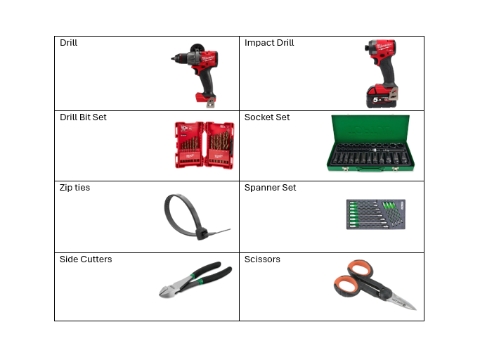

<p>Tools List</p>

Tools List

6

Step 6 of 13

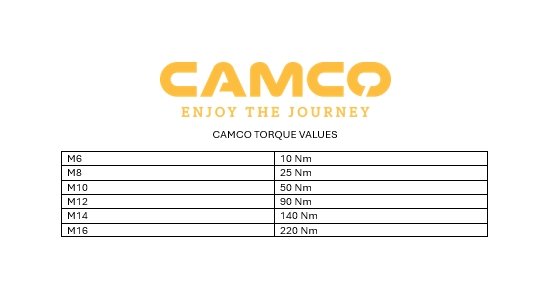

<p>Torque Values</p>

Torque Values

7

Step 7 of 13

<p>If there is a sock on the fuel filler, ensure that this is removed.</p>

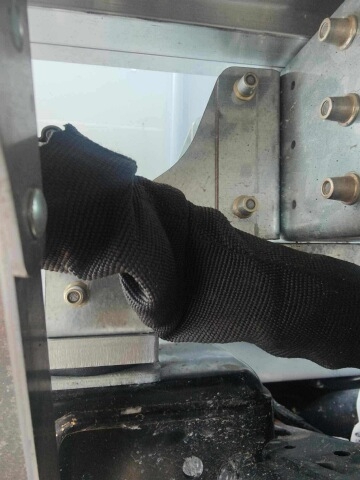

If there is a sock on the fuel filler, ensure that this is removed.

8

Step 8 of 13

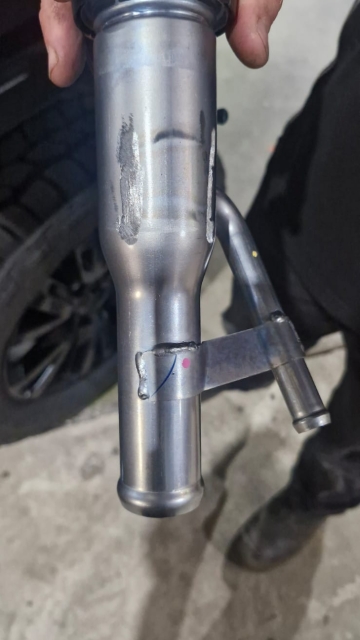

<p>Cut the welds off as shown.</p>

Cut the welds off as shown.

9

Step 9 of 13

<p>Use the original fuel hose and breather hose; no cuts needed.</p>

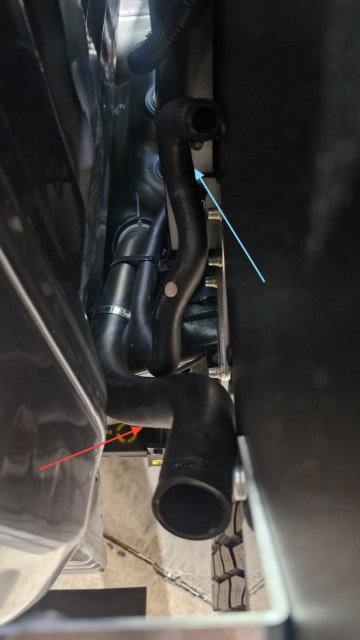

Use the original fuel hose and breather hose; no cuts needed.

10

Step 10 of 13

<p>Fit the fuel filler to the hoses. Clamp the hoses to the fuel filler.</p>

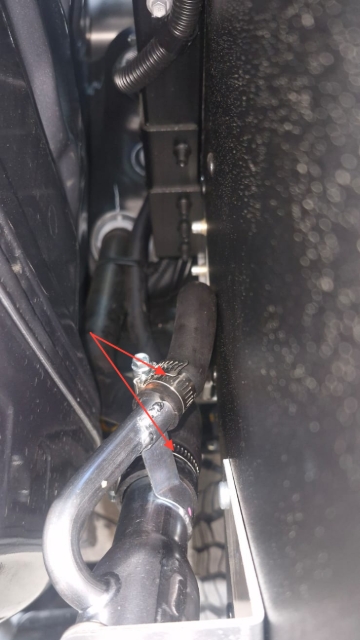

Fit the fuel filler to the hoses. Clamp the hoses to the fuel filler.

11

Step 11 of 13

<p>Fit the fuel filler to the bracket.</p>

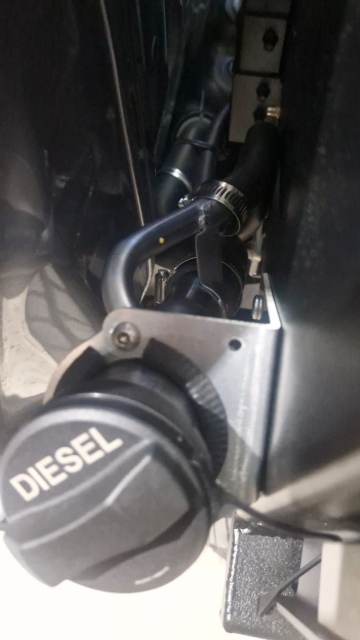

Fit the fuel filler to the bracket.

12

Step 12 of 13

<p>Finished.</p>

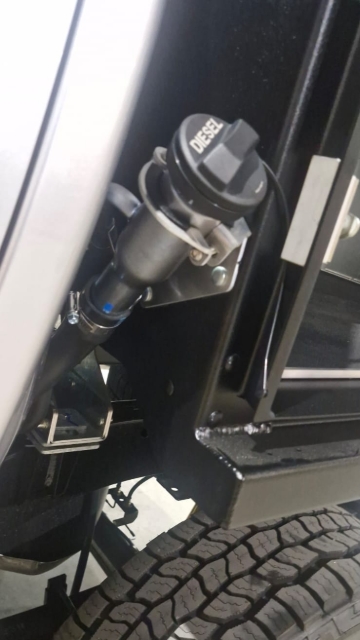

Finished.

13

Step 13 of 13

<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p> </p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
