TC Trailcore Central Locking Loom Modification
1
Step 1 of 3

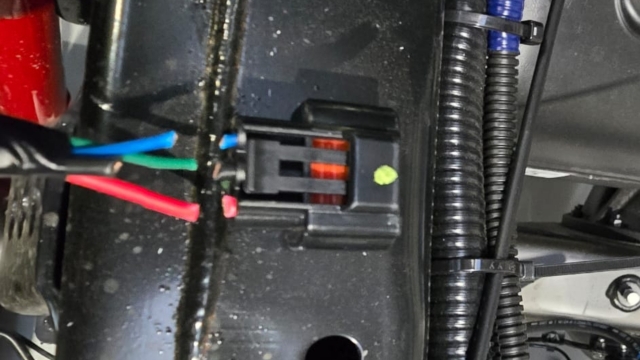

<p>Cut off the existing accessory end plug</p>

Cut off the existing accessory end plug

2
Step 2 of 3

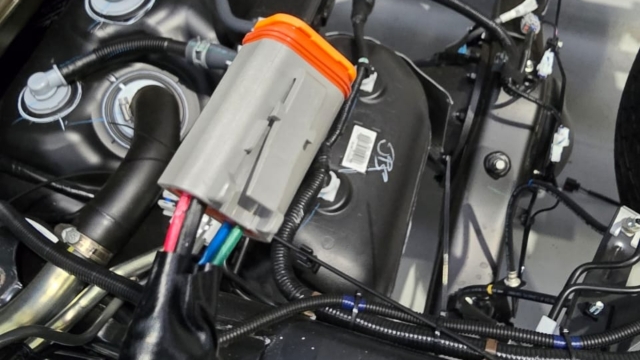

<p>Install a deutsch plug as below:</p> <p>Unlock - Green - 1</p> <p>Lock - Blue - 2</p> <p>Positive - Red -3</p> <p>Earth - Black - 4</p>

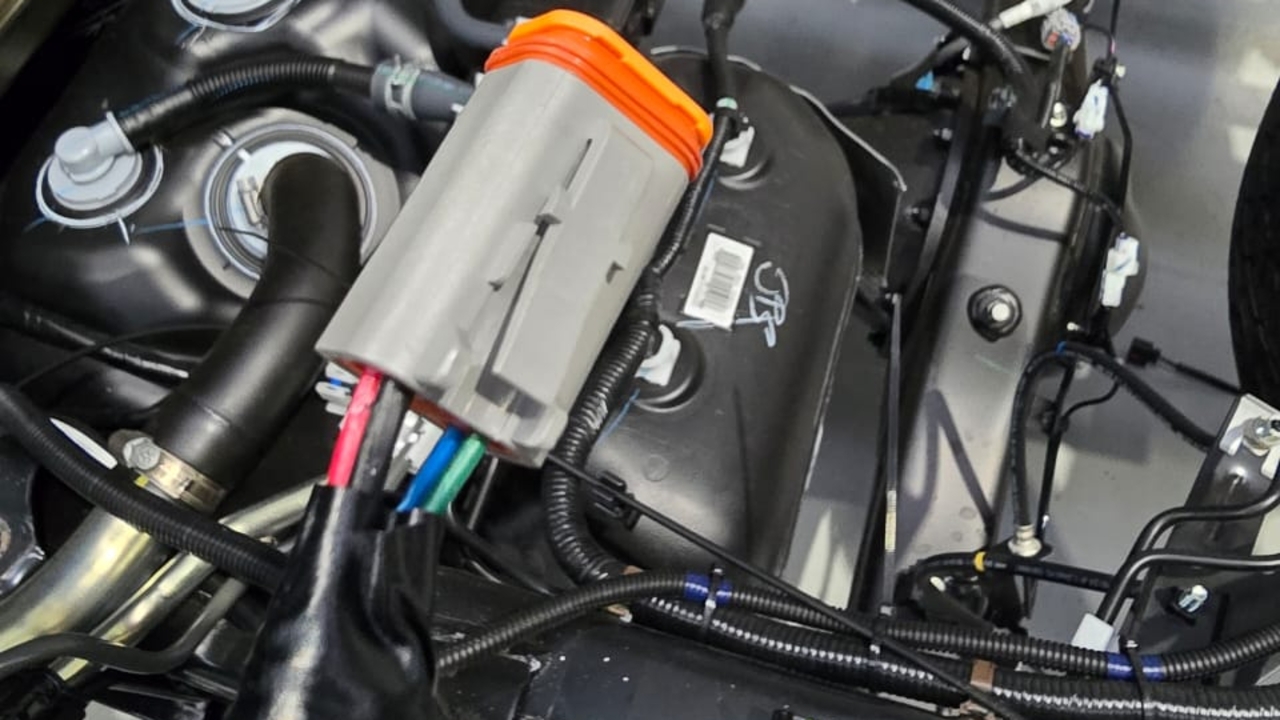

Install a deutsch plug as below:

Unlock - Green - 1

Lock - Blue - 2

Positive - Red -3

Earth - Black - 4

3
Step 3 of 3

Fuse / Holder Install Required - Hilux Only
