Fit "Infill Step" (Tray with Flared Guards)

Knowby

Fit "Infill Step" (Tray with Flared Guards)

1

Step 1 of 10

Shown here on Hilux Extra Cab, May vary in size on other models (some are smaller, some are larger)

2

Step 2 of 10

Looks like this when done

3

Step 3 of 10

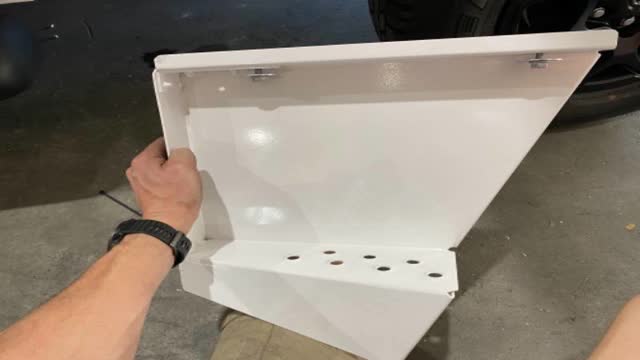

<p>Identify supplied "Infill Step"</p>

Identify supplied "Infill Step"

4

Step 4 of 10

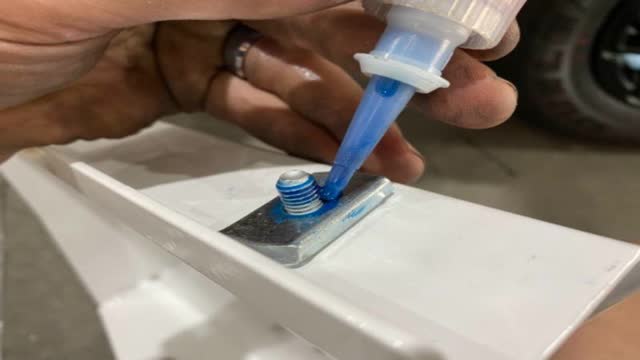

<p>Apply Loctite to thread</p>

Apply Loctite to thread

5

Step 5 of 10

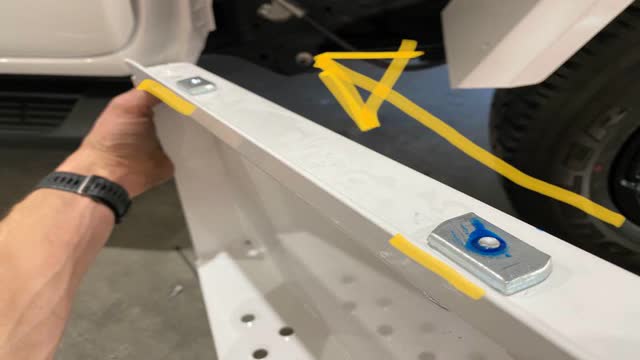

<p>Align "Channel Nuts"</p>

Align "Channel Nuts"

6

Step 6 of 10

Put on. Push up and rotate to lock

7

Step 7 of 10

Inside of guard

8

Step 8 of 10

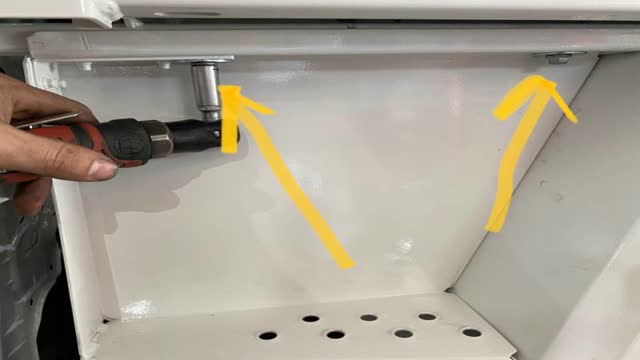

<p>Tighten, 13mm</p>

Tighten, 13mm

9

Step 9 of 10

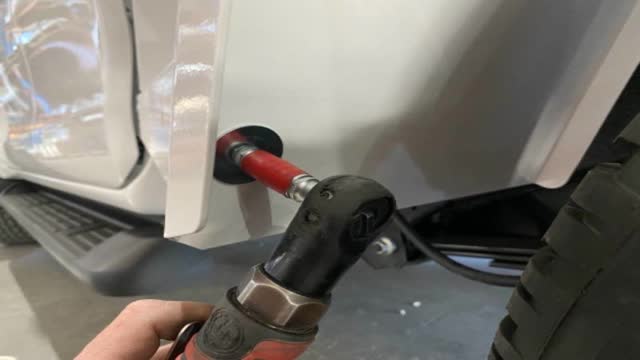

<p>10mm, inside of guard</p>

10mm, inside of guard

10

Step 10 of 10

Looks like this when done
