Knowby Rosemount Ag
Knowby
Clean disc filter
1
Step 1 of 21

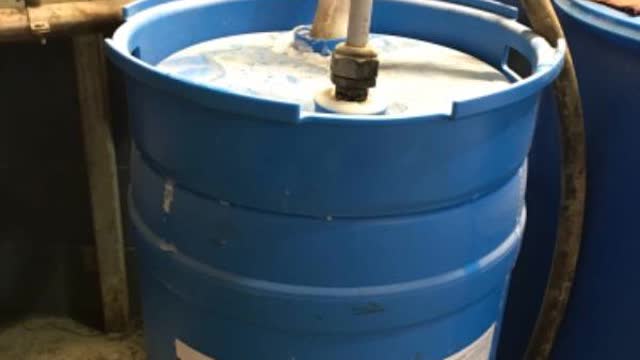

<p>Get one pump of chloridet into a bucket</p>

Get one pump of chloridet into a bucket

2
Step 2 of 21

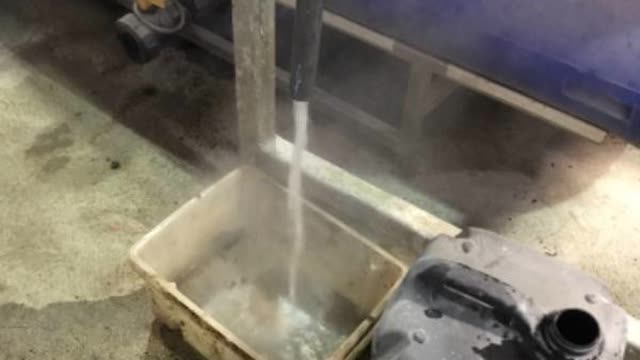

<p>Fill the bucket up to half full with hot water</p>

Fill the bucket up to half full with hot water

3
Step 3 of 21

Fill rest of bucket with cold water so bucket has a bit of chloridet and warm water

4
Step 4 of 21

Go into workshop and turn the blue tap off near disc filter and make sure pump turns off

5
Step 5 of 21

Use screw driver to undo the collar on disc filter

6
Step 6 of 21

Take top off filter

7
Step 7 of 21

Use pipe wrench to take the disc cylinder off holder

8
Step 8 of 21

Take top out of filter

9
Step 9 of 21

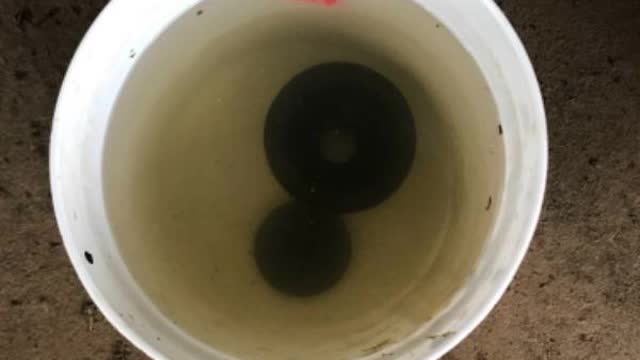

<p>Place the tops in your bucket of chloridet</p>

Place the tops in your bucket of chloridet

10
Step 10 of 21

IMPORTANT: the discs all come off the same way and go back on the same way.

11
Step 11 of 21

Use rope to loop disc filters onto keeping them the same way they come off.

12
Step 12 of 21

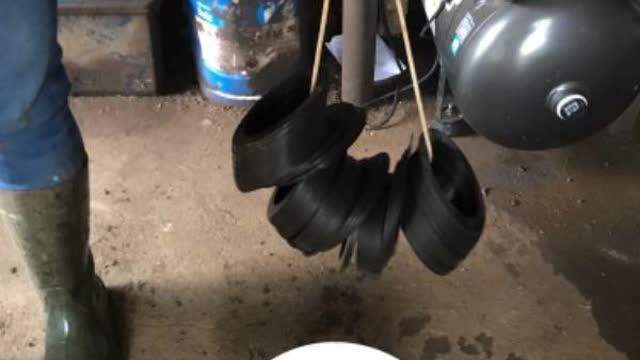

<p>Tie string up remembering which end is which</p>

Tie string up remembering which end is which

13
Step 13 of 21

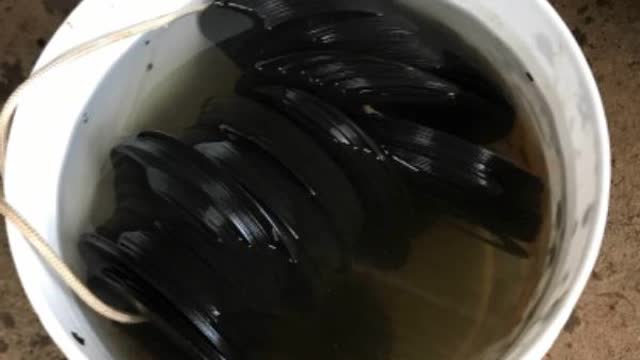

<p>Let filters soak for 10mins and then individually clean each filter by hand</p>

Let filters soak for 10mins and then individually clean each filter by hand

14
Step 14 of 21

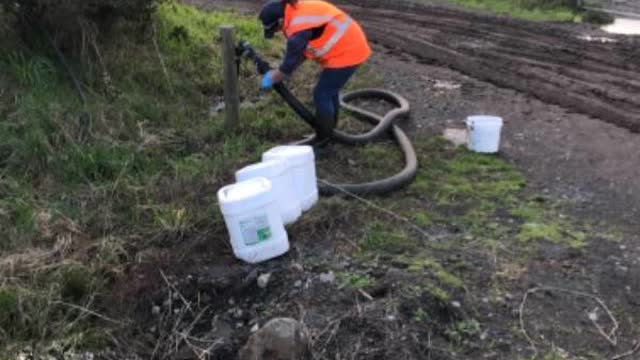

<p>Take bucket to the spray fill point</p>

Take bucket to the spray fill point

15
Step 15 of 21

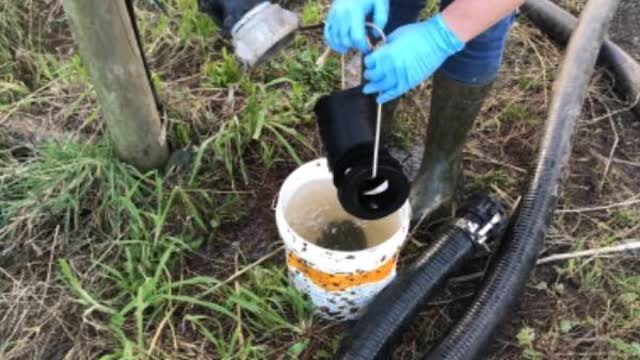

<p>Rinse out filter pieces once you’ve emptied and refilled your bucket</p>

Rinse out filter pieces once you’ve emptied and refilled your bucket

16
Step 16 of 21

Tie string back onto pipe and put filters back on

17
Step 17 of 21

Put cap back on

18
Step 18 of 21

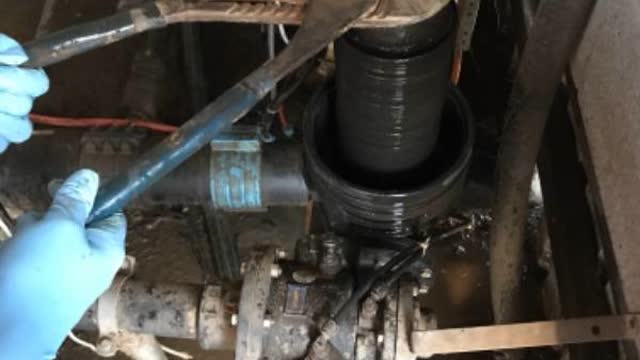

<p>Use wrench to tighten up but Don’t overtighten it</p>

Use wrench to tighten up but Don’t overtighten it

19
Step 19 of 21

When putting lid back on make sure rubber seal is sitting properly

20
Step 20 of 21

Put lid back on and tighten collar

21
Step 21 of 21

Open up water tap and turn pump on
