TC - Hilux Fuel Filler Setup
How to setup a Hilux Trailcore Fuel Filler.
How to setup a Hilux Trailcore Fuel Filler.
1
Step 1 of 2

Parts:

  • Fuel Filler Pipe: Fuel Pipe (PRT-007487)
  • Small Rubber Tubing (Breather)
  • Large Hose Clamp x 2
  • Small Hose Clamp x 2
2
Step 2 of 2
<p>Remove the existing fuel filler pipe that come</p> <p>attached to the vehicle.</p> <p>Place a large hose clamp over provided Fuel Filler Pipe. Install the pipe to the fuel tank as shown.</p> <p>Tighten the hose clamp to ensure a secure connection.</p>

Remove the existing fuel filler pipe that come

attached to the vehicle.

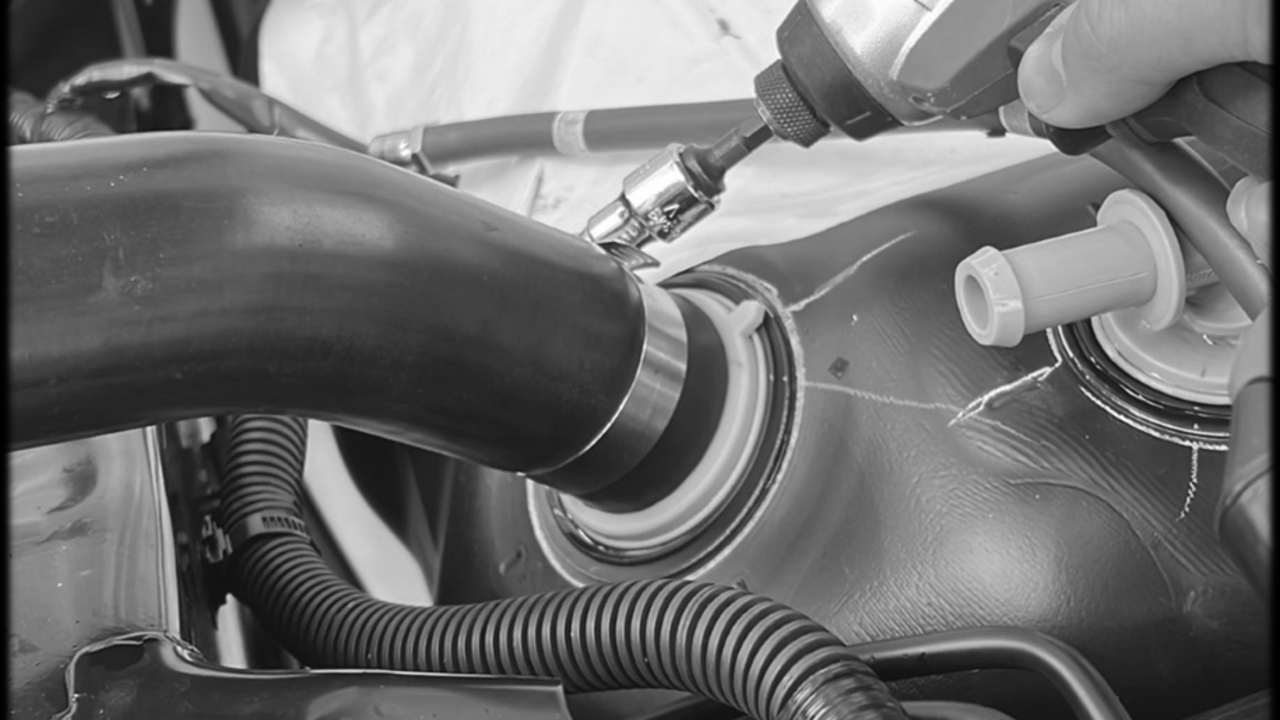

Place a large hose clamp over provided Fuel Filler Pipe. Install the pipe to the fuel tank as shown.

Tighten the hose clamp to ensure a secure connection.
