Dance Floor (Disassembly)
How to disassemble the Centrepiece dance floor
How to disassemble the Centrepiece dance floor
1
Step 1 of 11

Setup

Requirements

  • 2 people (minimum)

  • 3 people (recommended)

Equipment

  • Dance Floor Panel and Edge Stillage

  • Panel Locking Tool

PPE

  • Steel Cap Boots

  • Hi-Vis Vest

2
Step 2 of 11
<h1><strong>Position Dance Floor Stillage(s)</strong></h1><p></p><p>Roll the stillage into place next to the work space.</p>

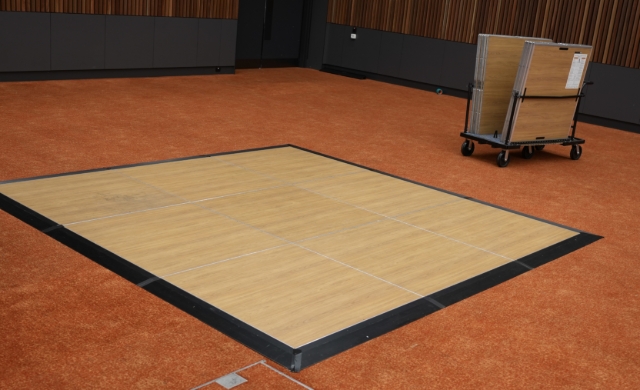

Position Dance Floor Stillage(s)

Roll the stillage into place next to the work space.

3
Step 3 of 11

Remove Gaffer Tape

Remove the gaffer tape covering the edge seams.

4
Step 4 of 11

Remove Edge Pieces

Use the locking tool to unlock the edge pieces from the dance floor panels and remove them.

5
Step 5 of 11
<h1>Pro Tip: Lock Location</h1><p></p><p>The locks are on the female side of the edge pieces and dance floor panels.</p>

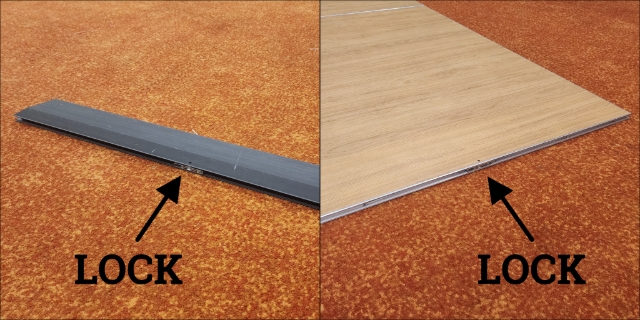

Pro Tip: Lock Location

The locks are on the female side of the edge pieces and dance floor panels.

6
Step 6 of 11

Store Edge Pieces

Carefully place the edge pieces into the back of the stillage.

7
Step 7 of 11

Remove Floor Panels

Use the locking tool to unlock each floor panel and remove it.

Start from one corner and remove them one row at a time.

8
Step 8 of 11

Store Floor Panels

Place floor panels into the stillage correctly oriented, closely packed and alternating sides (see following steps).

9
Step 9 of 11
<h1>Pro Tip: Floor Panel Orientation</h1><p></p><p>Store the panels oriented so that the stickers face outward from the stillage and are at the top.</p>

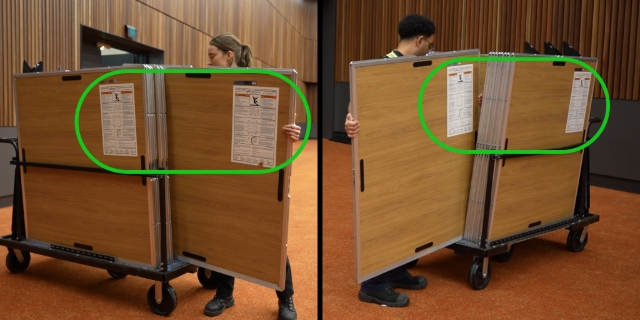

Pro Tip: Floor Panel Orientation

Store the panels oriented so that the stickers face outward from the stillage and are at the top.

10
Step 10 of 11
<h1>Pro Tip: Panel Packing</h1><p></p><p>Leave a small gap between the floor panels and stillage side.</p><p>Ensure the floor panels are packed close together at the bottom.</p>

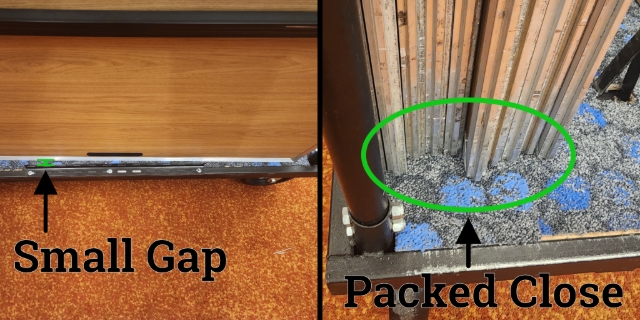

Pro Tip: Panel Packing

Leave a small gap between the floor panels and stillage side.

Ensure the floor panels are packed close together at the bottom.

11
Step 11 of 11

Pro Tip: Alternate Sides

When storing the dance floor panels alternate the sides as you place them to keep the stillage balanced.
