Power failed

Knowby

Power failed

Starting genset

Starting genset

1

Step 1 of 15

Turn off isolation switch

2

Step 2 of 15

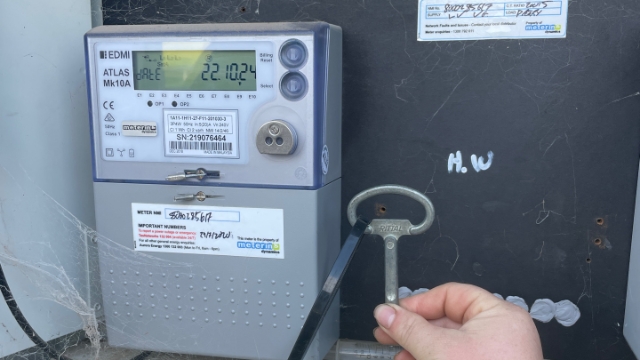

<p>Get key and check no display on meter</p>

Get key and check no display on meter

3

Step 3 of 15

Be careful opening doors

4

Step 4 of 15

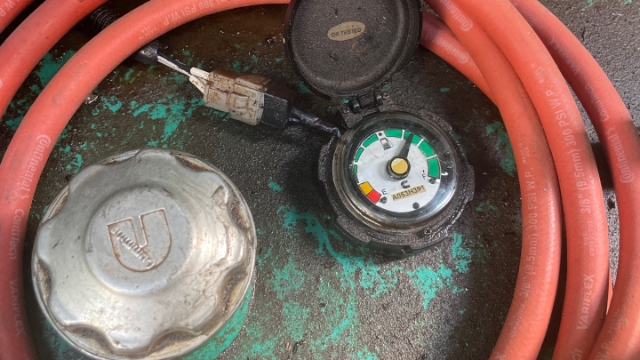

<p>Check fuel,</p>

Check fuel,

5

Step 5 of 15

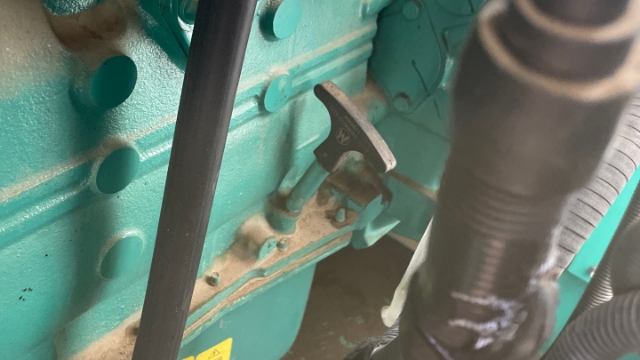

<p>Check oil</p>

Check oil

6

Step 6 of 15

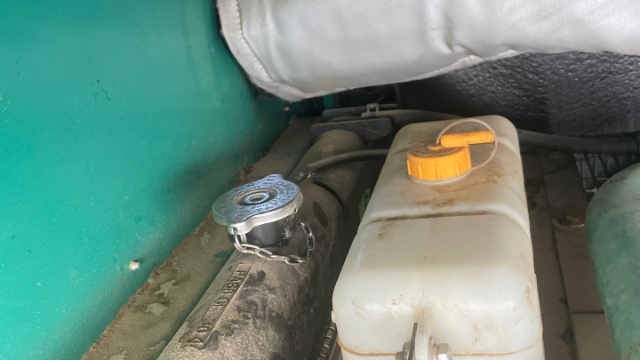

<p>Check coolant level</p>

Check coolant level

7

Step 7 of 15

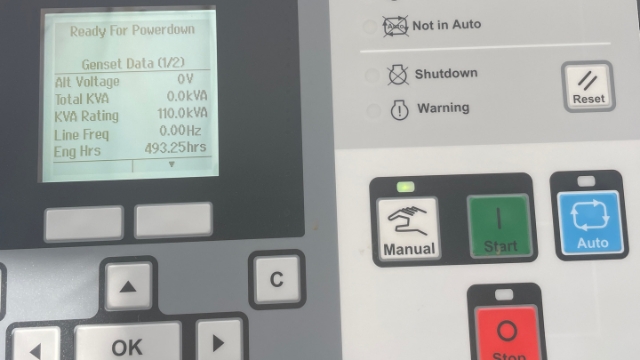

<p>Hit manual till green light comes on and press start</p>

Hit manual till green light comes on and press start

8

Step 8 of 15

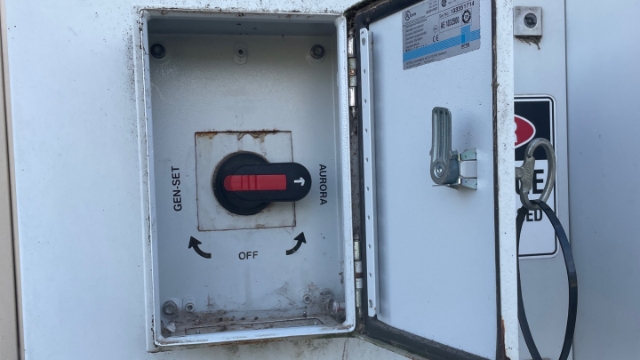

<p>Make sure you have the key for the change over switch box</p>

Make sure you have the key for the change over switch box

9

Step 9 of 15

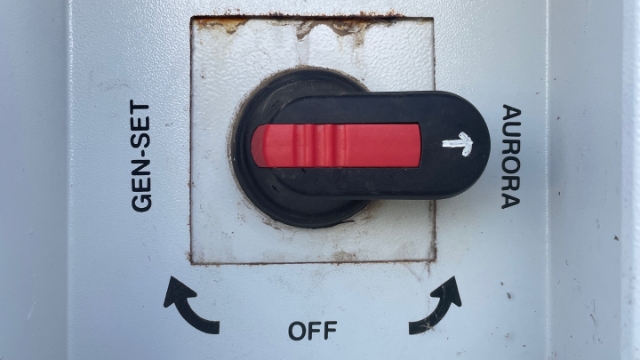

<p>Turn to off and wait 5 seconds before turning to genset</p>

Turn to off and wait 5 seconds before turning to genset

10

Step 10 of 15

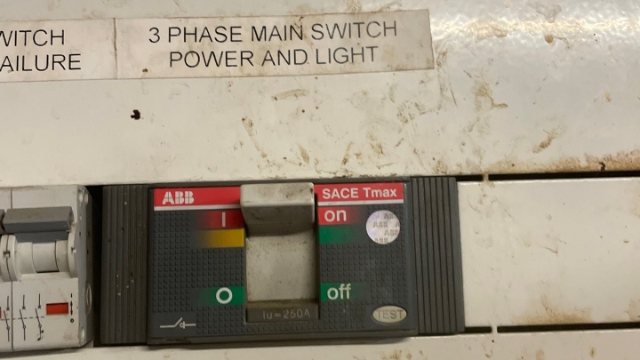

<p>put the switch back into this postion</p>

put the switch back into this postion

11

Step 11 of 15

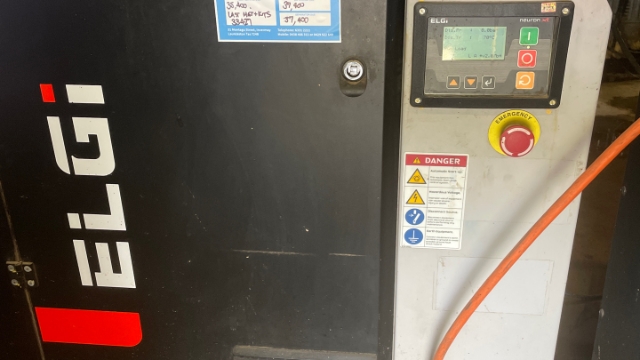

<p>Make sure elgi starts up, if not press green start button</p>

Make sure elgi starts up, if not press green start button

12

Step 12 of 15

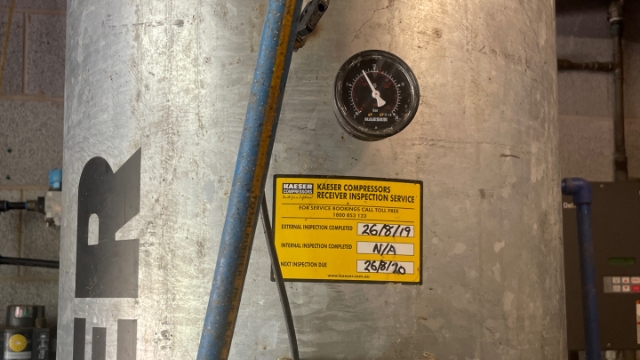

<p>Can’t restart the robots until the comperssed resivar tank is at 6.5 bar if this is not happening refer to the compressed air tank knowby.</p>

Can’t restart the robots until the comperssed resivar tank is at 6.5 bar if this is not happening refer to the compressed air tank knowby.

13

Step 13 of 15

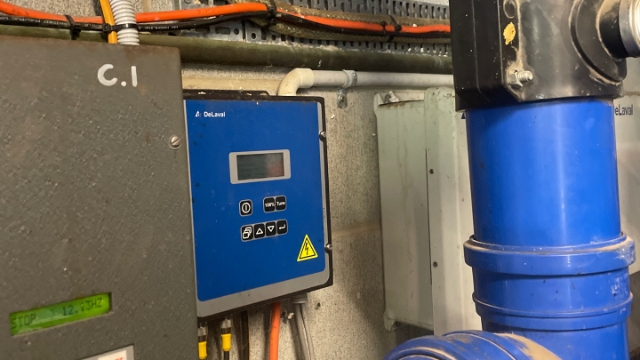

<p>If no vaccum press the power switch near vaccum pumps this should start up automaticly</p>

If no vaccum press the power switch near vaccum pumps this should start up automaticly

14

Step 14 of 15

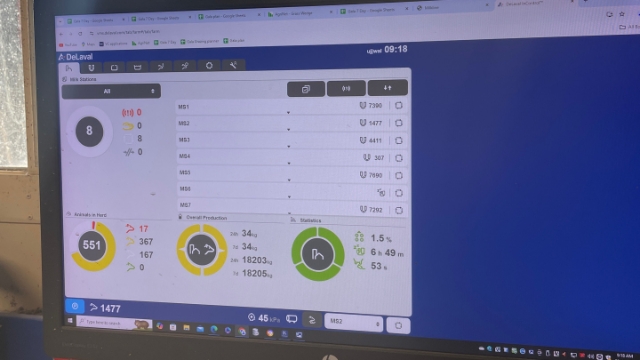

<p>Go to the the delaval incontrol page</p>
<p>And individually put all robots into atuomatic mode. (Clear any alarms)</p>

Go to the the delaval incontrol page

And individually put all robots into atuomatic mode. (Clear any alarms)

15

Step 15 of 15

you should be able to continue as per usal
