Tub Removal, Nissan Navara NP300

Knowby

Tub Removal, Nissan Navara NP300

1

Step 1 of 24

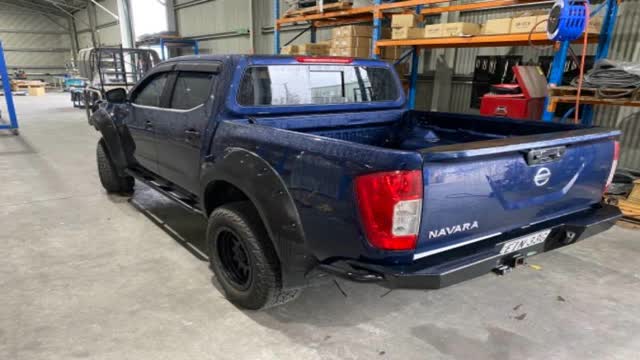

<p>Vehicle looks like this.</p>
<p>Use same instruction for both Dual Cab and Extra Cab models</p>

Vehicle looks like this.

Use same instruction for both Dual Cab and Extra Cab models

2

Step 2 of 24

It will look like this when removed

3

Step 3 of 24

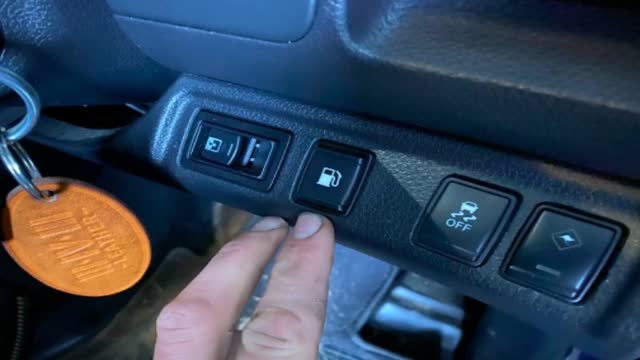

<p>Release Fuel button</p>

Release Fuel button

4

Step 4 of 24

Remove fuel cap

5

Step 5 of 24

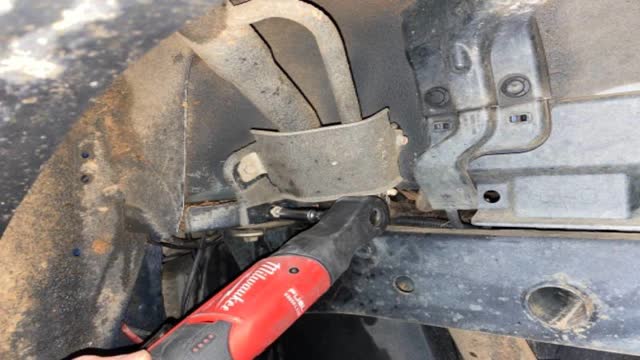

<p>Remove bracket, 10mm</p>

Remove bracket, 10mm

6

Step 6 of 24

Should now be loose

7

Step 7 of 24

14mm front Mount

(repeat other side)

8

Step 8 of 24

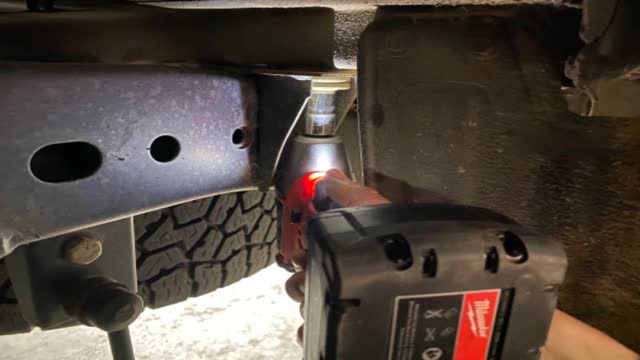

<p>Middle and Rear Mounts, 14mm</p>
<p>(repeat other side)</p>

Middle and Rear Mounts, 14mm

(repeat other side)

9

Step 9 of 24

Remove tailgate Cover, Phillips Head driver

10

Step 10 of 24

2 x 10mm bolt to remove camera

**Use Extension

11

Step 11 of 24

Pull and unplug harness

12

Step 12 of 24

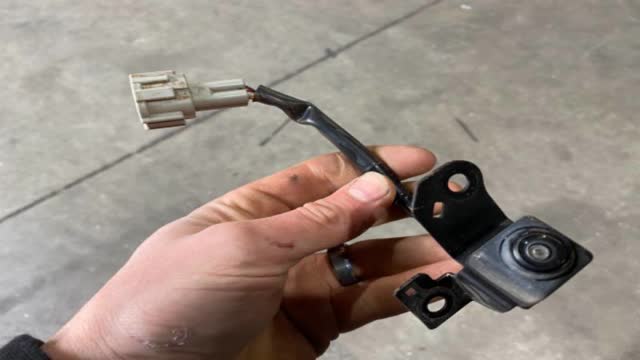

<p>The removed harness looks like this</p>

The removed harness looks like this

13

Step 13 of 24

Remove harness from tailgate - feed it back through the tub

14

Step 14 of 24

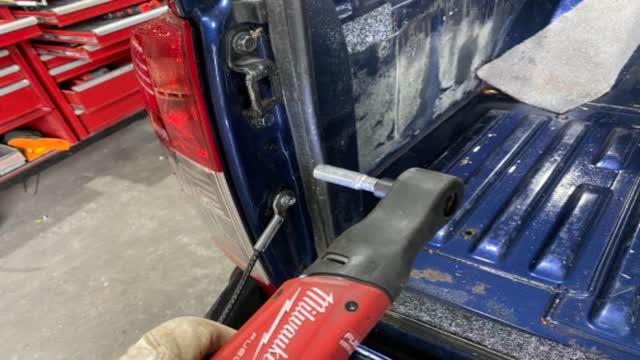

<p>10mm to remove tail lights</p>

10mm to remove tail lights

15

Step 15 of 24

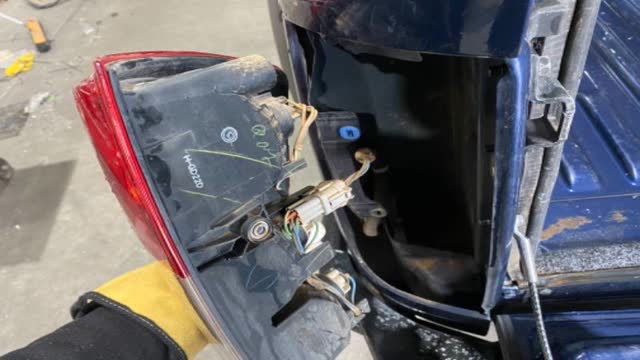

<p>They will pop out, unplug the harness</p>

They will pop out, unplug the harness

16

Step 16 of 24

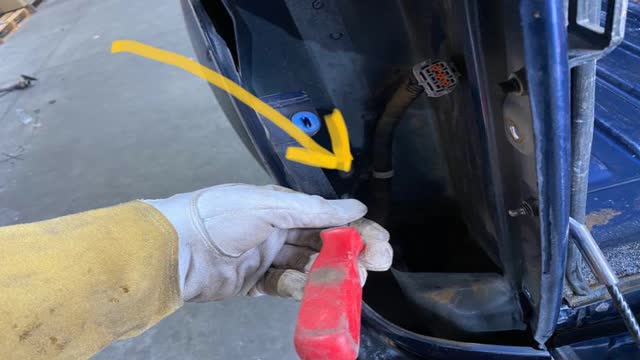

<p>Remove clip which holds the harness to the tub</p>

Remove clip which holds the harness to the tub

17

Step 17 of 24

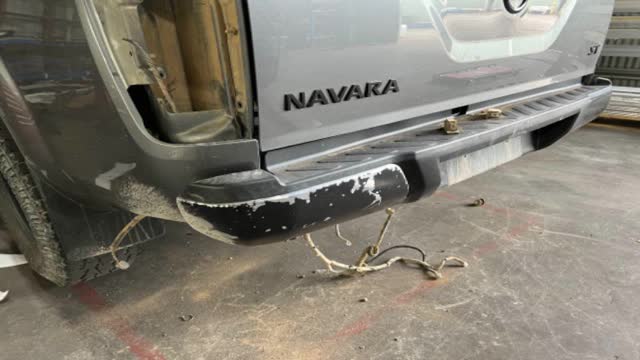

<p>Bumper</p>

Bumper

18

Step 18 of 24

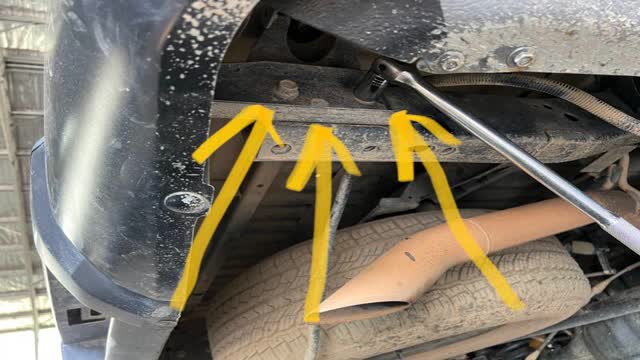

<p>TIGHT!
Use 17mm breaker</p>

TIGHT! Use 17mm breaker

19

Step 19 of 24

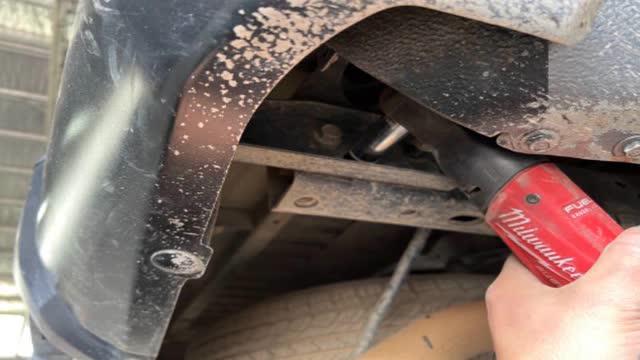

<p>Undo with 17mm</p>

Undo with 17mm

20

Step 20 of 24

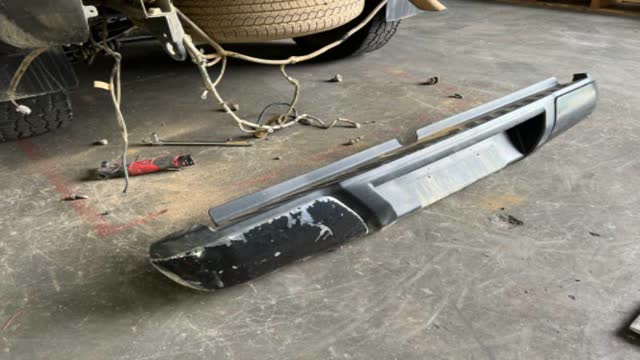

<p>Remove bumper</p>

Remove bumper

21

Step 21 of 24

Remove inner plastic on passenger side wheel arch

22

Step 22 of 24

Unplug

23

Step 23 of 24

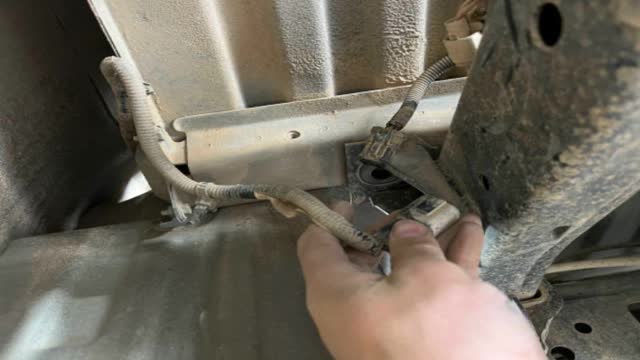

<p>Unplug behind passenger side wheel arch</p>

Unplug behind passenger side wheel arch

24

Step 24 of 24

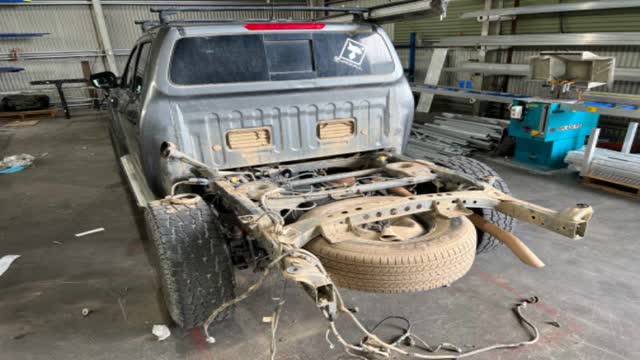

<p>Lift off</p>

Lift off
