Re-Fit Camera: NP300 Navara, with Tub

Knowby

Re-Fit Camera: NP300 Navara, with Tub

1

Step 1 of 17

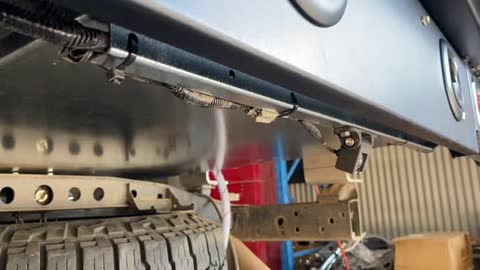

Looks like this when done

2

Step 2 of 17

Identify supplied bracket

It will say CB003 on it

3

Step 3 of 17

Identify camera and harness

4

Step 4 of 17

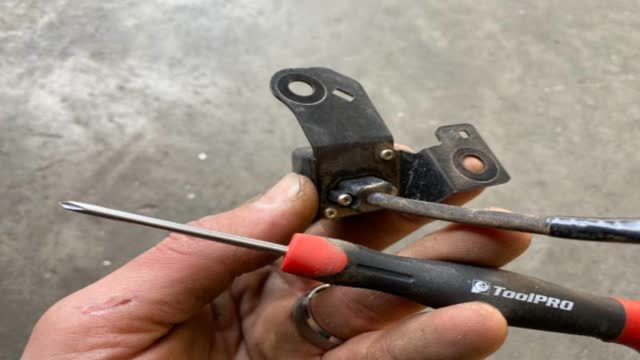

<p>Phillips to remove</p>

Phillips to remove

5

Step 5 of 17

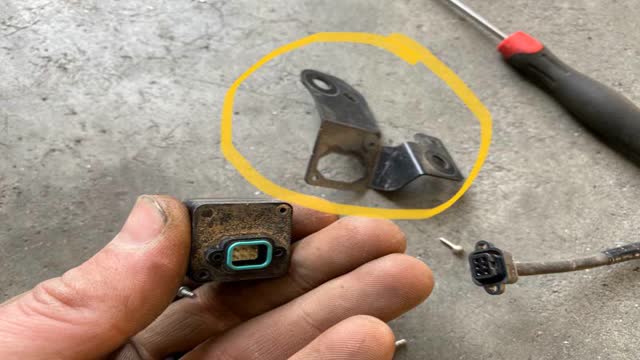

<p>Discard original</p>

Discard original

6

Step 6 of 17

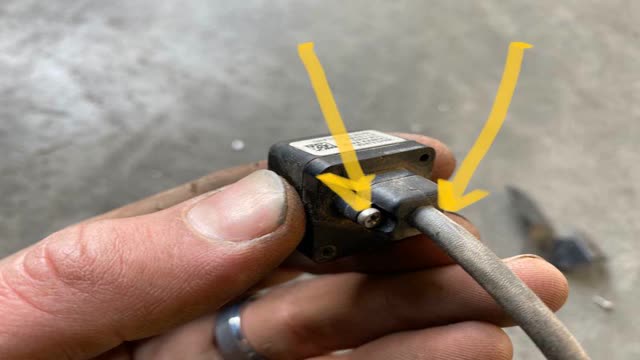

<p>Refit original screws</p>

Refit original screws

7

Step 7 of 17

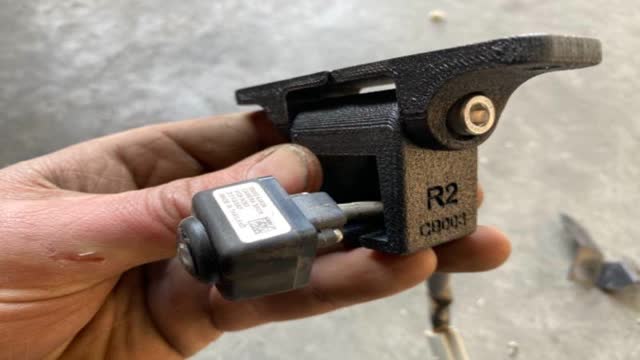

<p>Sticker to top</p>

Sticker to top

8

Step 8 of 17

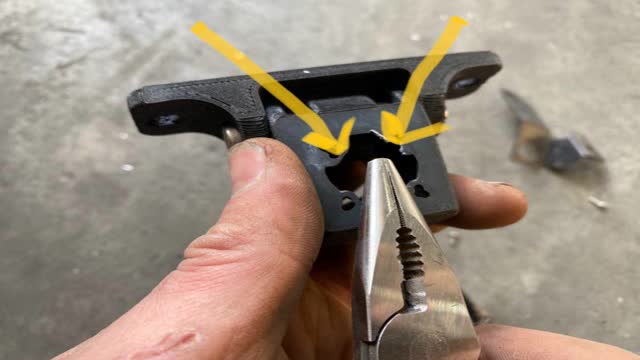

<p>Break away</p>

Break away

9

Step 9 of 17

Fits in like this

10

Step 10 of 17

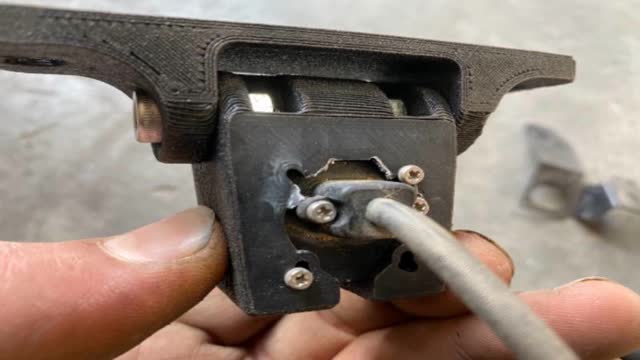

<p>Add 2 screws to back</p>

Add 2 screws to back

11

Step 11 of 17

Fit to tray

12

Step 12 of 17

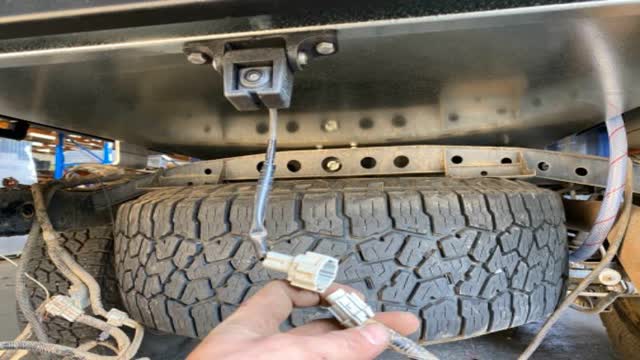

<p>Plug in harness</p>

Plug in harness

13

Step 13 of 17

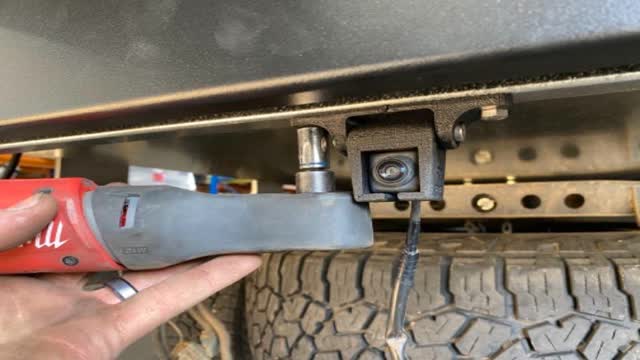

<p>10mm</p>

10mm

14

Step 14 of 17

Angle bracket

15

Step 15 of 17

Check reverse, adjust if required

16

Step 16 of 17

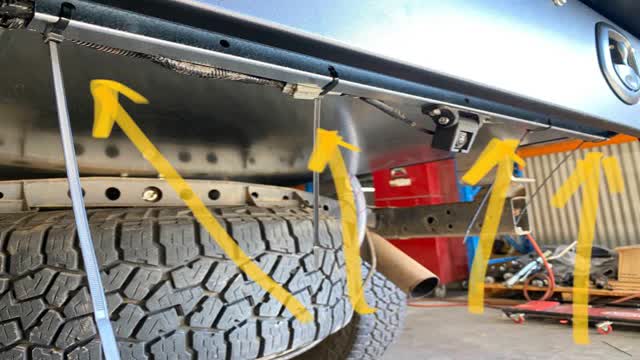

<p>Zip tie neatly</p>

Zip tie neatly

17

Step 17 of 17

Looks like this when done
