Instruction is almost identical between the Dual Cab and Single Cab variants. Only difference is that hoses are longer on the Single Cab.

The below instruction show fitting on a Dual Cab

Remove the original fuel filler and hose from the factory tank.

Easiest to do this before fitting Tray to vehicle

Identify the original delivery hose, remove sheath

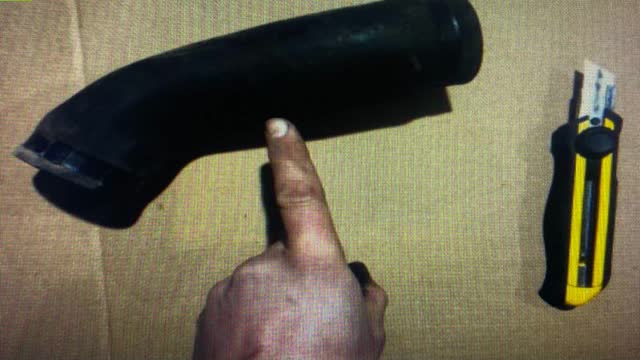

Original delivery hose will be used. Cut original hose in half

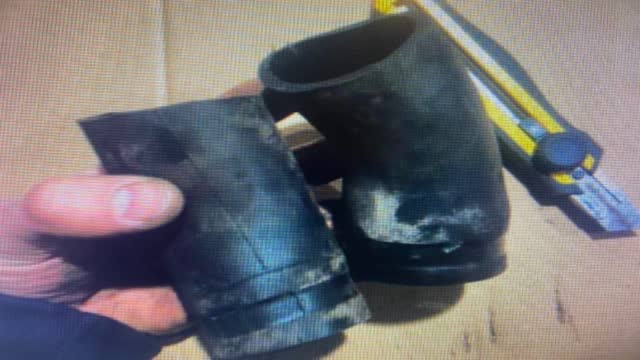

Should look like this when cut.

We will reuse the the "elbow" section (not the straight section)

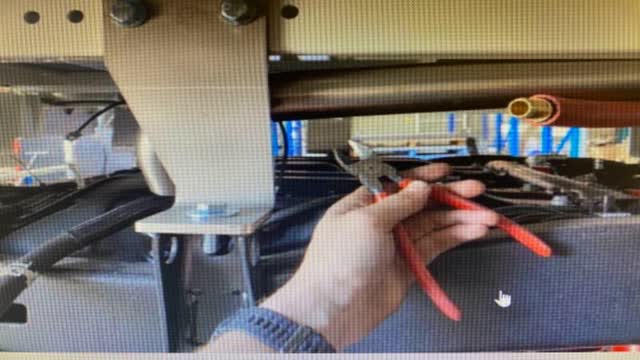

Cut zip ties which hold the stainless pipe up during transport.

Cut them, then the stainless pipe will drop down near the tank

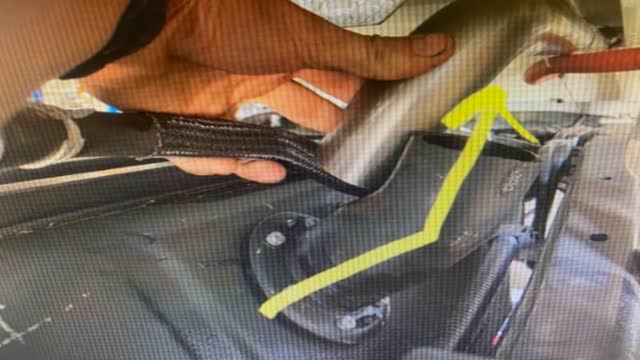

Fit elbow so it points straight up

Slide 2 x original hose clamps on. Push together

Important to get this right. Wiggle to desired location

IMPORTANT Slopes downwards towards tank as much as possible

Should look like this

Tighten clamps, 10mm socket

The clamp MUST be on a straight section of pipe, not “on the corner” as the clamp will not seal correctly and the system will leak!

When positioned correctly, you will have a clear gap between the pipe and tray mount

Connect breather (pliers for clamp) and zip tie to main hose. Trim zip ties neatly

On a single cab vehicle, it will look like this
