CHASSIS MOUNTS, D-MAX/BT-50 DC
1
Step 1 of 14
2
Step 2 of 14

Contents (Click to view)

​STEP 3: Components List​

​STEP 8: Tools List​

​STEP 9: Torque Values​

​STEP 10: Hole Diagram​

​STEP 11: Chassis Mounts​

​STEP 14: QA Sheet​

3
Step 3 of 14
<p>Components</p>

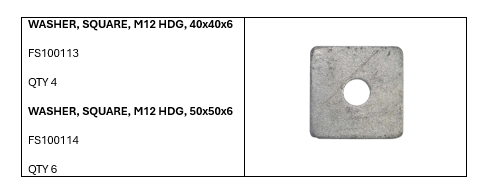

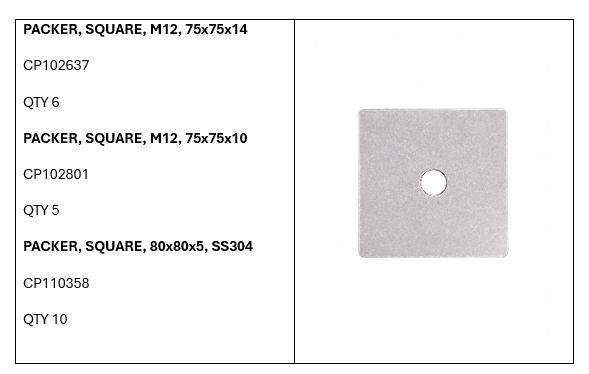

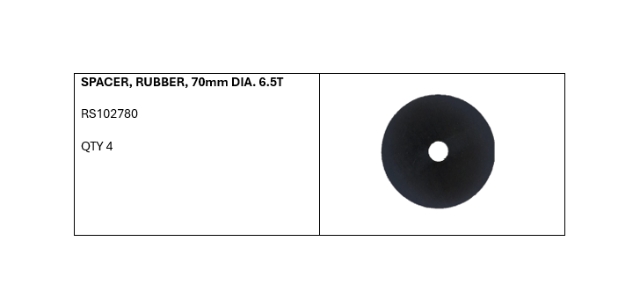

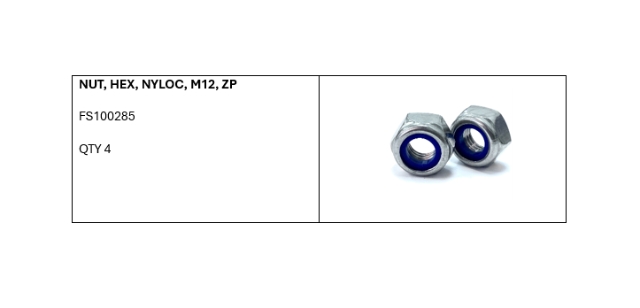

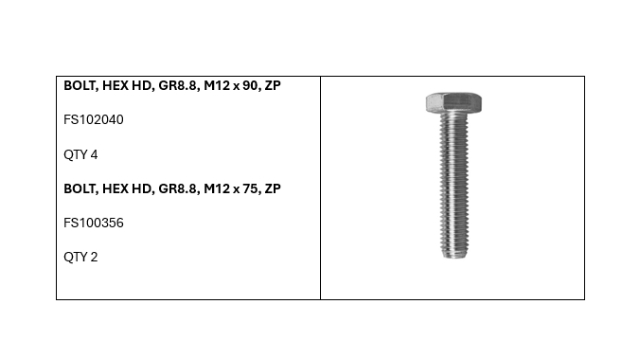

Components

4
Step 4 of 14
5
Step 5 of 14
6
Step 6 of 14
7
Step 7 of 14
8
Step 8 of 14
<p>Tools List</p>

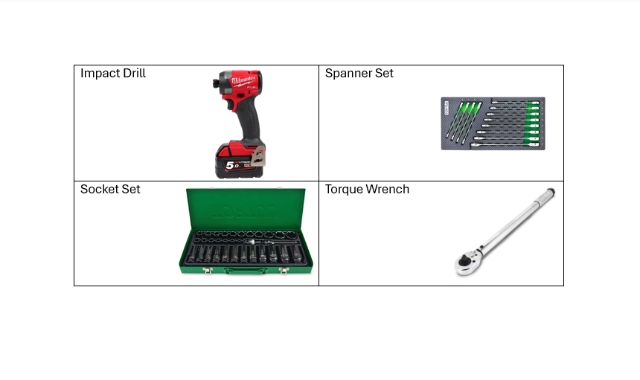

Tools List

9
Step 9 of 14
<p>Torque Values</p>

Torque Values

10
Step 10 of 14
<p>Diagram of Hole Placing.</p>

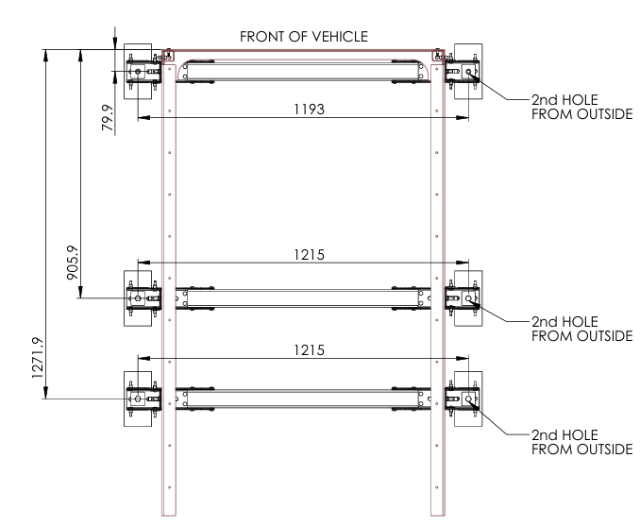

Diagram of Hole Placing.

11
Step 11 of 14
<p>D-MAX/BT-50 DC FRONT</p><p>Distance to the front of the chassis: 79.9mm</p><p>Bolt hole: Second hole from outside</p>

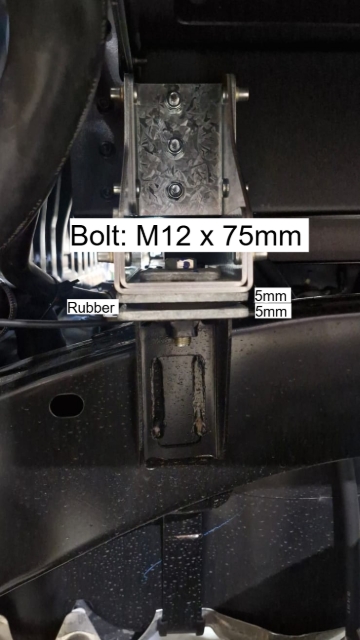

D-MAX/BT-50 DC FRONT

Distance to the front of the chassis: 79.9mm

Bolt hole: Second hole from outside

12
Step 12 of 14
<p>D-MAX/BT/50 DC Middle</p><p>Distance to the front of chassis: 905.9mm</p><p>Bolt hole: Second hole from outside</p>

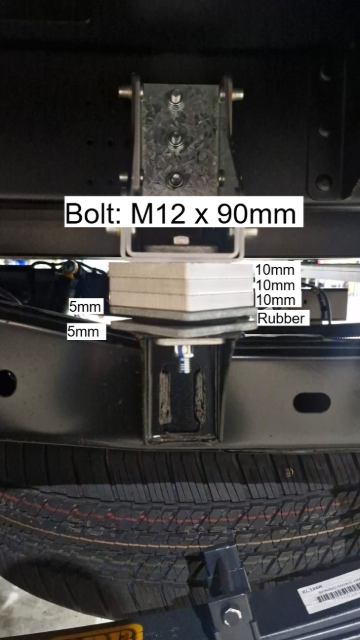

D-MAX/BT/50 DC Middle

Distance to the front of chassis: 905.9mm

Bolt hole: Second hole from outside

13
Step 13 of 14
<p>D-MAX/BT-50 DC Back</p><p>Distance from the front of chassis: 1271.9mm</p><p>Bolt hole: Second hole from the outside</p>

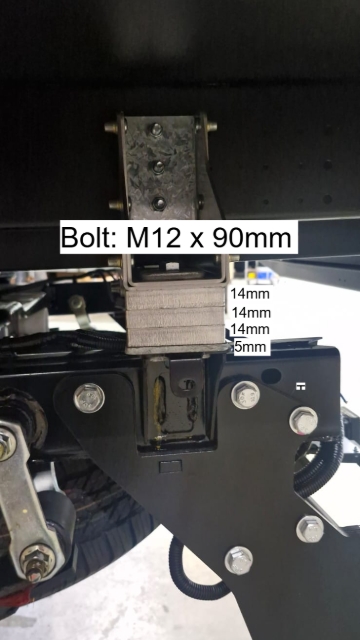

D-MAX/BT-50 DC Back

Distance from the front of chassis: 1271.9mm

Bolt hole: Second hole from the outside

14
Step 14 of 14
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
