xMounts Layout, “XXL” Amarok
1
Step 1 of 6Mounts should be laid out as shown below.
There is no need to drill any holes.
2
Step 2 of 6

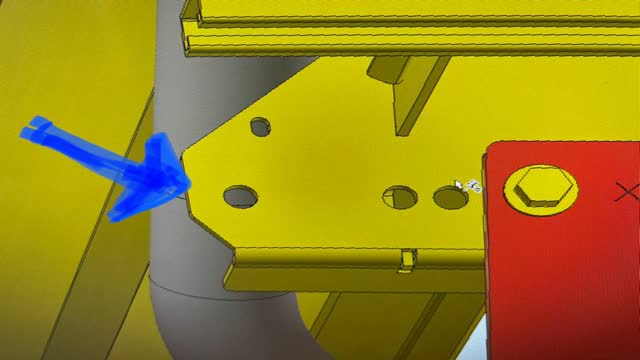

All measurements are taken from the FRONT of the Trays “Chassis Rail” as shown with Blue Arrow
3
Step 3 of 6

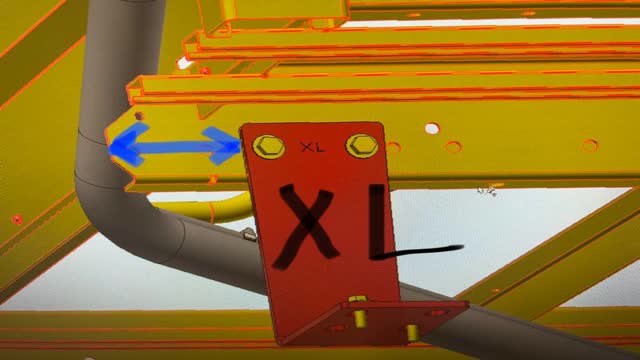

Front mount is marked “XL” and is 112mm
(From front of chassis rail to front of mount)
4
Step 4 of 6

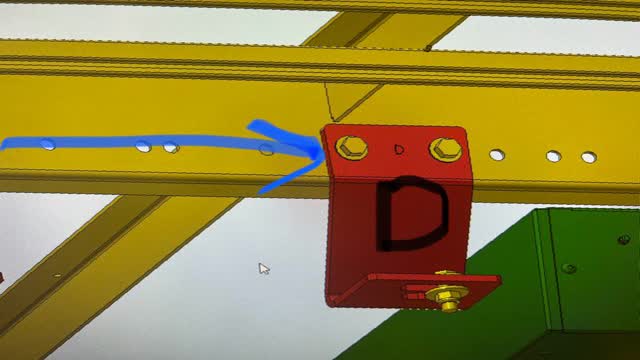

Second mount is marked “D” and is 639mm
(From front of chassis rail to front of mount)
5
Step 5 of 6

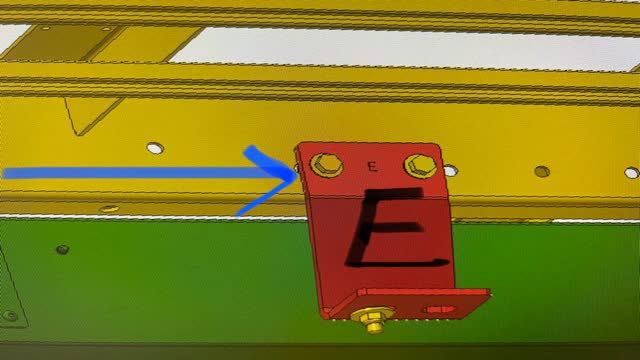

Third mount is marked “E” and is 1470mm
(From front of chassis rail to front of mount)
6
Step 6 of 6

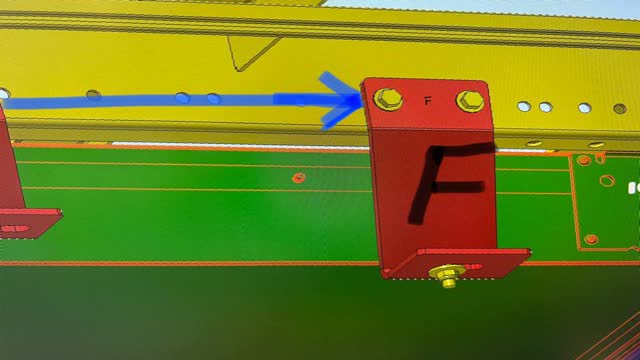

Fourth mount is marked “F” and is 1927mm
(From front of chassis rail to front of mount)
