Remove the start battery earth terminal.

Install the positive ring terminal from the M2 supplied vehicle harness to the start battery positive post

Install the earth ring terminal from the vehilce harness to the body earth

Remove the under body protection

Route the vehicle harness down the left hand chassis rail from the bonnet end towards the rear of the vehicle. Be sure to route away from sharp edges or any hot or moving parts

Route the vehicle harness down the left hand chassis rail from the bonnet end towards the rear of the vehicle. Be sure to route away from sharp edges or any hot or moving parts

Remove the plastic trim and door seal from the passengers foot well

Remove the glove box and trim

Pull back the passengers floor carpet and padding. Remove the blanking grommet in the floor. Route the M2 supplied interior harness through the hole in the floor until the attached grommet is installed in the floor hole.

Unplug the brown connector from the BLACK module behind the glove box (not the white module) install the brown male connector from the M2 supplied interior harness into the black module, plug the brown male connector from the vehicle into the brown female connector on the interior harness

Connect the fuse tap to the vehicle interior harness

Remove the 4th micro fuse down (15a) on the left side of the fuse box behind the glove box. Ensure the fuse orientation in the fuse tap are as per the video. This should be a ignition switched circuit for the door ajar buzzer and the ignition feed for the dcdc charger if applicable

Install the door ajar buzzer and connect to the interior harness

(NOTE)

Buzzer is not installed/connected for hardlid installations

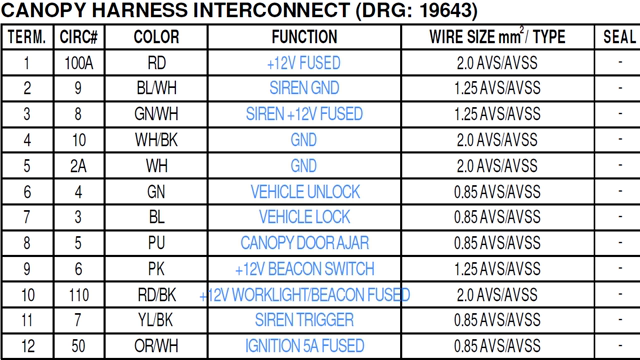

Use this with the step below

House the terminals in the 12 way connector using the table above for terminal location. (There are small numbers on the connector)

Secure the 12way connector to the headboard if you have one. If not, Secure excess under the vehicle like in step 17

Tuck away excess harness and secure to existing vehicle cabling with cable ties. Be sure to keep harness away from any sharp edges and hot or moving parts
