Blanking/Swaging Line Coil Change.

1

Step 1 of 40

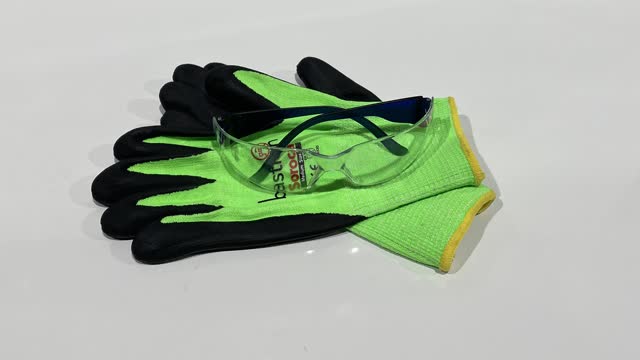

<p>Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves or safety glasses, please see the store person.</p>

Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves or safety glasses, please see the store person.

2

Step 2 of 40

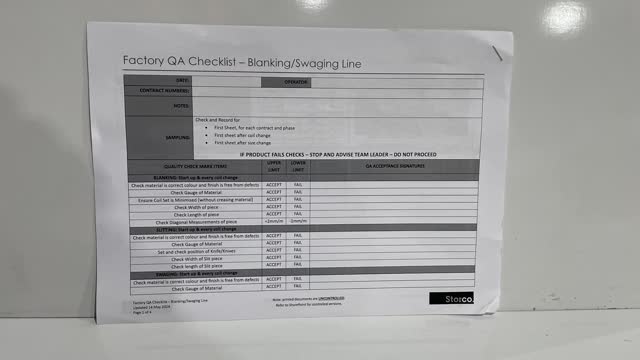

<p>QA Sheet. You will find a QA sheet at the machine, if there is no QA sheet there, see the team leader or production. A QA sheet will need to be completed at the start, throughout and, at the end of the day.</p>

QA Sheet. You will find a QA sheet at the machine, if there is no QA sheet there, see the team leader or production. A QA sheet will need to be completed at the start, throughout and, at the end of the day.

3

Step 3 of 40

Tools required. Knife and Forklift (You must have a forklift license to operate the forklift)

4

Step 4 of 40

A coil change could mean two different things on this machine. One, being you've run out of Coil, and Two, being you need to change the coil colour.

5

Step 5 of 40

Unwind both of the flattening rollers.

6

Step 6 of 40

If you've run out of coil, do these steps but instead of taking the coil off, all you'll need to do is take off the empty cardboard roll.

7

Step 7 of 40

Rewind your coil to take up the slack.

8

Step 8 of 40

Bring the Snubber wheel down.

9

Step 9 of 40

At the same time press the reverse button on the console and the hand held control.

10

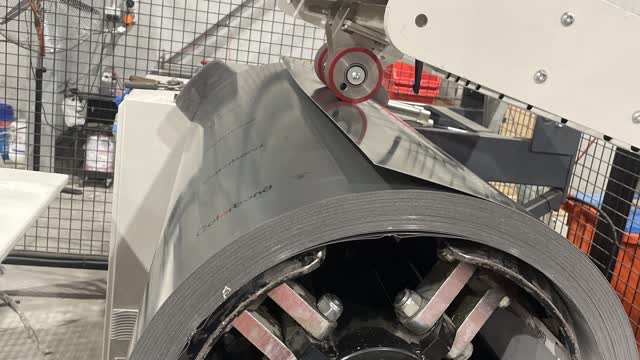

Step 10 of 40

Reverse coil until it looks like this.

11

Step 11 of 40

Lower the feed table.

12

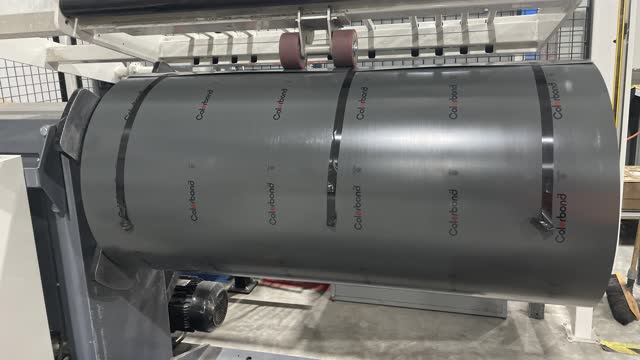

Step 12 of 40

Tape up the coil.

13

Step 13 of 40

Bring the snubber wheel up.

14

Step 14 of 40

Retract the mandrel.

15

Step 15 of 40

Using the forklift, lift the coil holder up and underneath the coil.

16

Step 16 of 40

Lift the coil off.

17

Step 17 of 40

Take the old coil away and bring the new coil over to the coil holder.

18

Step 18 of 40

Lift the new coil on.

19

Step 19 of 40

Remove the coil holder.

20

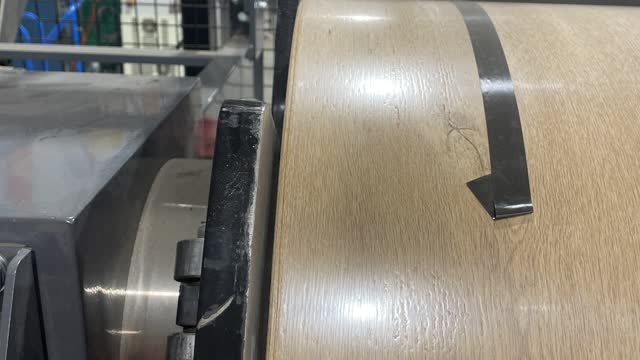

Step 20 of 40

Make sure the coil is as far back as it can go.

21

Step 21 of 40

Expand the mandrel.

22

Step 22 of 40

Bring the snubber wheel down.

23

Step 23 of 40

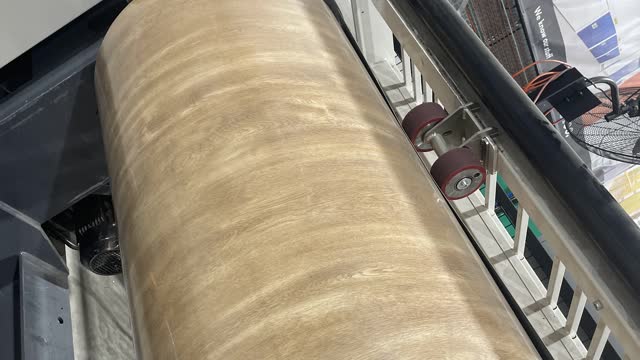

Remove the tape.

24

Step 24 of 40

Bring the Feed table up.

25

Step 25 of 40

Forward the coil into the machine.

26

Step 26 of 40

Move the sheet adjustment guide to make sure the coil is 'just' touching the rear guide.

27

Step 27 of 40

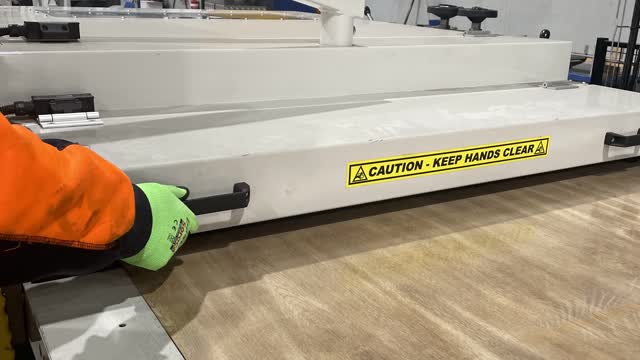

Make sure this cover is down

28

Step 28 of 40

Forward the coil again until it stops.

29

Step 29 of 40

Bring the coil forward again.

30

Step 30 of 40

Reverse the coil to remove the slack.

31

Step 31 of 40

Bring the snubber wheel up.

32

Step 32 of 40

Move the sheet adjustment guide, and tighten.

33

Step 33 of 40

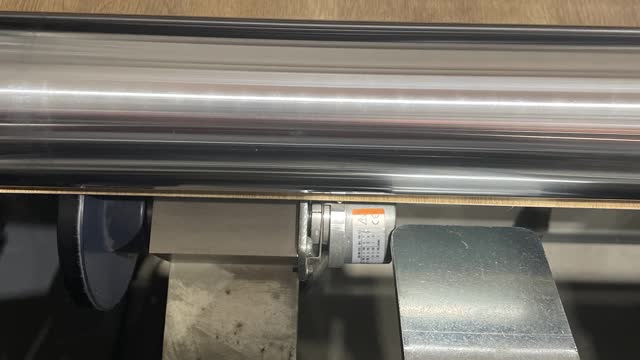

Reverse the coil to reset the counter. Make sure you can see the little orange line.

34

Step 34 of 40

Tighten the flattening rollers.

35

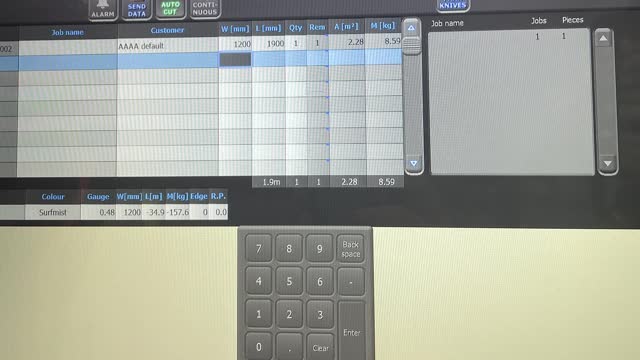

Step 35 of 40

Enter your information into the console.

36

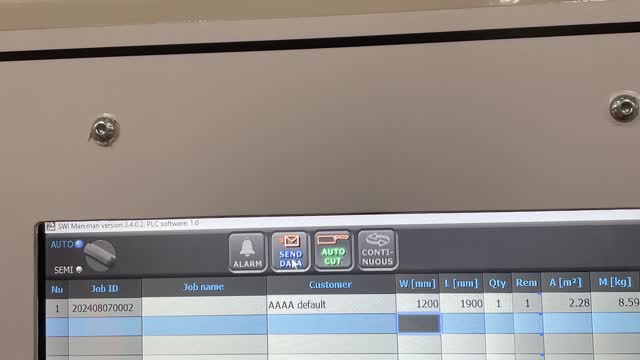

Step 36 of 40

Click on the Send Data button.

37

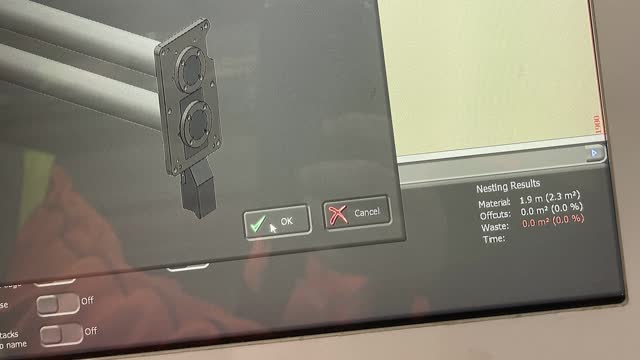

Step 37 of 40

Press Ok.

38

Step 38 of 40

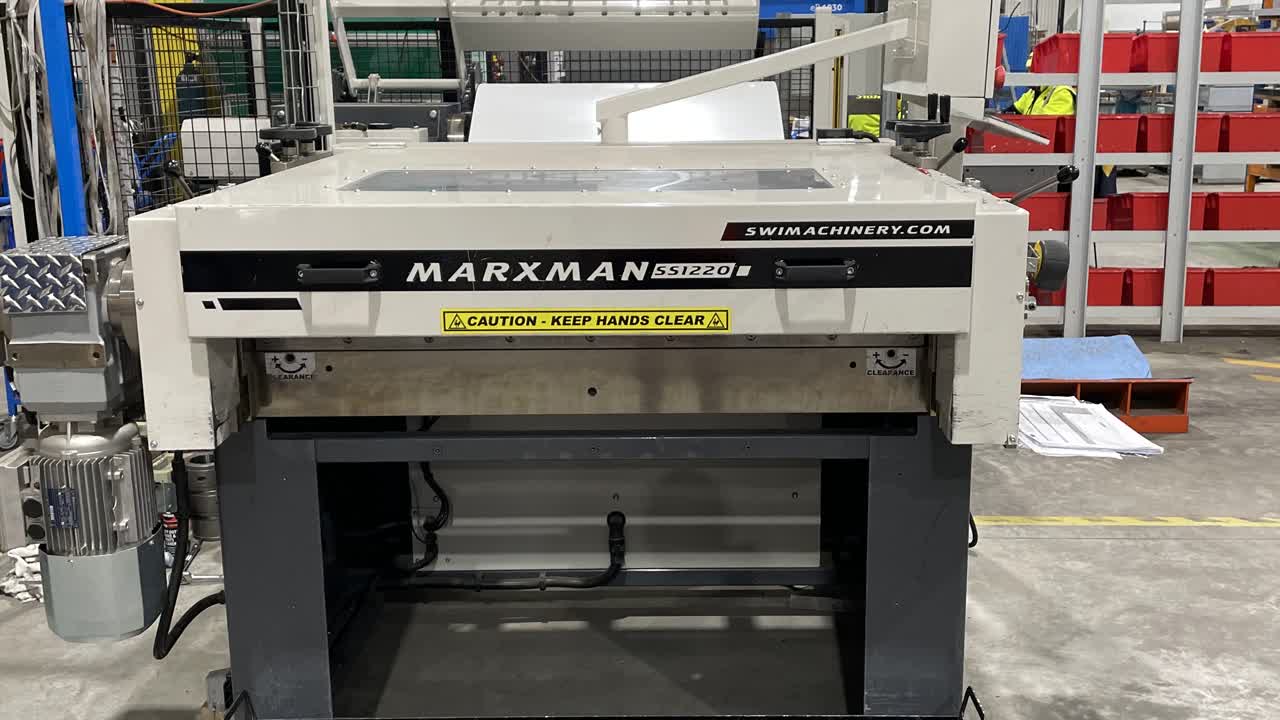

Jog the material forward until a small amount [5cm] is protruding from the guillotine.

39

Step 39 of 40

Press the white manual cut button.

40

Step 40 of 40

Blanking line is now ready to RUN.
