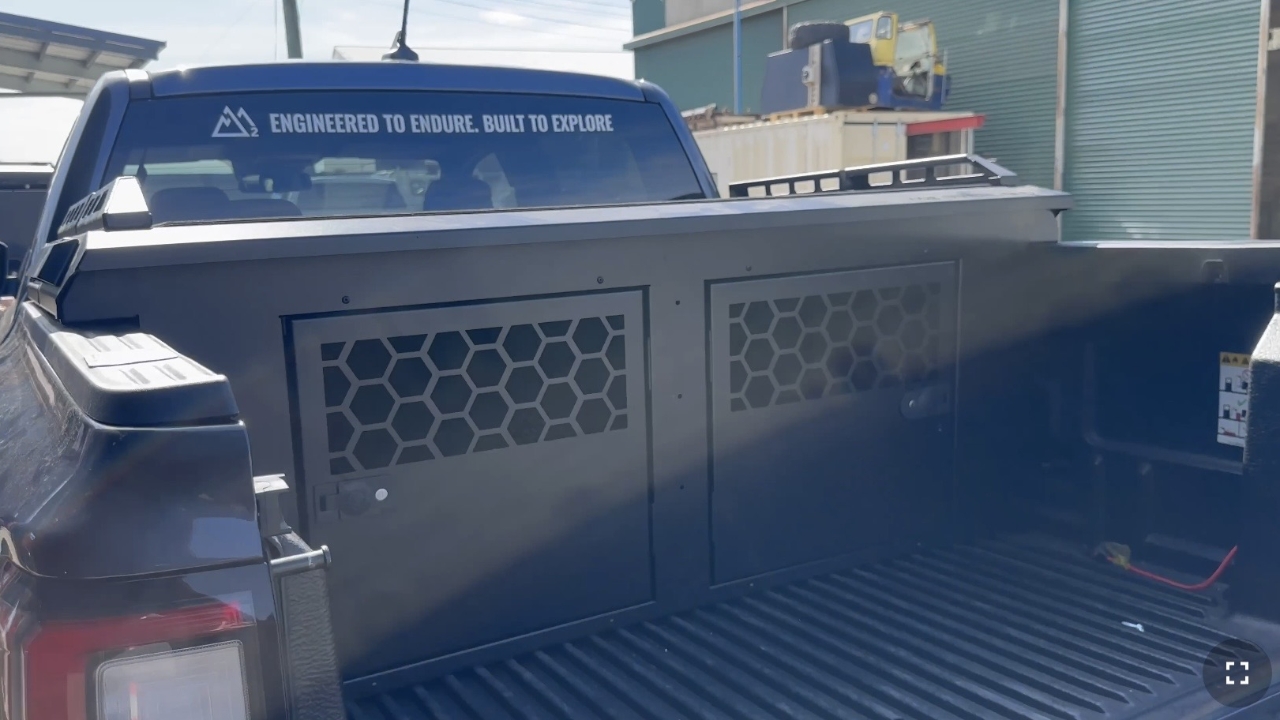

Take the front of the dog box and place it in the wellside.

Flip the body of the box up and fasten the divider down the Centre using M6x20 button top bolts.

Tighten the M6x 20 button heads

Open the passengers side storage box to access the other mounting points for the divider.

Lift the dog box body in to the wellside.

Ensure the body is square.

Lift the body and slide the front door panel underneath

Using M6x20 button heads, fasten the body to the front door panel.

Fasten the front door panel to the divider using M6x 20 button heads.

Take the hold down brackets and slot them in to the body of the box and behind the wellside trim.

Tighten the bolts

Fasten the other clamps to the dog box and wellside

Drill 8mm holes down the the fascia and wellside.

Continue drilling these holes down through the divider and wellside.

Place M8x25 botls through the holes you have just drilled.

Fasten M8 flanged nylocs underneath the wellside.
